In logistics and construction worldwide, a truck functions as a key piece of equipment. Its technical details have a direct effect on how much profit a company can make. A truck that lacks enough carrying power puts strain on components and often breaks weight regulations. On the other hand, one that is far larger than required uses extra fuel and locks up money that could serve other purposes.
Mastering the details of Gross Vehicle Weight (GVW), axle types, and body measurements separates successful fleets from those stuck with ongoing problems. At Chary Machinery, we specialize in providing high-performance trucks and customized solutions tailored to meet the specific needs of our clients.
The single most important number for fleet operators remains the gap between the truck’s empty weight and its highest permitted GVW. Payload—the cargo that brings in money—stands at the heart of earnings. To work out the real load a truck can handle, subtract the chassis weight from the maximum GVW. Consider a truck listed at 12,000kg GVW with a chassis that weighs 4,900kg. That combination provides a certain hauling range. A heavy prime mover rated for 50-ton total loads operates on a completely different scale.
The ability to carry weight depends not only on the total figure but also on how that weight presses down on the road. Axle choice stands out as a deciding factor.
l Single Reduction Axles: These perform well on smooth paved roads with moderate loads. They deliver reasonable fuel savings and allow quicker travel.
l Double Reduction Axles (Hub Reduction): Heavy cargo moving over broken ground or rough tracks needs these axles. They produce the pulling strength and long-term toughness required to handle difficult stretches.
l Steering vs. Drive Axles: Steering axles commonly carry ratings near 7,000kg. Rear drive axles in heavy-duty builds, by contrast, often support 18,000kg, so the truck stays balanced when fully loaded.
Wheelbase refers to the distance separating the front axle center from the rear axle center. That measurement controls the turning circle and overall steadiness. A shorter wheelbase of 3,260mm proves very useful in tight construction yards or narrow city streets. Longer wheelbases, around 5,800mm, suit trucks that run extended highway routes. They provide calmer handling and straighter tracking during fast travel.
Measurements involve more than length or width alone. The actual space inside the body matters most. The weight per cubic meter of the material sets the volume needed.
l High-Density Cargo: Sand, crushed stone, or soil fills a smaller, strongly reinforced box in a short time. That setup keeps the truck from exceeding weight limits.
l Low-Density Cargo: Farm produce, packaged lightweight items, or similar goods call for a bigger fenced or enclosed body. Operators can then load the full area before the weight reaches the maximum allowed.
Trucks that cover long distances between fixed locations need strong driver comfort and reliable road grip. Tractors in those roles normally include large fuel tanks of about 400L and transmissions with several gear steps. Those elements help keep steady speeds from 70 to 90 km/h while controlling fuel use. Mining operations and rough-site work, however, focus on the ability to climb sharp grades. Vehicles there frequently use 4x4 or 6x6 configurations to hold traction on loose gravel, sand, or muddy paths.
Trucks designed for city services or engineering projects match the demands of the specific task. Wheelbase length has to align with the size of attached equipment, whether water tanks, mixer drums, or similar units. Urban areas place strict limits on overall height and length because of bridges, tunnels, and narrow lanes. Those restrictions lead to shorter, more compact trucks that still carry meaningful loads for jobs such as street sweeping or vacuuming sewers.
Chary Machinery draws on more than 12 years of direct experience in the field. The company works as a trusted advisor, so clients choose vehicles that suit their operations precisely. Acting as a top-tier partner for well-known Chinese brands such as FAW, Chary Machinery supplies solutions built around practical gains for users.

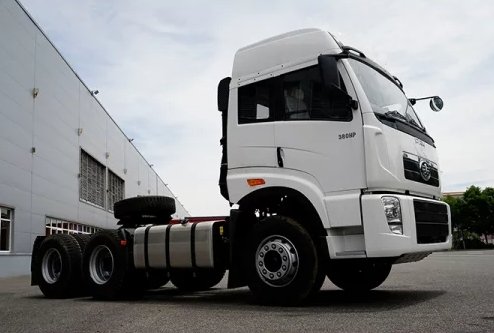

Firms that regularly move 40-ton to 50-ton combinations find the FAW 6x4 & 6x6 New J5P 340hp Tractor Head a solid performer.
l Drivetrain: The WP10.340E32 engine generates 340hp. It connects to an RTOD-11509F transmission that provides nine forward gears.
l Load Bearing: A reinforced 457 rear axle handles 18,000kg. The 90# fifth wheel links firmly to heavy semi-trailers.
l Efficiency: Road speed tops out at 107 km/h. A 400L fuel tank supports longer stretches between refueling stops.

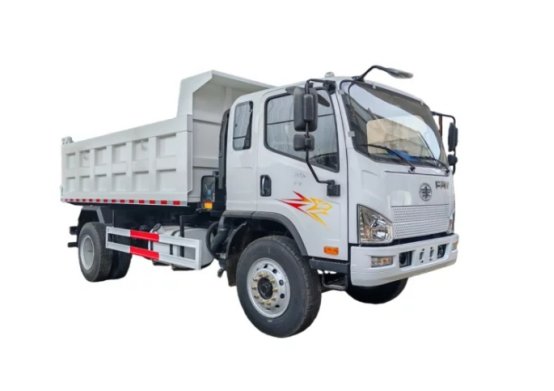

When sand and stone must move through crowded or restricted areas, the FAW Tiger VH (4x2/4x4) combines compact size with adequate strength.
l Capacity: Payload falls between 1 and 10 tons under a 9,000kg maximum GVW.
l Maneuverability: Overall length reaches 5,410mm with a 3,260mm wheelbase. Those dimensions allow access to places larger trucks cannot enter.
l Reliability: A Yuchai 130hp engine works together with a six-speed manual gearbox. The setup withstands repeated full-load cycles common on building sites.
Municipal upkeep and certain maintenance jobs place height and precise control at the forefront.
l Reach: Maximum working height measures 21 meters. The operating radius extends to 11 meters.
l Safety Technology: An imported German Hawe solenoid valve directs electro-hydraulic proportional movement. That system allows smooth, continuous speed changes and accurate positioning.
l Smart Features: A PLC control unit applies automatic limits to extension. The work platform turns ±90°, which improves both safety and ease during work at height.
Selecting the appropriate truck demands clear knowledge of weight ratings, physical size, and intended use. Chary Machinery covers every stage—from initial guidance and delivery coordination to ongoing parts availability—so fleets keep running without major interruptions. The company joins solid Chinese manufacturing with field-tested advice to support clients across many countries in meeting their objectives.
A: Single reduction axles suit highway runs with lighter cargo. Double reduction axles become the better choice for heavy loads over rough, uneven, or off-road surfaces.
A: Yes. We supply modified trucks and refitting plans that address the different rules and conditions present in various markets.
A: Most orders require 30 to 60 days after the deposit arrives. The exact period depends on the models selected and the order volume.
A: Each truck receives a careful inspection followed by a second review prior to dispatch. Third-party verification remains an available option.
