Motor graders serve as key tools in big infrastructure and building efforts. They act as the main support for road building, exact leveling, and ground smoothing. Yet, buying a grader involves a big expense. Picking the incorrect machine—one without the needed accuracy, strength, or force—can badly affect project schedules and financial plans. Global buyers frequently struggle to match details from different makers. They also need to confirm the chosen gear can handle the special weather pressures of their working areas. These might include warm zones, dry lands, or hilly spots.
To make sure your expense brings top output and lasting use, this specialist manual explains the vital machine traits and working skills you must check before a buy. Grasping these basic ideas will help you pick a motor grader that fits well with your exact work setting and task needs.
A top motor grader stands out via its command of three basic fields: exact hydraulic management, build steadiness, and user ease. Overlooking these design parts can cause unsteady blade shifts, lower toughness, and worker tiredness.
The hydraulic system acts as the mind and strength of the motor grader. It controls the correctness and pace of blade motion. Leading graders use modern hydraulic controls to guarantee even, effective leveling. This proves necessary for gaining a fine end result.
i. Load Sensing and Flow Control
Search for a setup that includes a Load-sensing hydraulic system. This method offers steady and correct blade motion. Such motion ranks as important for boosting end results. Also, fine models often employ Proportional Priority Pressure Compensating (PPPC) Valves. These valves use specially shaped spools for motor grader use. They steadily align hydraulic flow and pressure with force needs. As a result, they permit simple multi-task control required to boost job speed.
ii. Hydraulic Efficiency
Speed matters a lot for cutting fuel use and the warming increase. Leading graders include traits like a variable displacement piston pump in their hydraulic systems. This pump cuts the force used well and lowers the hydraulic system temperature. In turn, it boosts fuel savings. Inboard lock check valves inside the PPPC system also stop unwanted cylinder shifts and possible hydraulic drips. Thus, they add to dependability.
The built parts of the grader must stay strong to manage changing forces and harsh running conditions.
i. Frame Design and Reliability
The front frame ought to be designed for top toughness. A flanged box section layout on the front frame aids in taking welds away from high-pressure spots. This greatly boosts both dependability and toughness. Plus, ongoing top and bottom plate building gives evenness and power. It further enhances front frame toughness.
ii. Tandem Axle Performance
The tandem axle must be built for better burden spread and dependability. Modern graders often draw on proven design knowledge. They add traits like better bearing setup and improved burden spread using four planetary gears for the final drive. Upkeep gets reduced via required results checks before putting together. It also involves top-class manufacturing and quality management.
The moldboard blade’s adaptability sets the span of jobs the grader can handle. This ranges from basic smoothing to tricky slope tasks and snow clearing.
i. Link Bar Control and Reach
A good management setup, such as a 7-position link bar with electric over hydraulic control, permits simple use from within the cab. This link bar proves vital for stretching reachability. It works well when slicing high bank side slopes or the back slope of a ditch.
ii. Blade Float Function
A usual blade float function boosts adaptability by letting the blade drop without hydraulic pressure. This trait gets started by pressing the lift cylinder controls past the detent. It offers key safeguards for both the machine and ground during snow-clearing and plowing tasks.
Picking a motor grader involves aligning the machine's special skills with your setting. Chary Machinery gives access to a selection of fine Chinese-made motor graders fit for worldwide export efforts. We supply models from field leaders such as XCMG, Shantui, and SEM.

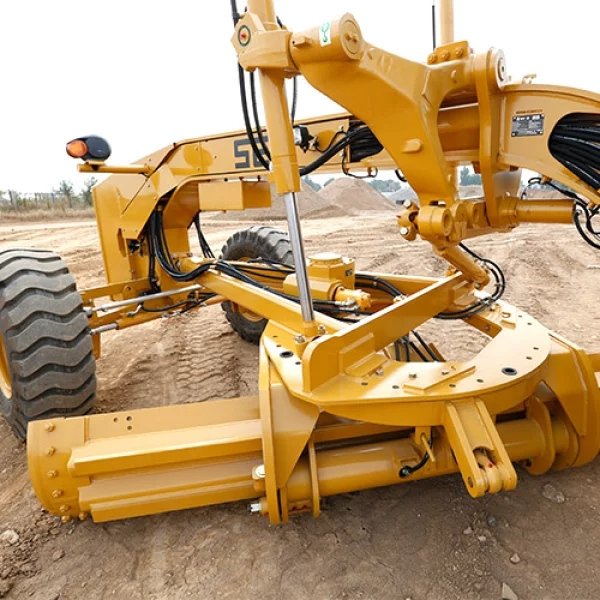

The SEM919 model ranks as a fine pick for usual road building and upkeep efforts where output and expense savings are stressed.
The main benefits of the SEM919 cover:
• High Productivity: Gained via its load-sensing hydraulic system, which assures exact blade motion.
• Lower Operation Cost: This model includes an improved power train match. It has an ECO model and a VHP function. These add straight to lower fuel use.
• High Reliability: Build wholeness is maintained by an A-frame designed drawbar. It supplies power across all blade spots.
• Operator Comfort: The cab shows a world-class field control layout with low lever efforts. These are planned to cut worker tiredness.

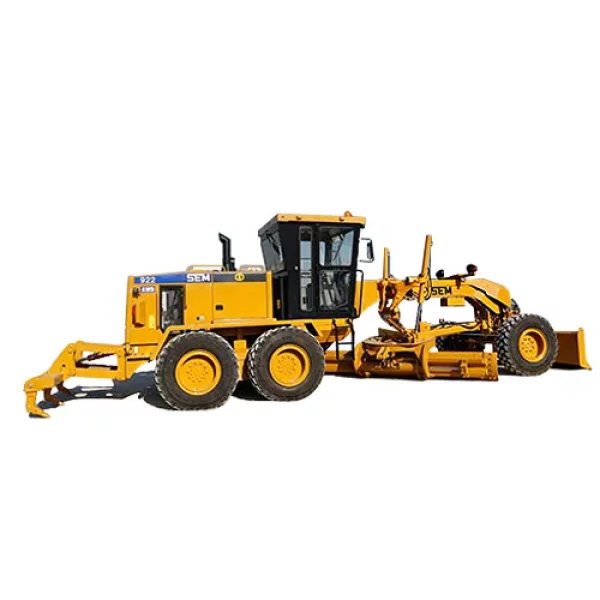

For the hardest ground uses—such as building on sand, snow, gravel, or mud—the SEM922AWD is built to provide better grip and management.
• All Wheel Drive (AWD): The AWD function is made exactly for bad ground conditions. It boosts torque delivery to the surface via endlessly changeable speed pumps and two-speed motors in each gear.
• Steering Control: It includes a special steering compensation system. This permits a "powered turn." In turn, it sharply cuts the turning radius and boosts management in hard states.
• Enhanced Serviceability: The SEM tandem axle draws on knowledge and includes longer service gaps for lubrication oil change.
• Advanced Cab: Workers gain from a big cab (1.9m height, 30% larger space than many rivals). It gets placed on the front frame. Thus, it gives a great view of the blade and front axle, even during articulation.

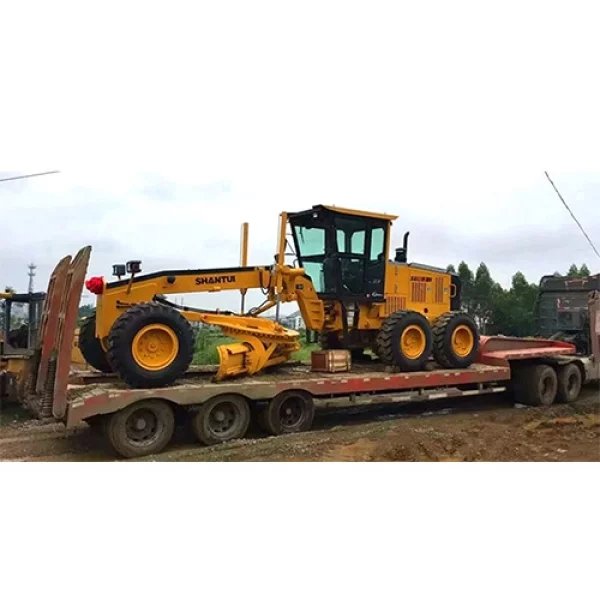

The Shantui SG18-3 supplies a sturdy mix of engine force and exact size management. This makes it a dependable main tool for different leveling jobs.
• Powerful Engine: It comes fitted with the Cummins 6BTAA5.9-C180 engine. This delivers a rated power of 132 kW (2200 rpm) and a maximum torque of 770 N·m (1500 rpm). The engine ranks as an in-line, water-cooled, 4-cycle, direct injection, turbocharged model.
• Transmission Flexibility: The grader employs an electronically controlled transmission. It has 6 forward gears and 3 reverse gears. These offer full-speed choices for various jobs.
• Precise Blade Dimensions: The SG18-3 provides big control over leveling depths and angles. Its standard operating weight reaches 16200 kg. The blade length comes at 3660 mm or 3965 mm, with a maximum cutting depth of 500 mm.
Chary Machinery ranks as a wholesale export agent focusing on trucks and special vehicles. This includes a broad span of Construction Machinery, like motor graders. We keep firm ties with leading Chinese makers such as XCMG, Shantui, and SEM. Our emphasis rests on supplying dependable gear answers to foreign clients. We make sure quality and fit for global efforts.
A: Blade float allows the blade to lower without hydraulic pressure, which provides protection for the machine and the pavement, typically used during snow removal.
A: The SEM922AWD, featuring its All Wheel Drive (AWD) function and steering compensation system, is designed specifically for poor underfoot applications like mud, sand, or snow.
A: The SEM919 achieves lower operating costs primarily through an optimized power train match that includes an ECO model and VHP function to reduce fuel consumption.
