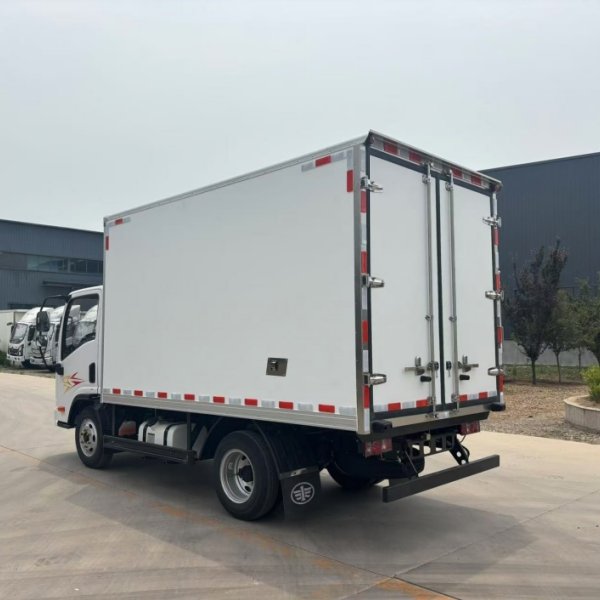

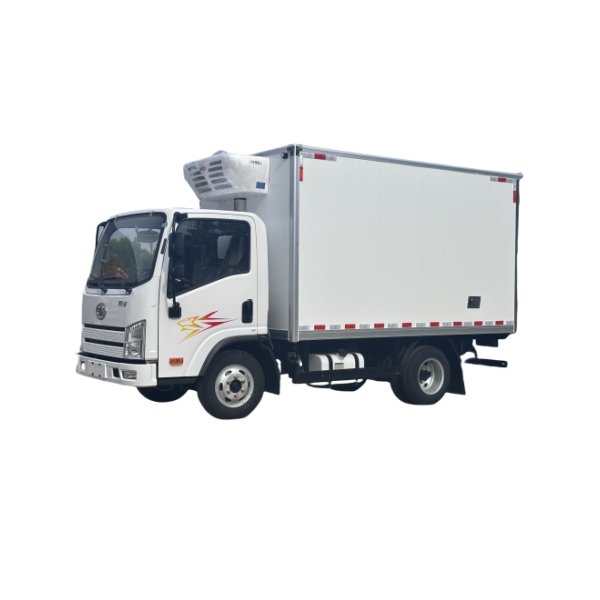

FAW 3~5 Tons light refrigerated truck
The names vary. reefer, reefer trucks, refrigerated trucks, refrigerator wagon, refrigarator truck.refrigerated vehicle. chil car. No matter the name, there's no substitute for refrigerated reliabilityWhen your shipments include perishable items, you need a reefer that keeps cargo at the righttemperature. FAW 3~5 Tons light refrigerated truck is one popular reefer truck for cold-chainlogistics. According to the refrigerator unit, it could load fresh eggs, vegetable, frozen fish and meat
Products
FAW 3~5 Tons light refrigerated truckThe names vary. reefer, reefer trucks, refrigerated trucks, refrigerator wagon, refrigarator truck.refrigerated vehicle. chil car. No matter the name, there's no substitute for refrigerated reliabilityWhen your shipments include perishable items, you need a reefer that keeps cargo at the righttemperature. FAW 3~5 Tons light refrigerated truck is one popular reefer truck for cold-chainlogistics. According to the refrigerator unit, it could load fresh eggs, vegetable, frozen fish and meat
FAW 3~5 Tons light refrigerated truck
FAW 3-5 Tons light refrigerated truck is one popular reefer truck for cold-chain logistics. According tothe refrigerator unit, it could load fresh eggs, vegetable, frozen fish and meat.Engine: FAWDE, WEICHAI POWER, CUMMINS, YUCHAI, YUNNEIEmission standard: Euro ll, lll,|V V VI
Gearbox: ALLISON Automatic transmission, ZF, FAST FULLER, WLYSteering: Left hand driving, right hand drivingCabin: Single cabin, one and half row cabin.
FAW 4x2 3 Ton Refrigerated Truck | |
Drive System | 4×2 |

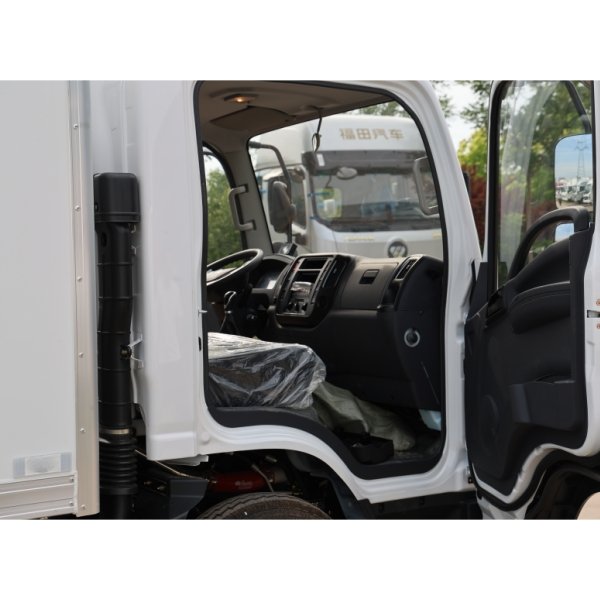

Cabin | Tiger VR single-row cab, Air conditioning, electric windows and doors + central locking |
Engine | WEICHAI; 4 cylinders, diesel, water-cooling &turbocharging |
Model: WP2.3NQ110E20, Euro2 WP2.3NQ110E20 | |
Power: 81kw (110HP) | |
Gearbox | WLY GEAR Model: WLY MG85B Manual, 5 forward speeds, 1 reverse speed. |
Clutch | Ф275mm |
cargo box dimension (mm) | 3500*1900*1900mm |

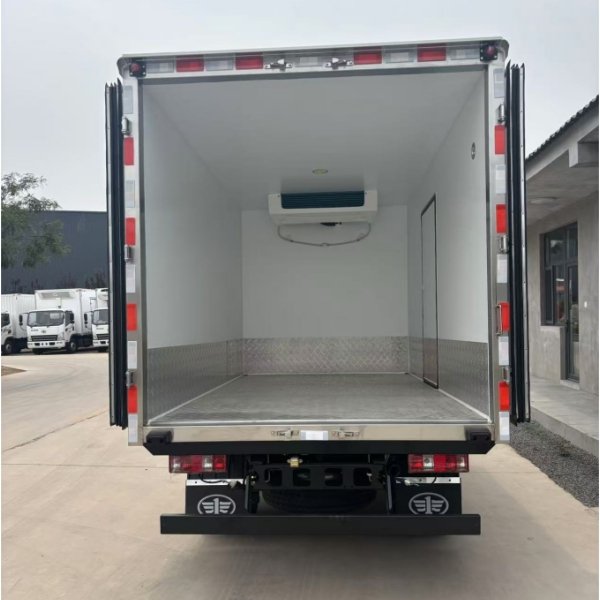

Thickness of Cargo box (mm) | The outer skin is made of fiberglass, the inner skin is made of thermoplastic, with a single door, polyurethane insulation material, side door and rear door locks, hinges, door frames are made of stainless steel, the body is made of aluminum alloy, and there is an LED light in the truck body. |
Loading capacity (kg) | 3000KG |
Wheel base(mm) | 2800mm |
Front axle | DR052, YIHE axle |
Rear axle | 130 punching and welding axle speed ratio: 5.125, wheelbase: 1475 |
Frame | 760*150*60*4 |
Tire | 6.50R16 10PR(Half Steel Wire) |
Spring suspension | Leaf spring F3/R7+3 |
Fuel tank (L) | 80L |
Overall dimensions(mm) | 4600*2000*2400mm |
Others | With kormee ABS, hydraulic brakes, rear dual tires |
