Hyundai HX245 Excavator - Reliable 24 Ton Construction Digger
The Hyundai HX245 is a versatile 24-ton class medium excavator built for heavy daily construction workloads. Equipped with a high-performance engine and optimized hydraulic system, it balances strong digging force and low fuel consumption. The upgraded cab brings great comfort and visibility for long-hour operation. Widely applied in road building, site excavation, quarry work and land reclamation. Hyundai’s robust frame guarantees long service life under tough working environments.

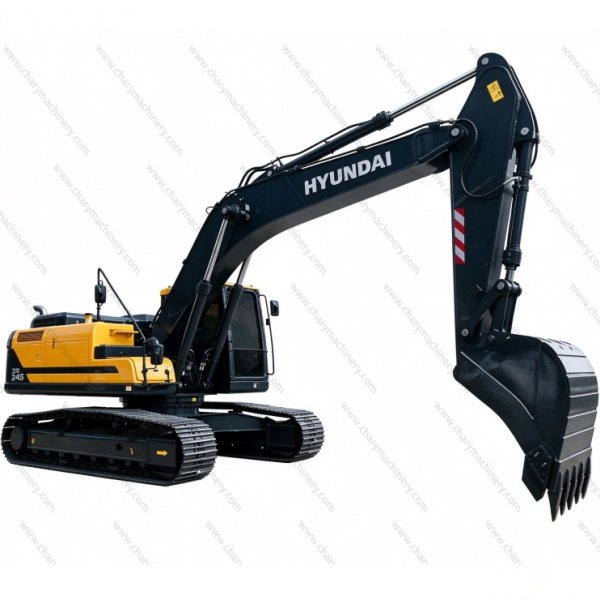

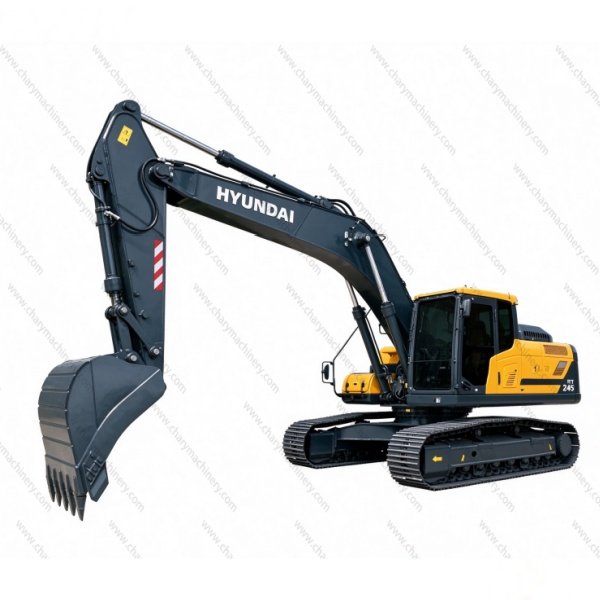

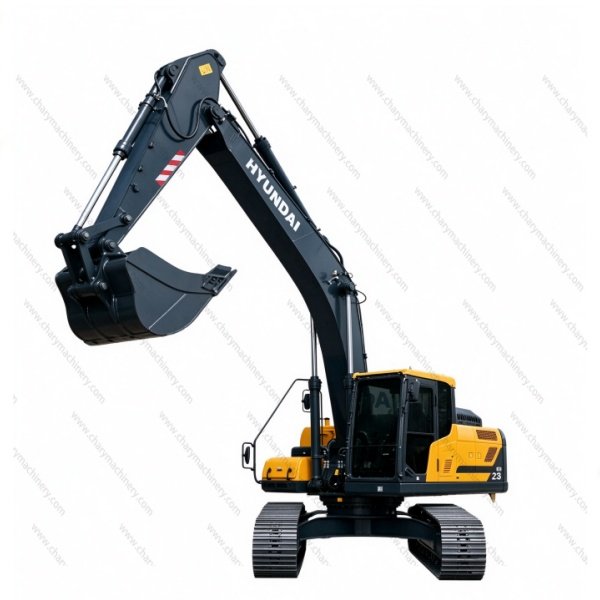

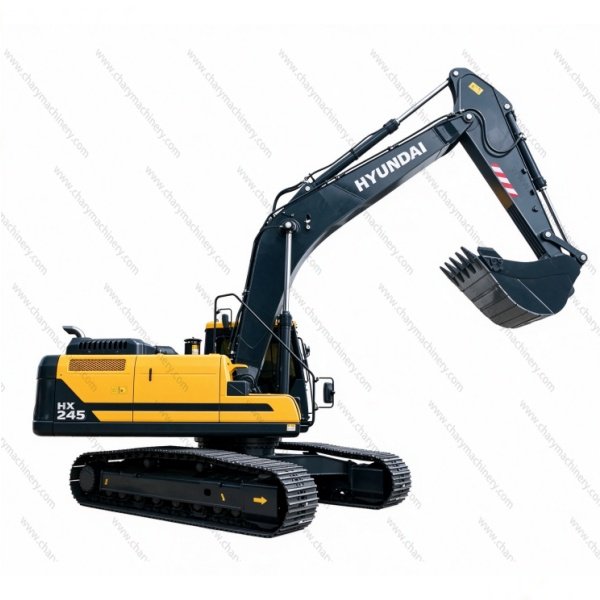

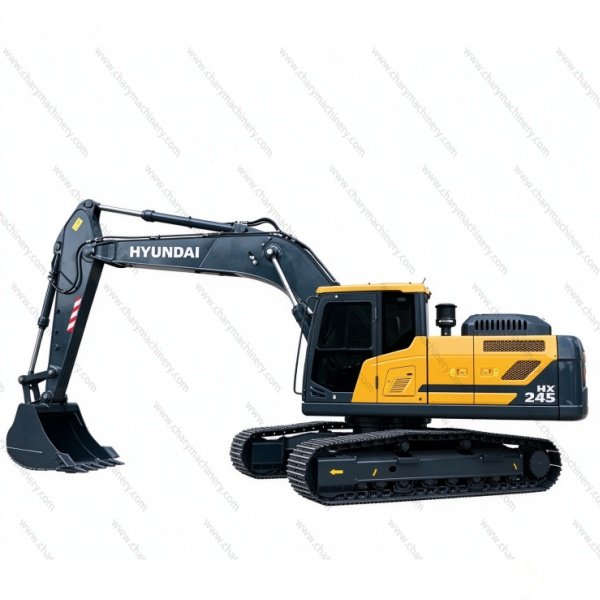

Hyundai HX245 Excavator
The Hyundai HX245 medium excavator is engineered to handle demanding construction tasks with stable performance. Designed for 24-ton working class, this machine integrates advanced hydraulic technology to deliver strong breakout force while keeping fuel consumption under control.
The reinforced working attachment can sustain continuous heavy-duty operation on construction sites, mines and land development projects. The ergonomic operator cabin effectively cuts down vibration and noise, easing fatigue during long shifts. Simple maintenance layout helps operators quickly complete daily inspections and part replacement, minimizing machine downtime.
As a trusted Hyundai construction equipment, HX245 offers outstanding durability and high resale value, making it a cost-effective choice for contractors and machinery rental businesses.
| Main Technical Parameters | ||
| Parameter | Unit | Value |
| ENGINE PARAMETERS | ||
| Manufacturer | - | Cummins |
| Model | - | B7 |
| Emission Standard | - | China IV |
| Rated Power (Gross) | kW/hp/ps/rpm | 150/201/204/2000 |
| Rated Power (Net) | kW/hp/ps/rpm | 146/196/199/2000 |
| Max. Torque | N·m/rpm | 890/1300 |
| Displacement | cc | 6,700 |
| No. of Cylinders – Bore × Stroke | ea-mm | 6-107×124 |
| Battery | ea-V·Ah | 2-12×120 |
| Starting Motor | V/kW | 24/7.8 |
| Alternator | V/A | 28/70 |
| PERFORMANCE PARAMETERS | ||
| Swing Speed | rpm | 10.93 |
| Swing Torque | kN·m | 74.74 |
| Travel Speed | km/h | 5.49/3.24 |
| Gradeability | deg | 35 |
| Max. Traction Force | ton | 24 |
| Bucket Digging Force (ISO) [Boost] | ton | 16.9[18.4] |
| Arm Digging Force (ISO) [Boost] | ton | 12.5[13.5] |
| UNDERCARRIAGE | ||
| Top Rollers | ea (each side) | 2 |
| Track Rollers | ea (each side) | 8 |
| Track Shoe No. | ea (each side) | 49 |
| Ground Pressure | kgf/cm² | 0.57 |
| OVERALL DIMENSIONS | ||
| Boom Length | mm | 5,850 |
| Arm Length | mm | 2,850 |
| Bucket Capacity (STD) | m³ | 1.5 |
| Overall Length | mm | 10,050 |
| Overall Width | mm | 3,180 |
| Upper Structure Width (Body Width) | mm | 2,840 |
| Overall Height (Boom) | mm | 3,390 |
| Overall Height (Cab) | mm | 3,040 |
| Track Gauge | mm | 2,580 |
| Track Contact Length (Wheelbase) | mm | 3,640 |
| Track Length | mm | 4,440 |
| Track Shoe Width (OPT) | mm | 600 |
| Min. Ground Clearance | mm | 480 |
| Counterweight Ground Clearance | mm | 1,110 |
| Tail Swing Radius / Tail Radius | mm | 3085(2990) |
| OTHERS | ||
| Fuel Tank Capacity | L | 450 |
| Hydraulic Tank Capacity (System) | L | 160(275) |
| Engine Oil | L | 25 |
| Engine Coolant | L | 43 |
| DEF Tank (Urea) | L | 48 |
