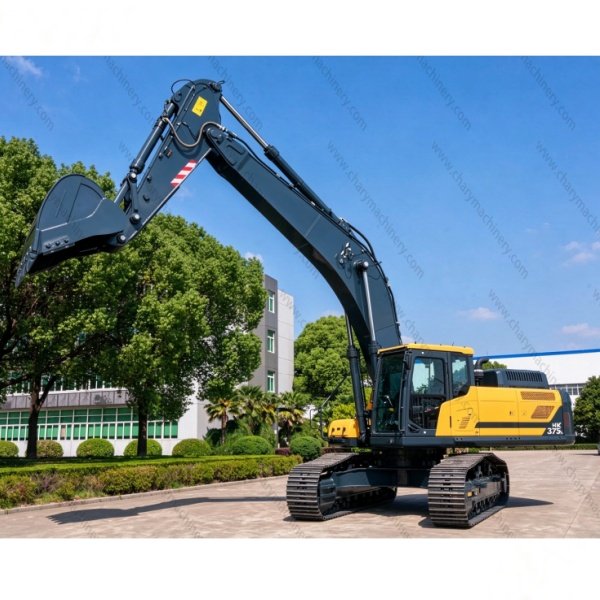

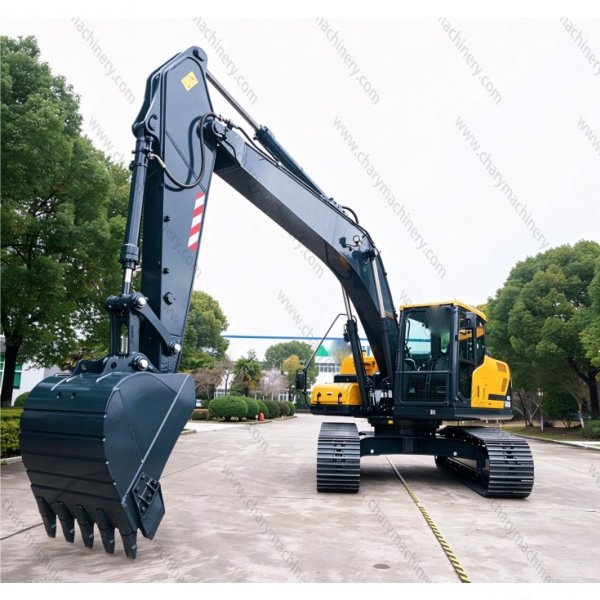

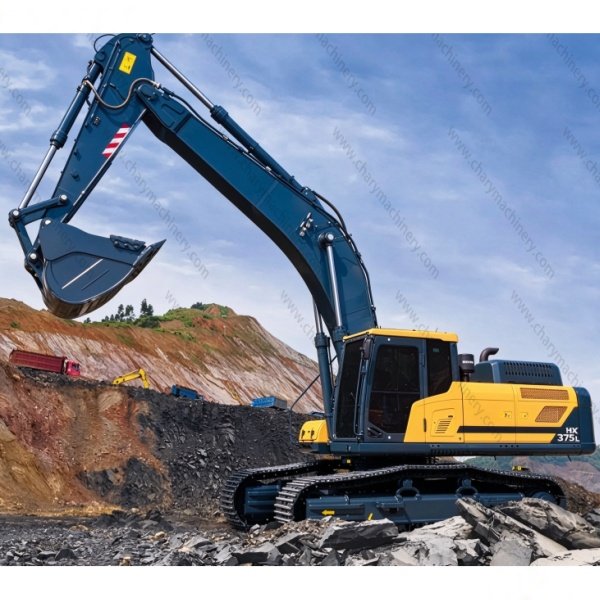

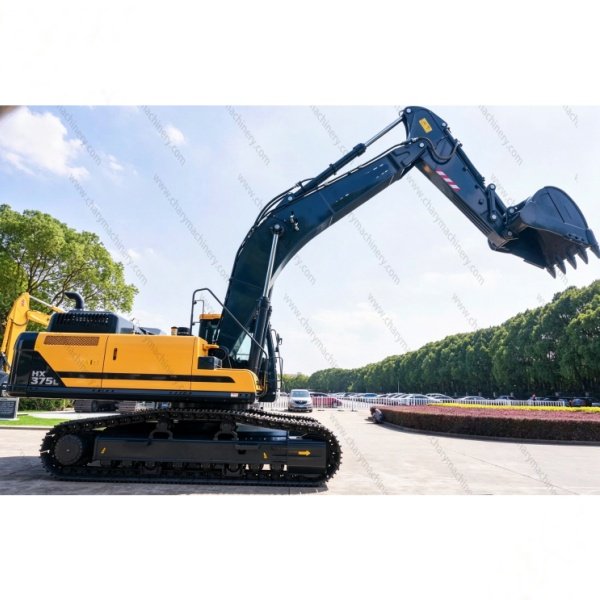

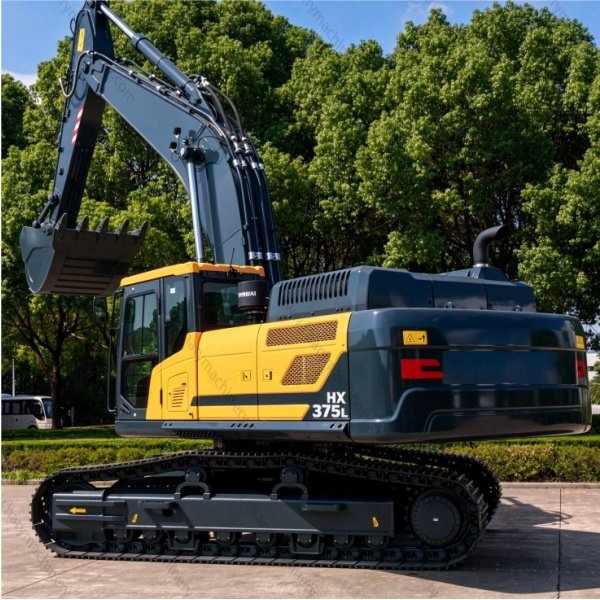

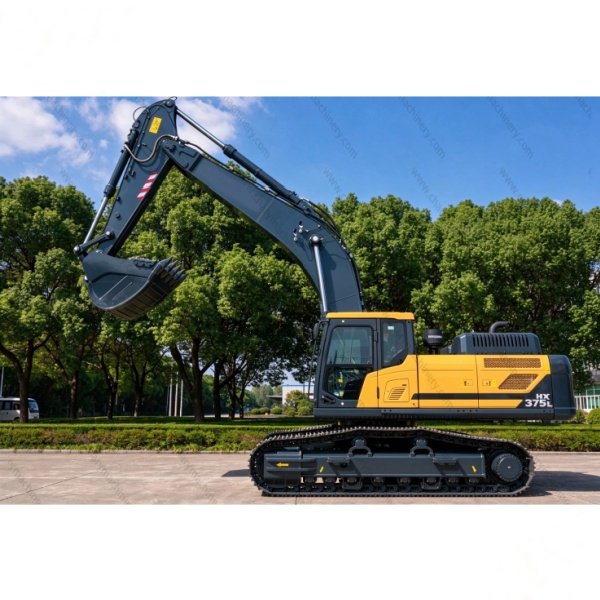

Hyundai HX375L Large Hydraulic Excavator
Hyundai HX375L is a heavy-duty large excavator, designed for quarrying, mining and earthmoving projects. It delivers strong digging power, stable performance and excellent fuel economy. Reinforced structure ensures long service life under harsh working conditions.
Hyundai HX375L Large Hydraulic Excavator
Hyundai HX375L hydraulic excavator adopts upgraded power system and heavy-duty reinforced boom. It features high digging force and reliable durability, ideal for heavy workloads such as stone quarry and bulk earthworks. The comfortable cab reduces operator fatigue during long-time operation.
| Main Technical Parameters | ||
| Parameter | Unit | Value |
| ENGINE PARAMETERS | ||
| Manufacturer | - | Cummins |
| Model | - | L9 |
| Emission Standard | - | China IV |
| Rated Power (Gross) | kW/rpm | 254/1900 |
| Rated Power (Net) | kW/rpm | 251/1900 |
| Max. Torque | N·m/rpm | 1520/1100~1400 |
| Displacement | cc | 8,900 |
| No. of Cylinders – Bore × Stroke | ea-mm | 6-114×145 |
| Battery | ea-V·Ah | 2-12×200 |
| Starting Motor | V/kW | 24/7.8 |
| Alternator | V/A | 28/70 |
| PERFORMANCE PARAMETERS | ||
| Swing Speed | rpm | 9.83 |
| Swing Torque | kN·m | 120 |
| Travel Speed | km/h | 5.12/3.21 |
| Gradeability | deg | 35 |
| Max. Traction Force | ton | 35.3 |
| Bucket Digging Force (ISO) | ton | 23 |
| Arm Digging Force (ISO) | ton | 19 |
| Top Rollers | ea (each side) | 2 |
| Track Rollers | ea (each side) | 8 |
| Track Shoe No. | ea (each side) | 48 |
| Ground Pressure | kgf/cm² | 0.72 |
| OVERALL DIMENSIONS | ||
| Boom Length | mm | 6,500 |
| Arm Length | mm | 2,850 |
| Bucket Capacity (STD) | m³ | 1.9 |
| Overall Length | mm | 11,415 |
| Overall Width | mm | 3,430 |
| Upper Structure Width (Body Width) | mm | 3,090 |
| Overall Height (Boom) | mm | 3,915 |
| Overall Height (Cab) | mm | 3,275 |
| Track Gauge | mm | 2,590 |
| Track Contact Length (Wheelbase) | mm | 4,030 |
| Track Length | mm | 4,965 |
| Track Shoe Width (OPT) | mm | 600 |
| Min. Ground Clearance | mm | 530 |
| Counterweight Ground Clearance | mm | 1,245 |
| Tail Swing Radius / Tail Radius | mm | 3,620/3,550 |
| OTHERS | ||
| Fuel Tank Capacity | L | 585 |
| Hydraulic Tank Capacity (System) | L | 210(414) |
| Engine Oil | L | 34 |
| Engine Coolant | L | 32 |
| DEF Tank (Urea) | L | 70 |
