Hyundai HW60ECO is a compact 6-ton wheel excavator. Featuring flexible mobility, low fuel consumption and easy transportation. Ideal for urban construction, pipeline work, road maintenance and municipal engineering projects.
Hyundai HW60ECO Wheel Excavator
Hyundai HW60ECO is a compact 6-ton wheel excavator. Featuring flexible mobility, low fuel consumption and easy transportation. Ideal for urban construction, pipeline work, road maintenance and municipal engineering projects.
Hyundai HW60ECO Wheel Excavator
The Hyundai HW60ECO is a lightweight compact wheel excavator built for urban and municipal job sites. Unlike crawler excavators, this wheeled model can travel quickly on paved roads without damaging asphalt, saving relocation time greatly.

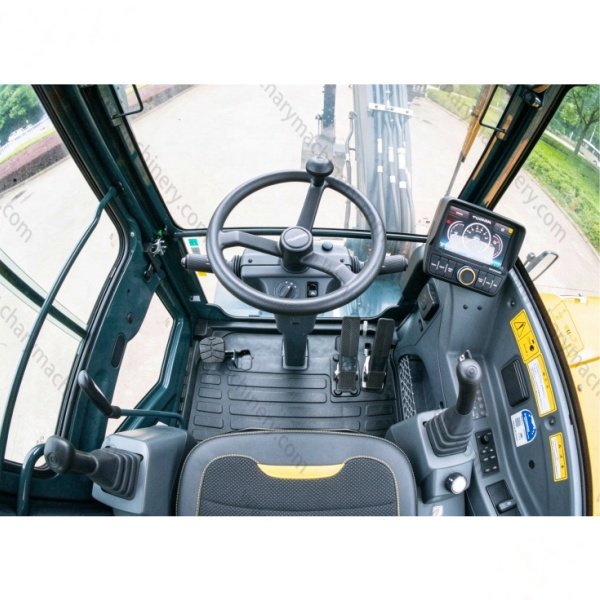

Equipped with an eco-friendly low-consumption engine and fine-tuned hydraulic system, it delivers smooth operation and stable digging performance for small-scale earthworks, trench digging, landscaping and utility pipeline installation. Compact body design allows it to operate in narrow city spaces. The comfortable cab has good visibility and simple controls for operators. Maintenance points are centrally arranged for quick daily inspection.
Thanks to its flexible movement, low running cost and reliable Hyundai build quality, HW60ECO is a popular wheel excavator choice for municipal contractors and rental companies.
| Main Technical Parameters | ||
| Parameter | Unit | Value |
| ENGINE | ||
| Manufacturer | - | Yanmar |
| Model | - | 4TNV94L |
| Emission Standard | - | China IV |
| Rated Power (Gross) | kW/hp/ps/rpm | 36.2/2,200 |
| Rated Power (Net) | kW/hp/ps/rpm | 34.2/2,200 |
| Max. Torque | N·m/rpm | 200.8/1,400 |
| Displacement | cc | 3,054 |
| Cylinders – Bore × Stroke | EA-mm | 4-94×110 |
| Battery | EA-V×AH | 1-93 |
| Starter Motor | V/kW | 12/3.0 |
| Alternator | V/A | 12/100 |
| PERFORMANCE | ||
| Swing Speed | rpm | 11.76 |
| Swing Torque | kN·m | 9.95 |
| Travel Speed | km/h | 25.7 |
| Gradeability | deg | 35 |
| Max. Traction Force | ton | 3.2 |
| Bucket Digging Force (ISO) [Boost] | ton | 4.66 |
| Arm Digging Force (ISO) [Boost] | ton | 3.14 |
| OVERALL DIMENSIONS | ||
| Boom Length | mm | 3,000 |
| Arm Length | mm | 1,600 |
| Bucket Capacity (STD) | m³ | 0.18 |
| Max. Digging Reach | mm | 6,150 |
| Max. Digging Reach at Ground Level | mm | 5,930 |
| Max. Digging Depth | mm | 3,465 |
| Max. Vertical Digging Depth | mm | 2,820 |
| Max. Digging Height | mm | 6,040 |
| Max. Dumping Height | mm | 4,305 |
| Min. Swing Radius | mm | 2,380 |
| Tail Swing Radius | mm | 1,650 |
| HYDRAULIC SYSTEM | ||
| Working Pressure | kgf/cm² | 240 |
| Pilot Pressure | kgf/cm² | 40 |
| Max. Working Flow | L/min | 144.9 |
| OTHERS | ||
| Fuel Tank Capacity | L | 127 |
| Engine Oil | L | 9.2 |
| Engine Coolant | L | 10.7 |
| Final Drive (Travel Motor Gear Oil) | L | 1.8 |
