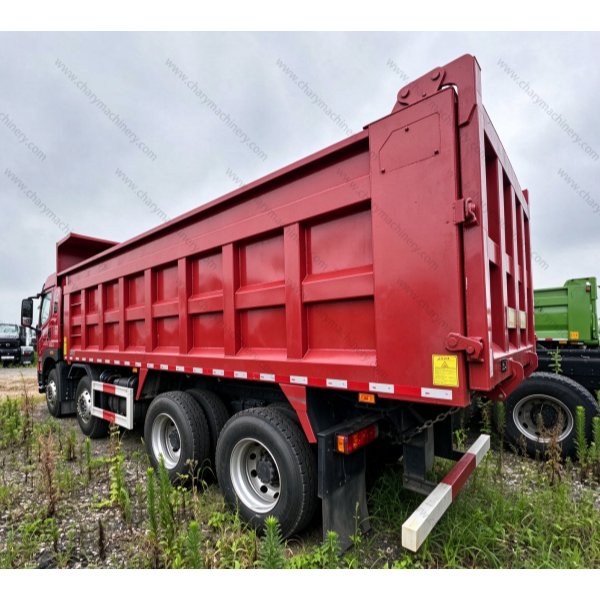

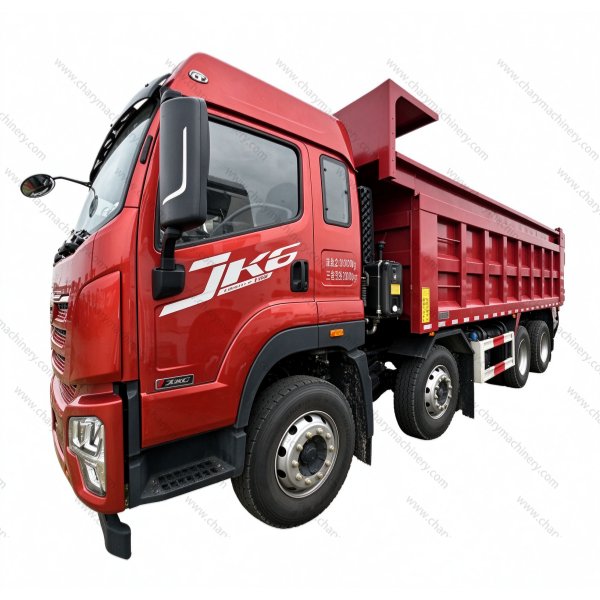

FAW JK6 8X4 Heavy-Duty Dump Truck

FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck
FAW JK6 8X4 390HP Heavy Duty Dump Truck

FAW JK6 8X4 390HP Heavy Duty Dump Truck

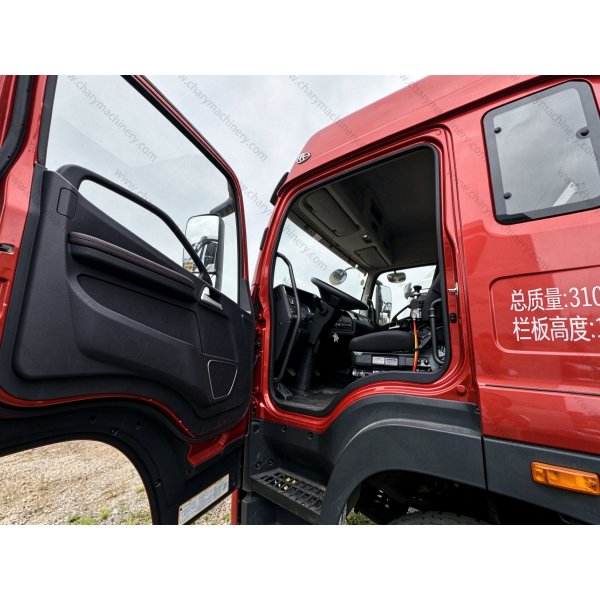

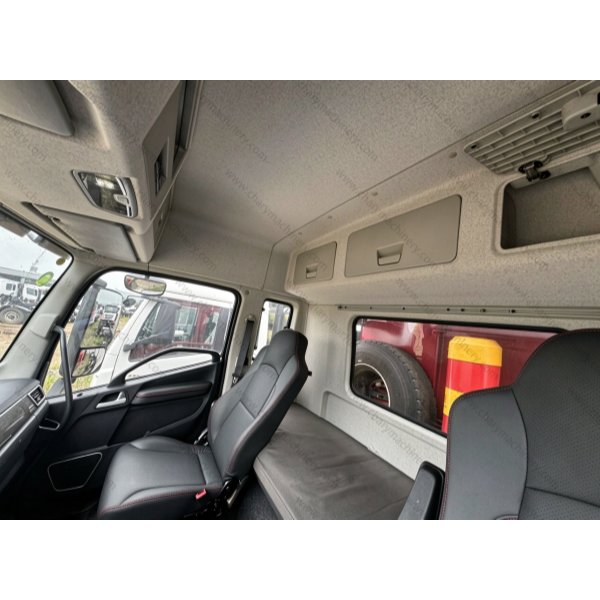

FAW JK6 8×4 390HP dump truck: 12 wheels, 31–40t payload, hub-reduction axles for strong pit-climbing torque; front-lift heavy steel box; WABCO brakes, balanced rear suspension for rough haul roads; spacious JK6 cab for long shifts; box and emission customizable;  MOQ 1, 1-year warranty, overseas service.

The FAW JK6 8×4 dump truck is built for the toughest hauling jobs in mines, quarries and large construction sites. Four axles and twelve wheels spread the load over a wide footprint, so the truck carries 31–40 tons of rock, ore, gravel and soil confidently on rough, soft and sloping ground without the high tire wear and chassis stress of a smaller 6×4. The hub-reduction drive axles deliver strong low-speed torque for loaded climbs out of pits, and the front-lift steel box tips heavy material quickly and completely.

ItemSpecification
Vehicle TypeFAW JK6 8×4 Heavy-Duty Dump Truck, LHD/RHD
Drive8×4 (12 Wheels)
Engine Power390HP, Diesel
EmissionEuro 2 (Customizable)
TransmissionManual
Wheelbase1900+4200+1350mm
Front Axles2055, 9t × 2, Drum Brake

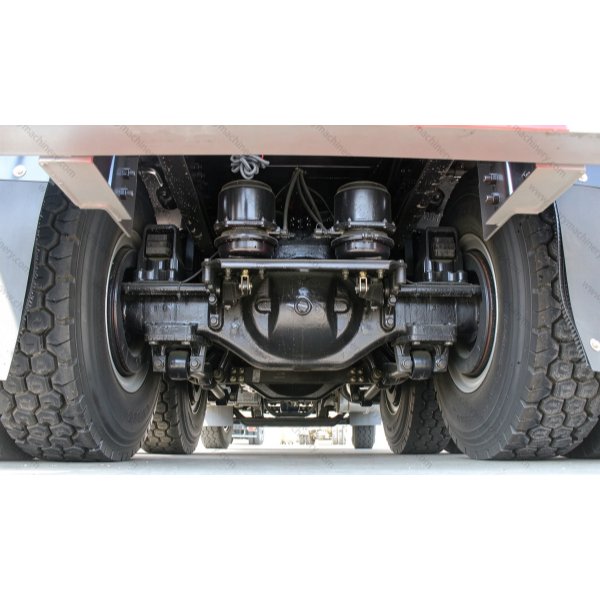

Rear Axles300 Hub-Reduction Axle, 16t × 2, Ratio 5.921
SuspensionLeaf Spring 11/13/13; Double I-Rod Rear Balance Suspension; Front Stabilizer
Tire12.00R20-18PR Tubeless Radial, 12+1 Spare
Fuel Tank400L
Battery180Ah Maintenance-Free
Dump Box4800×2300×1450mm; Front Lifting Style
Load Capacity31–40t Class
Overall Dimensions10795×2550×3600mm
Brake SystemWABCO Valves, WABCO Clutch Booster
