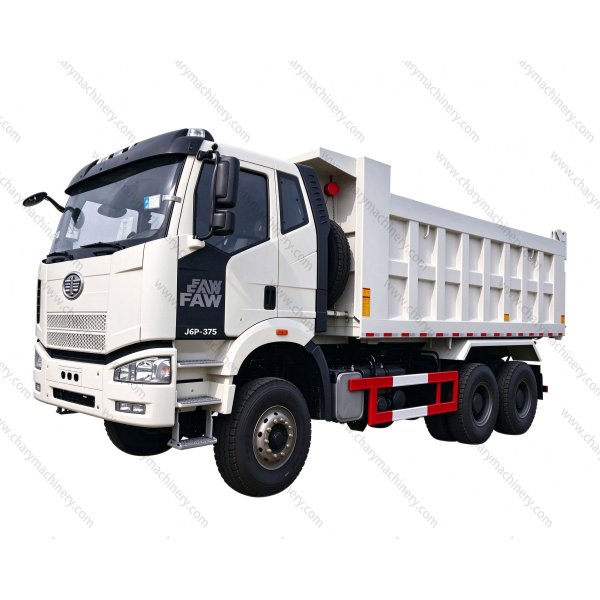

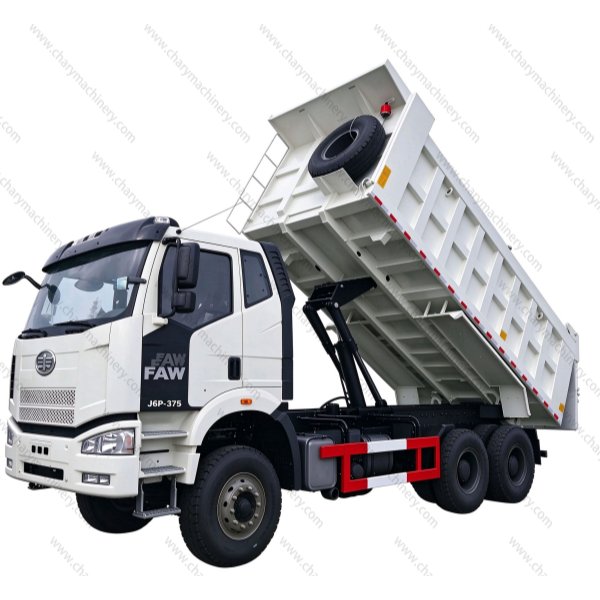

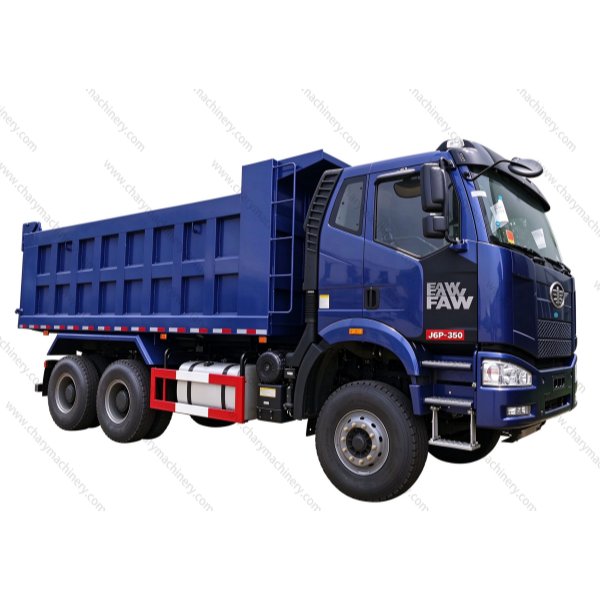

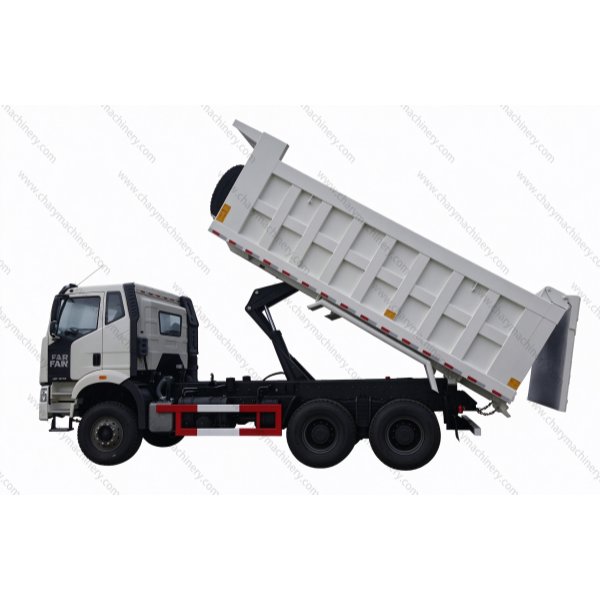

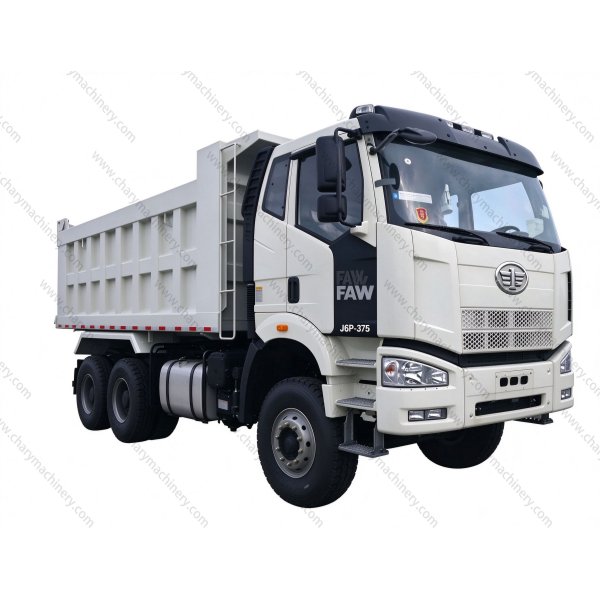

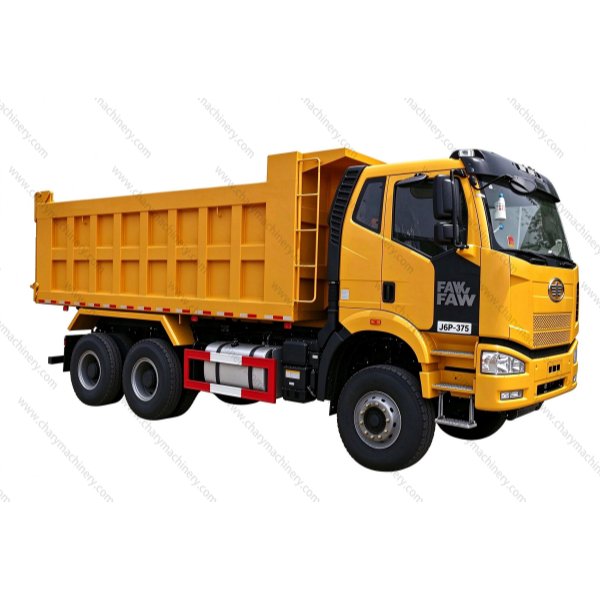

FAW J6P 6X4 375HP Dump Truck
FAW J6P 6×4 375HP dump truck: 18m³ heavy steel box with middle tipping, unloads rock, ore and gravel fast; 375HP engine with strong torque for loaded pit climbs; 10-speed manual, 16t hub-reduction axles for rough quarry roads; comfortable J6P cab for long shifts; box and emission customizable; MOQ 1, 1-year warranty, overseas service.
Products
FAW J6P 6X4 375HP Dump TruckFAW J6P 6×4 375HP dump truck: 18m³ heavy steel box with middle tipping, unloads rock, ore and gravel fast; 375HP engine with strong torque for loaded pit climbs; 10-speed manual, 16t hub-reduction axles for rough quarry roads; comfortable J6P cab for long shifts; box and emission customizable; MOQ 1, 1-year warranty, overseas service.
The FAW J6P 6×4 dump truck is engineered for high-volume hauling in mines, quarries and large construction sites. The 18m³ strong steel box carries a full heavy load of rock, ore, gravel and soil on every trip, while the middle tipping system unloads quickly and completely to keep cycles short. The 375HP engine pulls fully loaded trucks up long grades out of pits and on haul roads, and the 10-speed manual gearbox lets drivers choose the right ratio for loaded climbing and empty returns.
| Item | Specification |
|---|---|
| Vehicle Type | FAW J6P 6×4 Dump Truck, LHD/RHD |
| Drive | 6×4 |
| Engine | FAWDE 375HP Euro 2 (Customizable) |
| Gearbox | FAW CA10TAX190M, 10 Forward / 2 Reverse, Manual |
| Clutch | 430mm Diaphragm |
| Wheelbase | 3800+1350mm |
| Rear Axle | FAW 300, 16t×2, Benz-Tech Double-Reduction Hub-Reduction Drive |
| Suspension | Leaf Spring 10/12/12, 4 U-Bolts |
| Tire | 12.00R20-18PR Radial |
| Dump Box | Inner 5400×2300×1450mm, 18m³; Middle Tipping |
| Load Capacity | 31–40t Class |
| Fuel Tank | 400L |
| Cabin | J6P (FAW + Italian IDG Design) |
| Overall Dimensions | 8600×2500×3300mm |
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
