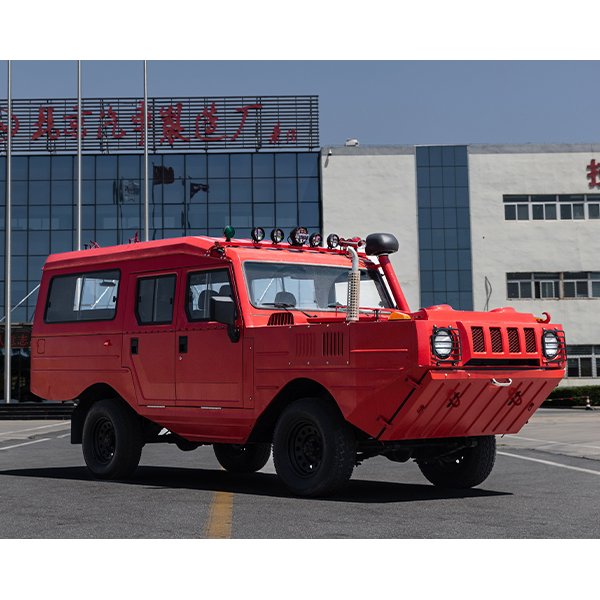

Multi-Function Land & Water Amphibious Emergency Fire Rescue Vehicle

Products
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck
Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck

Amphibious Off-Road Fire Rescue Vehicle | Land & Water Emergency Patrol Truck

  • Dual land-water driving design, max wading depth up to 0.8m and maximum climbing gradient of 44.5°, capable of traveling on mud, marsh, flood water and rugged mountain roads.

  • Two power options: Isuzu and Yuchai turbocharged diesel engines, matched with part-time 4WD or screw propeller water propulsion system for stable cross-medium driving.

  • Front & rear leaf spring suspension and heavy-duty off-road tires, strong load-bearing and shock absorption performance to adapt to complex wild and flood terrain.

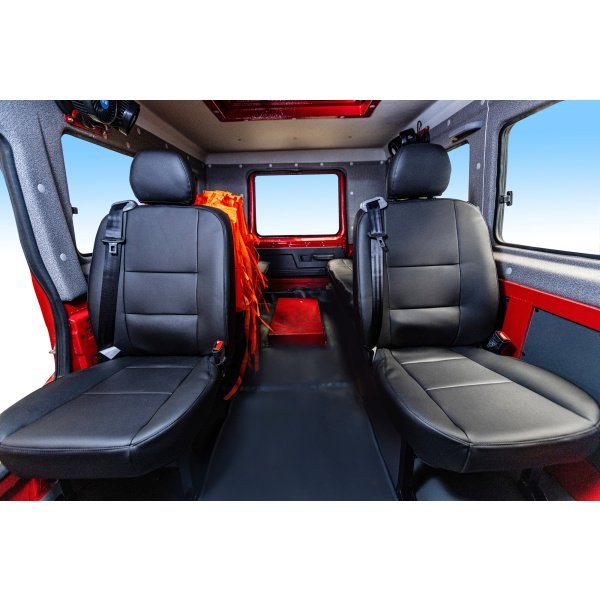

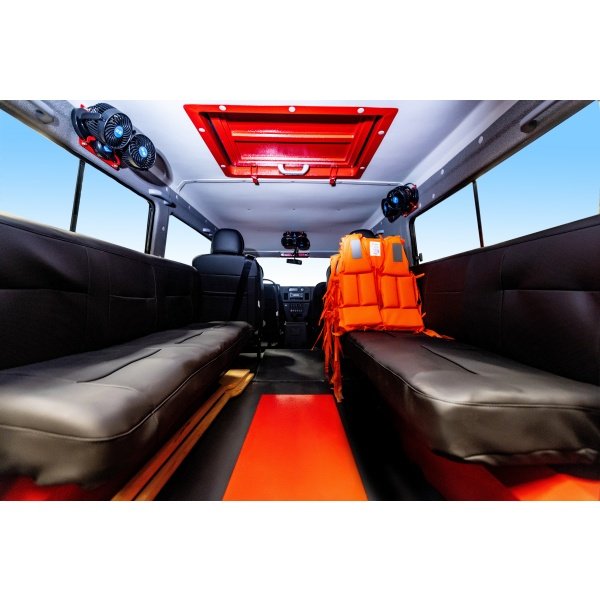

  • Spacious cabin with 8 passenger seats, optional water steering device, warning lights, loudspeakers and winches to meet diversified flood and fire rescue demands.

  • Dual speed performance: max speed 95km/h on land and 10km/h on water, ideal for flood control, waterlogging rescue, forest fire inspection and emergency material transport.

Main Specification

Overall Dimension

5790×1840×2230 mm

Wheelbase

2850 mm

Front/Rear Track

1550/1550 mm

Curb Weight2550 kg
Gross Weight

3150 kg
Seating Capacity8 persons
TransmissionManual 5-speed gearbox
Drive ModePart-time 4WD + Screw Propeller Water Drive
SuspensionFront & Rear Leaf Spring
Tire Spec245/75R16LT
Max Speed95km/h (land), 10km/h (water)

Fuel TypeDiesel
Engine ModelJE493ZQ5C / YCY24140-60A
Displacement2771mL / 2360mL
Max Power / RPM62kW/3600r/min; 103kW/2950r/min
Max Torque / RPM215N·m/2200r; 350N·m/1400-2400r/min
Intake TypeTurbocharged
Emission StandardEuro II/III
Engine ManufacturerIsuzu / Guangxi Yuchai Machinery
Fuel Tank Capacity70L+70L

Special Equipment

  • Passable slope up to 44.5°, maximum wading depth 0.8 meters

  • Optional accessories: water steering mechanism, warning light, loudspeaker, rescue winch.
