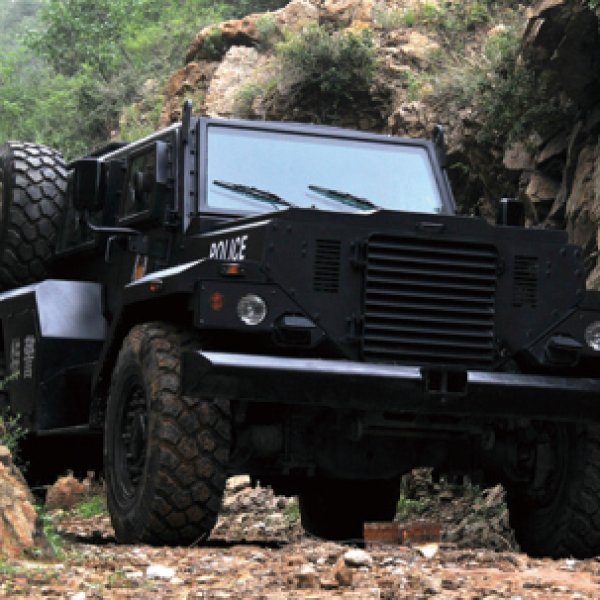

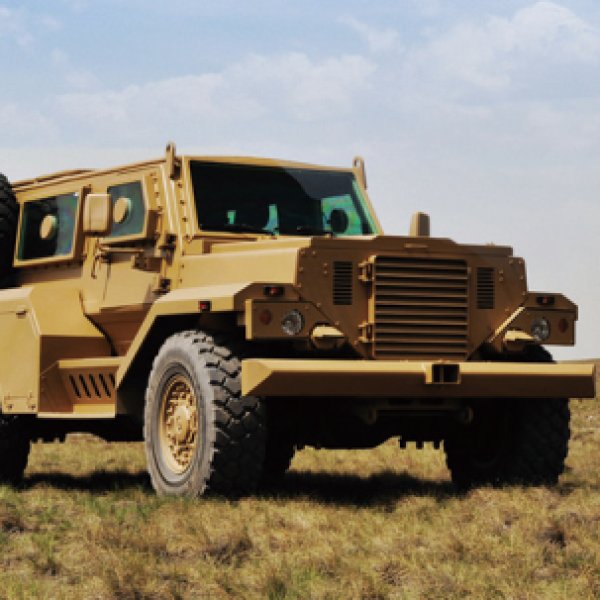

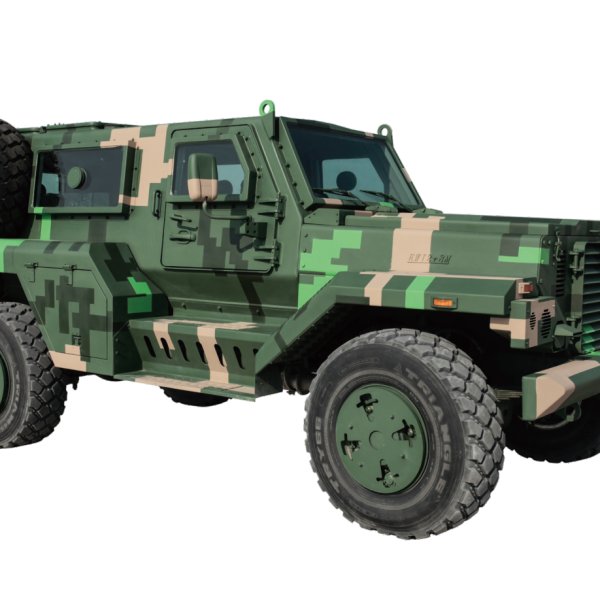

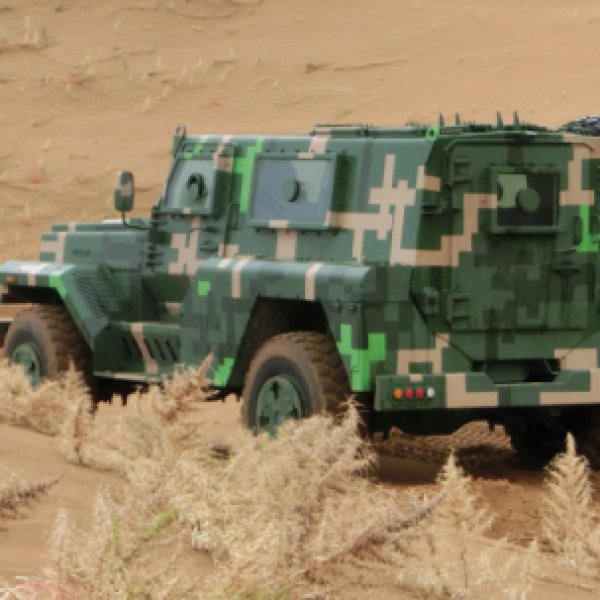

4×4 Armored High Protection Off-Road Vehicle National VI | Anti-Terrorism Bulletproof Patrol Carrier
Full-time 4×4 all-wheel drive layout with maximum 60% gradeability and 125km/h top speed for outstanding cross-country mobility in mountain, desert and muddy terrain.
Multi-layer integrated armor structure provides standard NIJ Level I ballistic protection, upgradable to NIJ Level II via add-on armor plates for higher threat environments.
Excellent blast resistance design: underbody withstands 8kg TNT equivalent mine blasts, wheel positions resist 10kg TNT mines, and hull withstands 17.5kg IED blasts 1m away from vehicle side.
Wide environmental adaptability, operable at 4000m altitude under temperature range from -43℃ to +55℃, covering frigid, humid, normal and high-temperature tropical zones.
Two complete series (standard & extended wheelbase) support diversified missions including anti-terror patrol, armed escort, disaster rescue, battlefield command and frontline material supply.
Products
4×4 Armored High Protection Off-Road Vehicle National VI | Anti-Terrorism Bulletproof Patrol Carrier
Full-time 4×4 all-wheel drive layout with maximum 60% gradeability and 125km/h top speed for outstanding cross-country mobility in mountain, desert and muddy terrain.
Multi-layer integrated armor structure provides standard NIJ Level I ballistic protection, upgradable to NIJ Level II via add-on armor plates for higher threat environments.
Excellent blast resistance design: underbody withstands 8kg TNT equivalent mine blasts, wheel positions resist 10kg TNT mines, and hull withstands 17.5kg IED blasts 1m away from vehicle side.
Wide environmental adaptability, operable at 4000m altitude under temperature range from -43℃ to +55℃, covering frigid, humid, normal and high-temperature tropical zones.
Two complete series (standard & extended wheelbase) support diversified missions including anti-terror patrol, armed escort, disaster rescue, battlefield command and frontline material supply.
This vehicle is available in two major series: standard wheelbase and extended wheelbase. It can be widely applied in anti-terror operations, public security patrol, armed escort and disaster rescue, as well as battlefield command, frontline casualty evacuation, material supply and other mission scenarios.
Main Specification
|
Full Vehicle Weight | ≤8T |
Load Capacity | 3T |
Seating Capacity | 1 driver + 7 passengers (8 persons total) |
| Drive Mode | Full-time 4×4 |
| Overall Length | ≤5300mm |
| Overall Width | ≤2500mm |
| Overall Height | ≤2400mm |
| Turning Diameter | ≤15m |
| Max Speed | ≥125km/h |
| Max Gradeability | ≥60% |
Protection Performance
Hull armor can block 7.62×51mm and 5.56×45mm SS105 bullets (NIJ Level I) at 30m distance; ballistic protection can be upgraded to NIJ Level II with additional armor kits.
Underbody withstands 8kg TNT equivalent mine blast; wheel positions resist 10kg TNT mine blasts.
Hull can withstand 17.5kg IED blast at 1m lateral distance.
Environmental Adaptability
Operable at altitude up to 4000m, adaptable to ambient temperature range:
