BEIBEN 6X4/6X6 log truck
Heavy-duty Beiben 6×6 log truck with solid timber rack, strong off-road traction and reliable performance — ideal for forestry, mountain and rough terrain transport.
Products
BEIBEN 6X4/6X6 log truckHeavy-duty Beiben 6×6 log truck with solid timber rack, strong off-road traction and reliable performance — ideal for forestry, mountain and rough terrain transport.

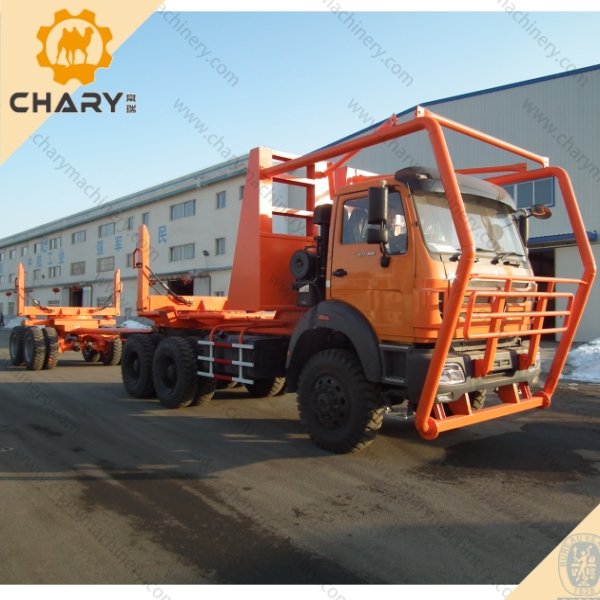

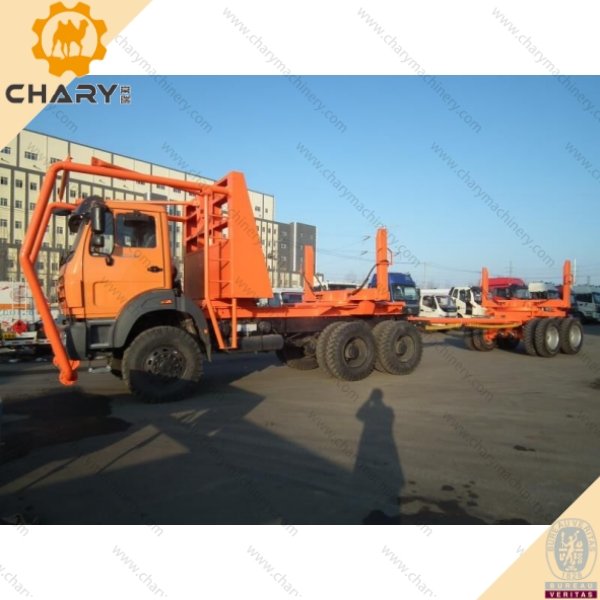

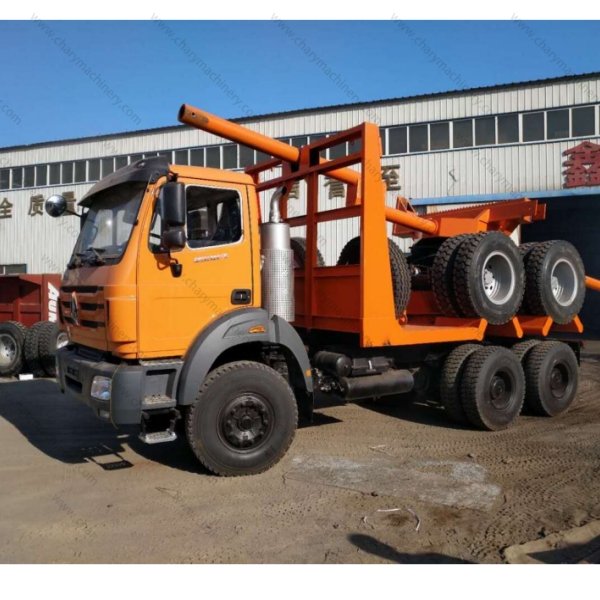

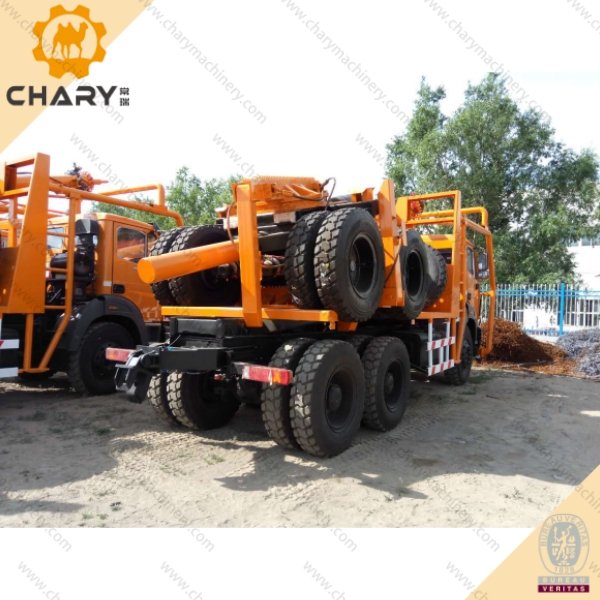

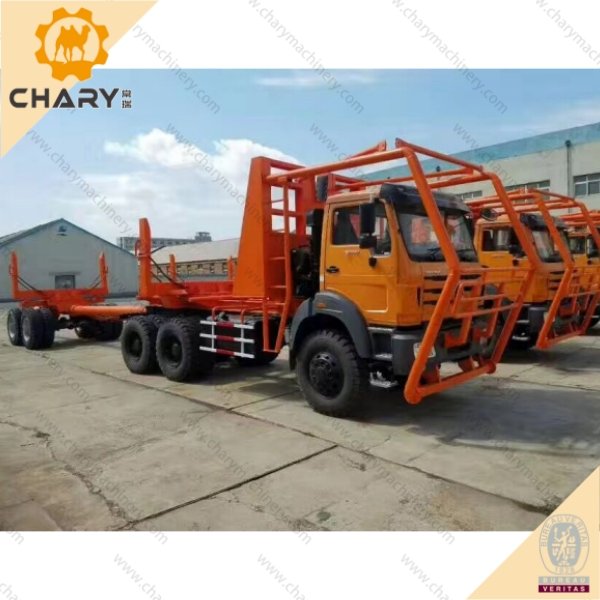

This is a Beiben log truck, specially designed for transporting logs. It adopts a heavy-duty 6×6 off-road chassis with strong traction and good cross-country performance. The log racking structure is sturdy and reliable, equipped with spare tire brackets to fix timber safely. Suitable for forest areas, mountain roads and harsh working conditions.
1 | Overall dimension LxWxH (mm) | Length | 8940 |
Width | 3400 | ||
height (without load) | 4430 | ||
2 | Transport bracket dimension (mm) | length | 2800 |
width | 3270 | ||
height (without load) | 3060 | ||
3 | Axle no (mm) | 2 | |
4 | Wheelbase (mm) | 1550 | |
5 | Cross beam height | 1200mm | |
6 | Rated loading (Ton) | 50 | |
7 | Main parameters | Axle | 16T AXLE |
Rim | 8.5-24 rim 8pcs | ||
Tyre | 12.00-24 8pcs | ||
Beam | Q345 | ||
Towing bar | 8m length , 270mm (diameter) | ||
Air brake chamber | Double chamber 4 pcs. | ||
Suspension | One spot strengthened suspension | ||
Front fence | Height 2100mm。 | ||
Swing support | Loading capacity 40T | ||
Accessory | Signal Light | ||
Column | Height 1200mm, width215mm. | ||
Hook | Strengthened | ||
