Type

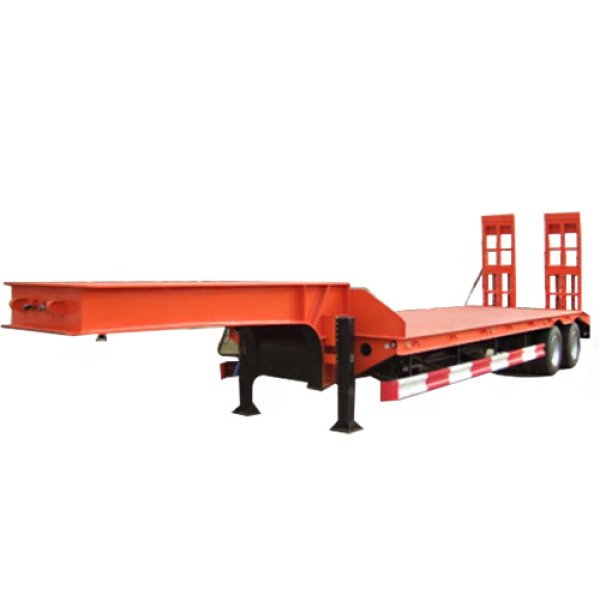

2-Axle Low Bed Semi Trailer

Function

Carries excavator, crawler crane and other large machine

Loading Weight

40 tons

Overall Dimension

12500mm (L) *3000mm (W) *2950mm (H)

Effective Loading Length

8300mm

Loading Surface Height

1000mm

Color

RAL 3020 Traffic red (or depend on customer's requirement)

Chassis

Main Beam

Q345, 500mm deep submerged arc welded I-beam consisting of 18mm upper plate, 20mm down plate and 10mm web

Boundary Beam

20# channel steel (inside out), material: Q235

Cross Beam

14# channel steel, material: Q235

Bearing Beam

10# channel steel, material: Q235

Platform

4mm thickness checkered plate

Traction Pin

Size: 3.5"(90#), bolt-in type, made in China

Land Gear

Double-side operation type, lifting capacity 28T, made in China

Axle

FUWA Brand 2×13ton, track 2180mm, made in China

Suspension Type

Mechanical tandem suspension

Leaf Spring

10-leaf spring, 90mm width, 16mm thickness

Tire

Triangle Brand, model 8.25R20, 9sets (include one spare tire)

Rim

6.5-20, 9sets (include one spare rim)

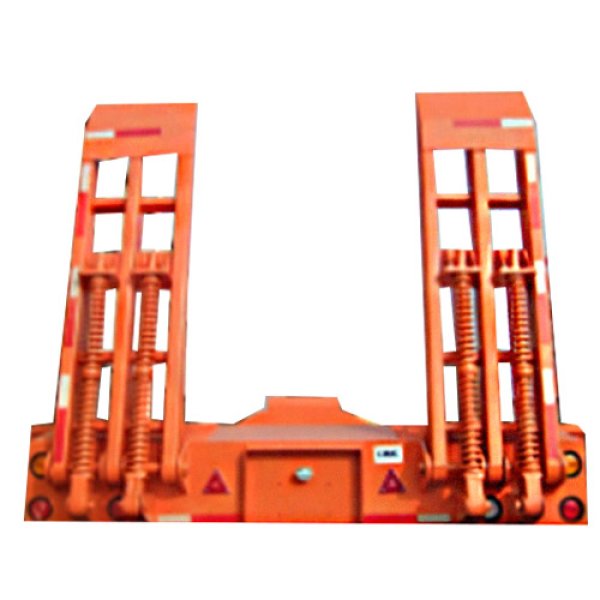

Rear Ladders

Dual-spring-assisted ladders, 650mm width

Accessories

Brake

Dual line pneumatic brake system, 4 dual air-brake chambers

ABS

WABCO Brand, 2S/2M

Tool Box

1 unit

Spare Tire Carrier

2 units

Air/Elec. Connector

ISO Standard air connector, 12V 7 pin plug socket, LED lighting system with modular wiring harness

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Others

One “LONG VEHICLE” sign on rear end, conspicuity tape

Transport Treatment

Painting

Sandblasting treatment before painting, vehicle special-used paint, one time primer and two times topcoat

Anticorrosion

Wax spray treatment to prevent corrosion during the ocean transportation
