5 Ton Combined Road Roller | Tire & Drum Compactor for Asphalt Pavement

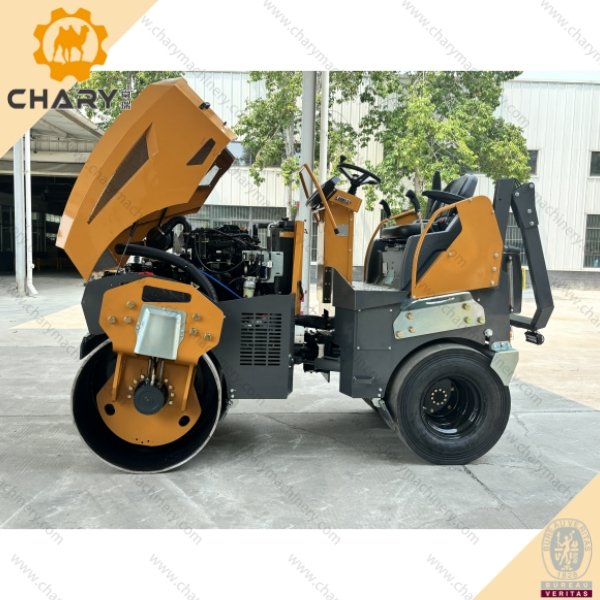

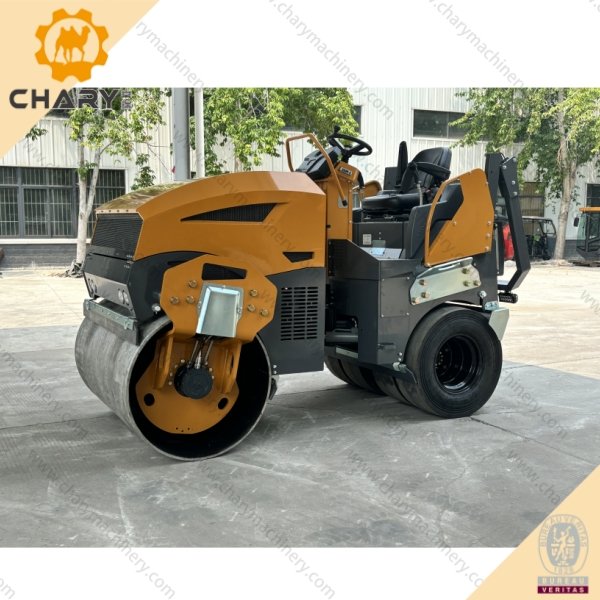

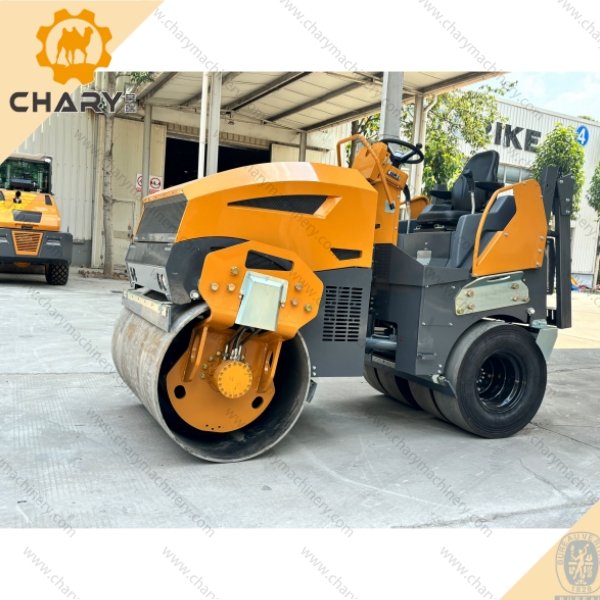

This 5 ton combined road roller integrates front steel drum and rear rubber tires. It delivers excellent compaction effect for asphalt, gravel and soil. Compact body, flexible operation, widely used in road repair, parking lot and small construction projects.
FEATURES
1.Equipped with famous brand power, quality assurance,superior performance.
2. Eagle-eye body design, wide field of vision beautiful and generous.
3.lmported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
4.LED Display Dashboard.
5.Front and rear lighting & warning lights, can be constructed at night.

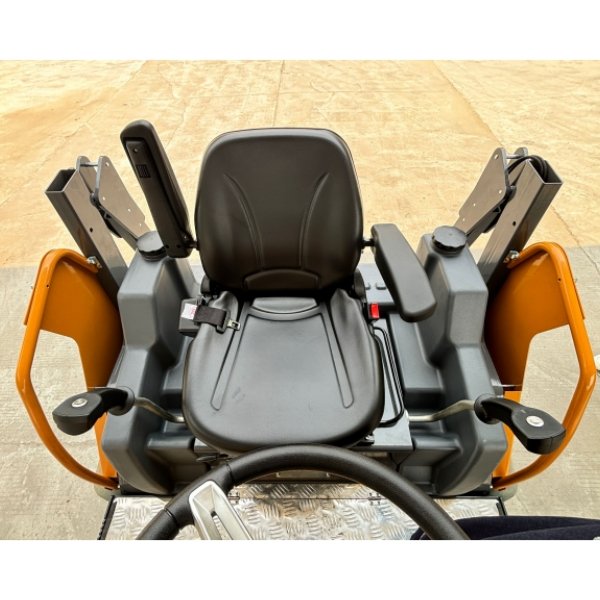

6.Ergonomic driving.
7.The product has passed the CE certification, and the design of the Red Star Award.
8.The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient.
Model | CR5000 |
Operating weight | 5000kg |
Static line load | 140N/cm |
Working width | 1580mm |
Overall length | 3000/2905mm |
Overall height | 2025/2680mm |
Turning radius | 4380mm |
Drum width | 1400mm |
Drum diameter | 900mm |
Wheelbase | 1960mm |
Steel drum thickness | 17mm |
Staggered wheel | 50mm |
Tire size | 10.5/80-16 |
Total tire width | 1340mm |
Number of tires | 4pcs |
Supporting method | Middle support/Both sides support |
Engine brand | Yanmar |
Engine model | 4TNV88 |
Engine type | Diesel inline water-cooled four-stroke |
Number of cylinders | 4 |
Output Power | 34.5kW |
Rotating speed | 3000rpm |
Electrical Equipment | 12V |
Drive mode | Hydraulic motor drive |
Speed, infinitely variable | 0-12km/h |
Theoretical gradeability (vibration on/off) | 35/40% |
Working brake | Variable displacement pump |
Steering method | Hydraulic cylinder, articulated steering |
Steering system | Swing articulated |
Vibrating drum | Front |
Drive form | Hydraulic motor |
vibration frequency | 50Hz |
Vibration amplitude | 0.5mm |
Exciting force | 68kN |
Type of sprinkling | Intermittent pressure spray |
Hydraulic oil capacity | 60L |
Fuel capacity | 44.5L |
Water tank capacity | 180L |
Overall length | 2905mm |
Working width | 1580mm |
Overall height | 2680mm |
Drum diameter | 900mm |
Drum width | 1400mm |
Wheel base | 1960mm |
