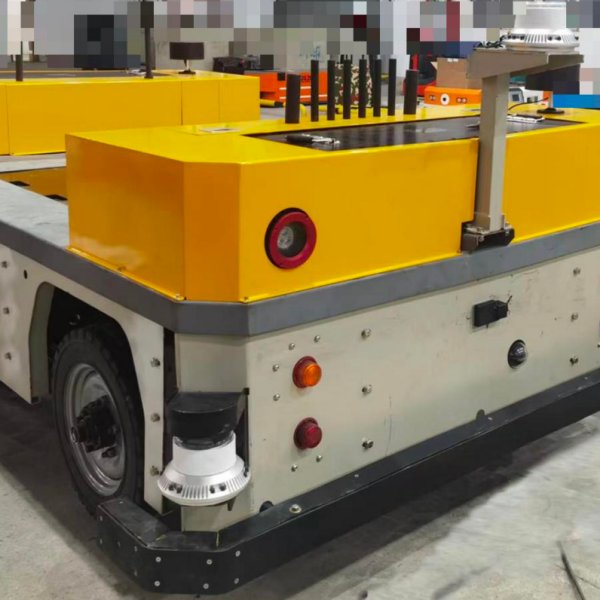

1 Ton Compact Explosion-Proof AGV | Laser + IMU Guided Automated Guided Vehicle
1 Ton Payload in Compact Form: Ideal for light-duty material handling in confined hazardous spaces.
Dual Gas & Dust Explosion-Proof Certification: Compliant with both Ex IIB (gas) and Ex IIIC (dust) standards.
Laser + IMU Hybrid Navigation: Delivers precise, reliable positioning without floor markers.
Rugged Low-Profile Design: 720mm height allows operation in low-clearance areas.
Balanced Endurance: 19.2kWh battery provides up to 30km range for multi-shift operations.
Special Truck
1 Ton Compact Explosion-Proof AGV | Laser + IMU Guided Automated Guided Vehicle1 Ton Payload in Compact Form: Ideal for light-duty material handling in confined hazardous spaces.
Dual Gas & Dust Explosion-Proof Certification: Compliant with both Ex IIB (gas) and Ex IIIC (dust) standards.
Laser + IMU Hybrid Navigation: Delivers precise, reliable positioning without floor markers.
Rugged Low-Profile Design: 720mm height allows operation in low-clearance areas.
Balanced Endurance: 19.2kWh battery provides up to 30km range for multi-shift operations.
Main Specification | |
Model | PXDYAGV01（Explosion-proof） |
Overall Dimensions | 10000mm (L) × 1400mm (W) × 500mm (H) |
Maximum Speed | 3.6km/h (Automatic operation) |
Maximum Gradeability | 7°, fully loaded |
Maximum Load | 1T |
Minimum Turning Radius | 5m |
Superstructure Type | Flatbed |
Navigation Method | Laser + IMU |
Battery Capacity | 19.2kWh |
Operating Range | 30km |
| Explosion-proof Rating | Ex db eb ib mb s IIB T4 Gb / Ex ib mb s tb IIIC T130°C Db（Certified for gas and dust hazardous areas） |
