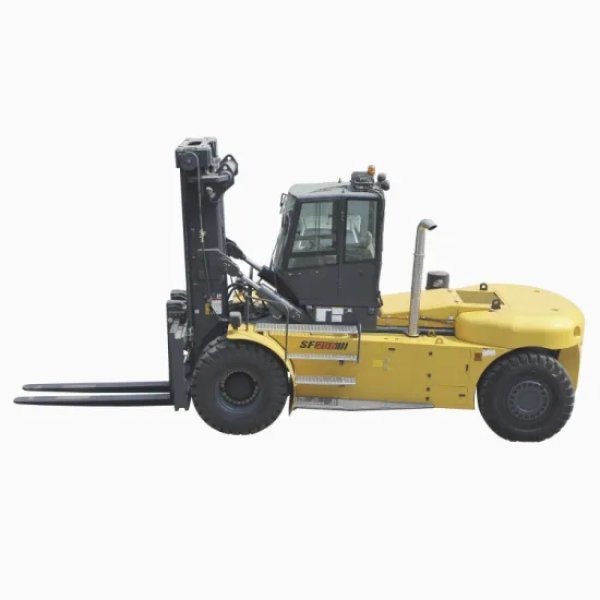

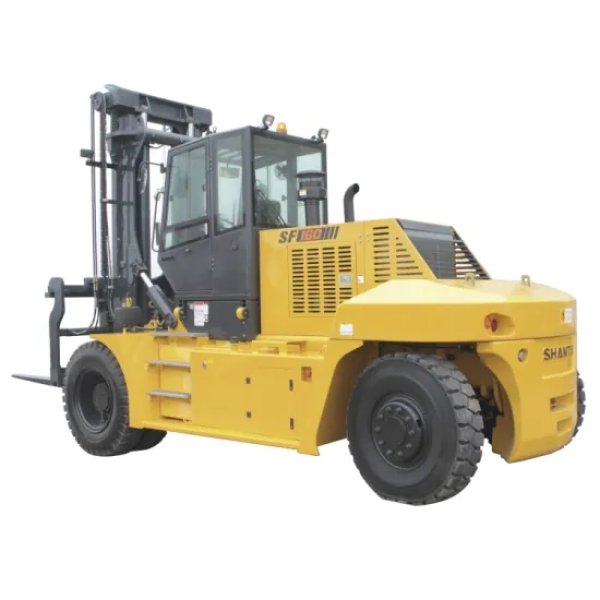

16 Ton Diesel Forklift

SF160 -SHANTUI FORKLIFT 16 Ton Diesel Forklift

Linda

SF160 -SHANTUI FORKLIFT
STANDARD DIMENSIONS
General	Model		SF160		unit
	Load capacity		16000		Kg
	load center		1200		mm
	Power type		Diesel
Dimensions	Lift size		4000		mm
	Fork size		2400x200x100		mm
	Mast tilt angle		/6/10		°
	Front overhang		900		mm
	Overall dimensions	Length to face of fork	7850		mm
		Overall width	2560		mm
		Overall height fork lowered	3750		mm
		Overhead guard height	3210		mm
	Turning radius		5175		mm
Performance	travel speed(full load/no load)		28/30		Km/h
	Lift speed with load		350		mm/sec
	Max.gradeability		28		%
	Self weight		23200		Kg
Wheel&tires	Tires	Front	12.00-20-20PR
		Rear	12.00-20-20PR
	tread	Front	1904		mm
		Rear	2000		mm
	Wheelbase		3750		mm
	Min.ground clearance(mast)		260		mm
Drive units&control	Engine	Model	Cummins QSB6.7	WEICHAI ENGINE
