8 Ton Diesel Forklift

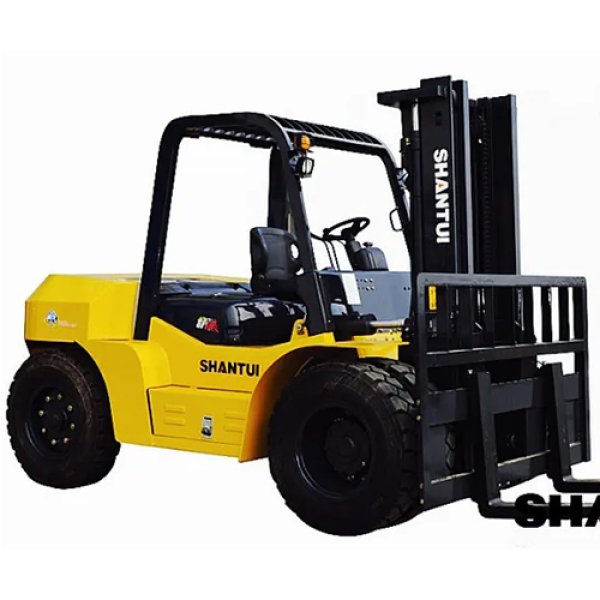

8 Ton Diesel Forklift with Japan Isuzu Engine

SF80AC
General	Model			SF80		unit
	Load capacity			8000		kg
	Load center			600		mm
	Power type			Diesel
Dimensions	Lift height			3000		mm
	Lift height for free			190		mm
	Fork size			1220×170×70		mm
	Mast tile angle			6/12		deg
	Front overhang			681		mm
	oversize	overall length		5201		mm
		overall width		2230		mm
		overall height mast lowered		2700		mm
		overall height mast raised		4130		mm
		overall height mast raised		2497		mm
	Min. turning radius			3700		mm
	Min.right angle aisle width			3340		mm
Performance	Full load/no load		travel speed	26/28		km/h
			Lift speed	495		km/h
	Self weight			10800		kg
	Max.gradeability full load /no load			20/15		%
wheel and tires	tires	front		9.00-20-14PR
		rear		9.00-20-14PR
	tread	front		1600		mm
		rear		1722.5		mm
	wheelbase			2500		mm
	ground clearance	mast		245		mm
		frame		240		mm
Drive units and control	Engine	Model		CY6102BG-36A	ISUZU ENGINE
