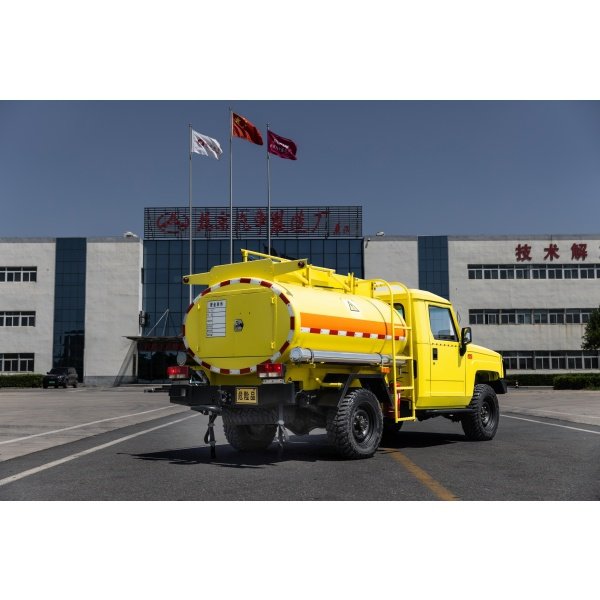

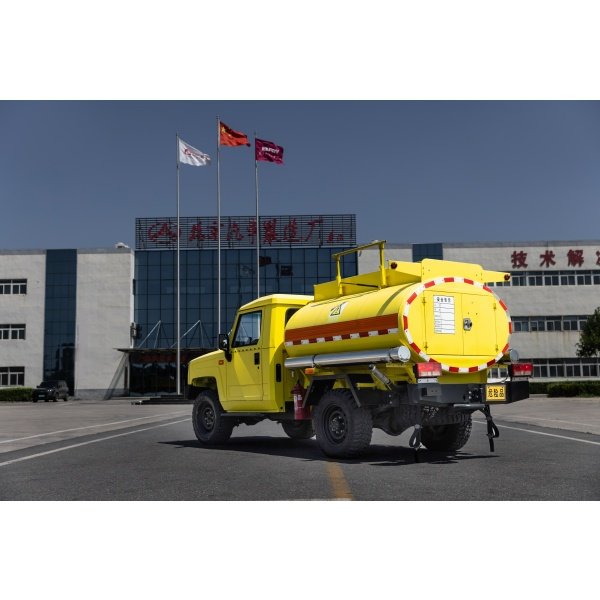

Diesel Trackless Fuel Transport Vehicle CY-2000(A)
This KA-certified explosion-proof mine hazardous liquid utility vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive, equipped with hydraulic wet brake to meet safety standards for flammable fuel transportation in mines.
With an effective 2000L tank capacity, this underground trackless fuel truck is specially designed for safe refueling and diesel supply for mining equipment in open-pit and underground mines, with all tank safety configurations customizable.
Products
Diesel Trackless Fuel Transport Vehicle CY-2000(A)This KA-certified explosion-proof mine hazardous liquid utility vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive, equipped with hydraulic wet brake to meet safety standards for flammable fuel transportation in mines.
With an effective 2000L tank capacity, this underground trackless fuel truck is specially designed for safe refueling and diesel supply for mining equipment in open-pit and underground mines, with all tank safety configurations customizable.
Main Specification | |
Overall Dimensions | 5350mm(L) × 1850mm(W) × 2200mm(H) |
Wheelbase | 3035 mm |
Front/Rear Track | 1540 mm |
Number of Doors | 2 |
Seating Capacity | 2 seats |
Fuel Tank Capacity | 75 L |
Curb Mass | 2900 kg |
Gross Vehicle Mass | 4650 kg |
Maximum Gradeability | 14° |
| Effective Tank Volume | 2000 L |
Maximum Traction Force | ≥20 kN |
| Minimum Turning Radius (Outer Edge) | 8.5 m |
| Minimum Ground Clearance | 210 mm |
| Tire Specification | LT265/70R17 |
| Engine Model | 4KH1-TCF40 |
| Engine Manufacturer | ISUZU (China) Engine Co., Ltd. |
| Displacement | 2999 mL |
| Intake Mode | Turbocharged |
| Transmission | 3-speed Manual |
| Rated Power/Speed | 95kW/2900r/min |
| Max. Torque/Speed | 320Nm/1700-2800r/min |
| Fuel Type | Diesel |
| 4WD Mode | Part-time Four-wheel Drive |
| Front/Rear Suspension | Leaf Spring Non-independent Suspension |
| Steering System | Hydraulic Power Steering |
| Front/Rear Brake Type | Hydraulic Wet Brake |
| Parking Brake Type | Spring Brake with Hydraulic Release |
| Note: Other configurations can be CUSTOMIZED according to customer requirements. | |
