4x4 Double Cab Water Supply Sprinkler Fire Truck|Off-Road Forest Wildfire Tanker
Part-time 4WD design handles complex mountain and muddy forest roads
Double cab layout seats 5 people to transport fire crew and operators together
1.32m³ water tank, fast fill/drain, water cannon range ≥25m, pump flow 100L/min
Turbo diesel power, max speed 120km/h, National VI emission standard
Optional warning light, megaphone and wire reel for forest fire rescue
Products
4x4 Double Cab Water Supply Sprinkler Fire Truck|Off-Road Forest Wildfire TankerPart-time 4WD design handles complex mountain and muddy forest roads
Double cab layout seats 5 people to transport fire crew and operators together
1.32m³ water tank, fast fill/drain, water cannon range ≥25m, pump flow 100L/min
Turbo diesel power, max speed 120km/h, National VI emission standard
Optional warning light, megaphone and wire reel for forest fire rescue

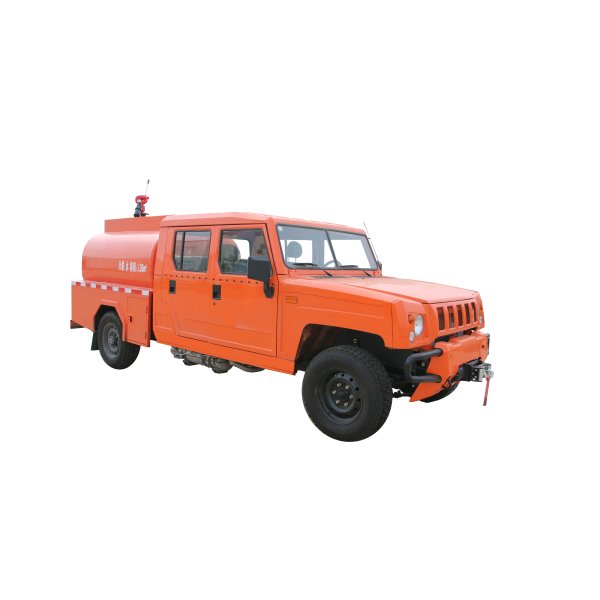

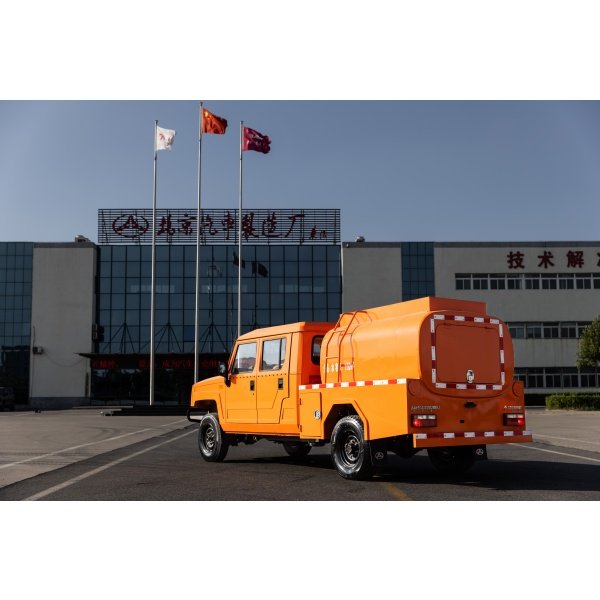

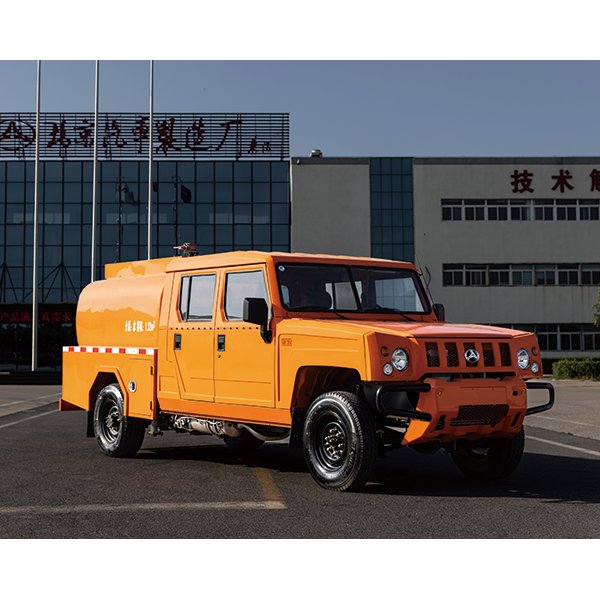

This double-cab 4×4 water supply fire truck serves mountain forest fire fighting and road sprinkling.The part-time four-wheel drive chassis delivers stable off-road performance.

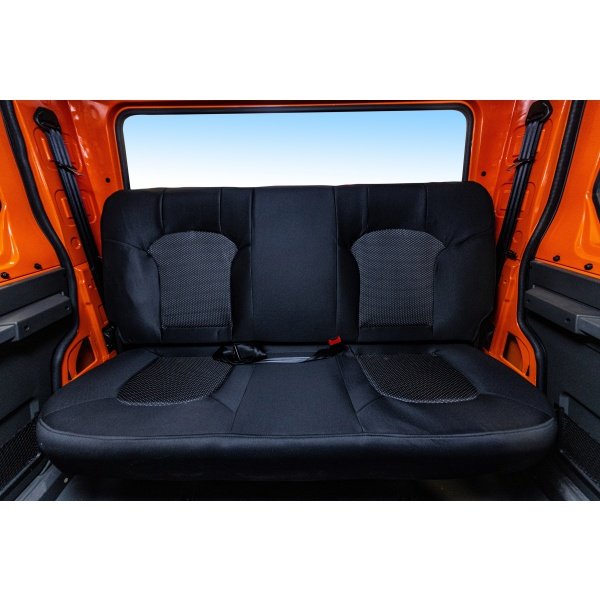

The double-row cabin can hold 5 staff. Equipped with a 1.32m³ water tank, it realizes quick filling and draining, and the water cannon sprays over 25 meters for long-distance fire suppression.
Powered by turbo diesel engine with a top speed of 120km/h, it meets National VI standard. Various rescue accessories are optional for daily forest fire patrol and emergency firefighting.
Main Specification | |
Overall Dimension | 5625×1820×2098mm |
Wheelbase | 3025mm |
Front/Rear Track | 1540/1540mm |
| Curb Weight | 2920kg |
| Gross Weight | 4465kg |
| Seating Capacity | 5 persons |
| Transmission | 5-speed manual gearbox |
| Drive Mode | Part-time 4WD |
| Suspension | Front coil spring, rear leaf spring (9/8+8 pieces) |
| Tire Spec | Front:7.00 R16LT 12PR; Rear:265/75R16LT 10PR |
| Max Speed | 120km/h |
| Fuel Type | Diesel |
| Engine Model | YCT24140-60A |
| Displacement | 2390mL |
| Max Power / RPM | 103kW / 2950rpm |
| Max Torque / RPM | 350N·m / 1400-2400rpm |
| Intake Type | Turbocharged |
| Emission Standard | Euro VI |
| Fuel Tank Capacity | 70L |
Special Equipment
Water tank volume: 1.32m³; filling time ≤6min, draining time ≤5min, water cannon range ≥25m, pump flow 100L/min
Optional fittings: warning light, megaphone, wire reel and other auxiliary devices
