PXDYAGV01 1 Ton Explosion-Proof Flatbed AGV with Automatic Rain Cover

Products

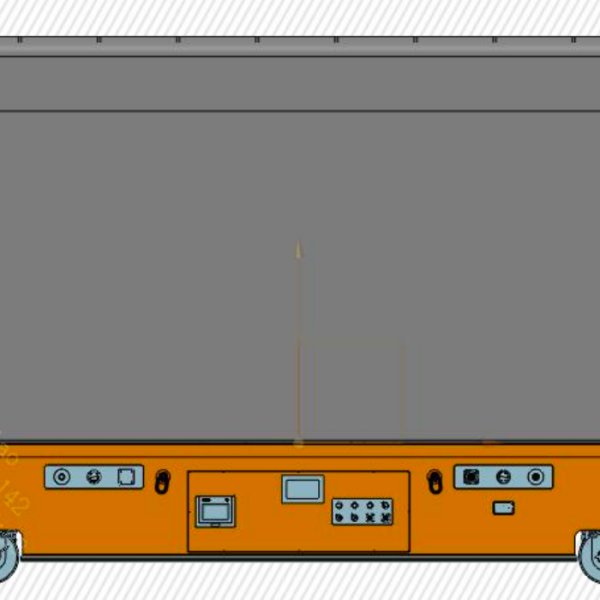

1 Ton Explosion-Proof AGV| Laser-Guided Flatbed with Automatic Rain Cover
1 Ton Explosion-Proof AGV| Laser-Guided Flatbed with Automatic Rain Cover

1 Ton Explosion-Proof AGV| Laser-Guided Flatbed with Automatic Rain Cover

  • 1 Ton Payload with Weather Protection: Automatic telescopic rain cover shields cargo from rain, dust, and sunlight.

  • Dual Gas & Dust Explosion-Proof Certification: Compliant with both Ex IIB (gas) and Ex IIIC (dust) hazardous area standards.

  • Laser + IMU Hybrid Navigation: Delivers precise, reliable positioning without floor markers.

  • Rugged All-Weather Design: Suitable for both indoor and outdoor hazardous environments.

  • Balanced Endurance: 19.2kWh battery provides up to 30km range for multi-shift operations.

Main Specification

Model

PXDYAGV01(Explosion-proof)

Overall Dimensions

5200mm (L)  ×2700mm (W) × 3700mm (H)

Maximum Speed

3.6km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

1T

Minimum Turning Radius

5m

Superstructure Type

Flatbed with Automatic Telescopic Rain Cover

Navigation Method

Laser + IMU

Battery Capacity

19.2kWh

Operating Range

30km

Explosion-proof RatingEx db eb ib mb s IIB T5 Gb / Ex ib mb s tb IIIC T100°C DbCertified for gas and dust hazardous areas
