PXAGV09B 9 Ton Explosion-Proof Omnidirectional Flatbed AGV

Products

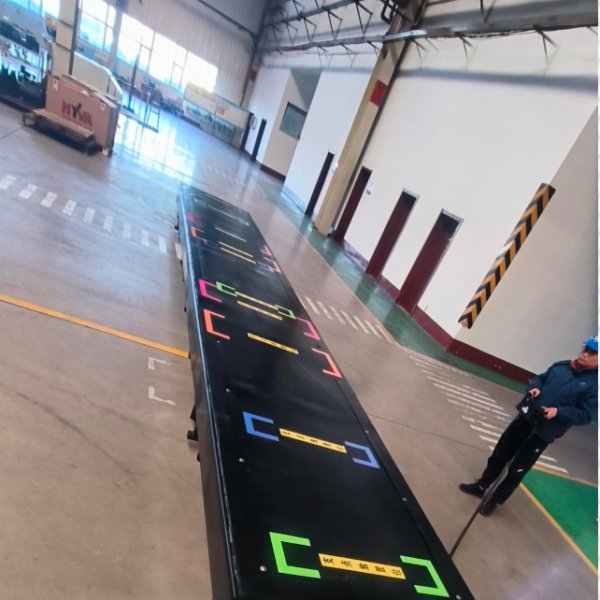

9 Ton Explosion-Proof Omnidirectional AGV| Remote-Controlled Low-Profile Automated Guided Vehicle
9 Ton Explosion-Proof Omnidirectional AGV| Remote-Controlled Low-Profile Automated Guided Vehicle

9 Ton Explosion-Proof Omnidirectional AGV| Remote-Controlled Low-Profile Automated Guided Vehicle

  • 9 Ton Payload in Explosion-Proof Design: Certified for use in hazardous environments with flammable gases and dusts.

  • Ultra-Long Low-Profile Flatbed: 10000mm length for transporting long and bulky materials in industrial settings.

  • Omnidirectional Mobility: Zero turning radius allows flexible movement in tight spaces.

  • Dual Explosion-Proof Certification: Compliant with both gas (IIB) and dust (IIIC) hazardous area standards.

  • Simple Remote Control Operation: Ideal for material handling in potentially explosive factories, mines, and chemical plants.

Main Specification

Model

PXAGV09BExplosion-proof

Overall Dimensions

10000mm (L)  × 1400mm (W) × 500mm (H)

Maximum Speed

3.6km/h (Automatic operation)

Maximum Gradeability

3°, fully loaded

Maximum Load

9T

Minimum Turning Radius

Omnidirectional Movement

Superstructure Type

Flatbed

Navigation Method

Remote Control

Battery Capacity

7.2kWh

Operating Range

5km

Explosion-proof RatingEx d IIB T4Gb / Ex b IIIC T130°C Db
