4×4 Explosion-Proof Fire Scene Reconnaissance Vehicle | All-Terrain Toxic Gas Monitoring Fire Inspection Truck
4×4 all-terrain explosion-proof armored vehicle specially developed for entering high-risk toxic and flammable fire disaster sites.
Positive pressure cabin maintains ≥140Pa internal overpressure to isolate carbon monoxide, hydrogen sulfide and other toxic combustible gases.
Multi-mode observation camera equipped with white light, halogen and infrared lamps to realize all-day long-distance fire scene monitoring.
Built-in laser ranging device covering 10m–300m and 40m range fire water monitor for on-site emergency fire suppression.
High-power 210kW engine delivers 120km/h max speed with excellent cross-country and stable braking performance for complex fire access roads.
Products
4×4 Explosion-Proof Fire Scene Reconnaissance Vehicle | All-Terrain Toxic Gas Monitoring Fire Inspection Truck
4×4 all-terrain explosion-proof armored vehicle specially developed for entering high-risk toxic and flammable fire disaster sites.
Positive pressure cabin maintains ≥140Pa internal overpressure to isolate carbon monoxide, hydrogen sulfide and other toxic combustible gases.
Multi-mode observation camera equipped with white light, halogen and infrared lamps to realize all-day long-distance fire scene monitoring.
Built-in laser ranging device covering 10m–300m and 40m range fire water monitor for on-site emergency fire suppression.
High-power 210kW engine delivers 120km/h max speed with excellent cross-country and stable braking performance for complex fire access roads.

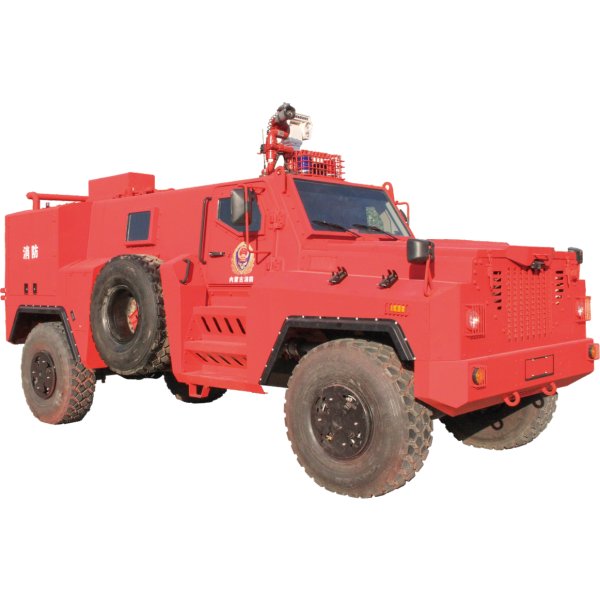

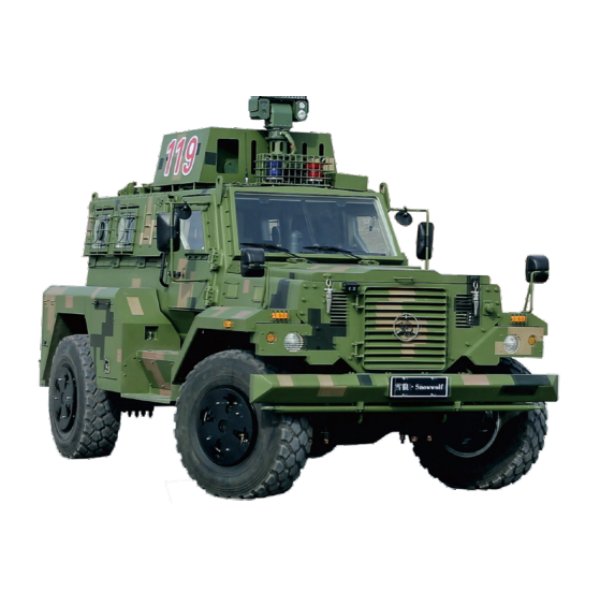

This 4×4 explosion-proof fire reconnaissance vehicle has two versions: standard type and extended type for optional selection according to actual demands.
The fully enclosed armored positive pressure cabin prevents toxic and combustible gas intrusion, protecting operators during close-range fire hazard investigation.
It integrates multi-spectrum monitoring camera, laser distance measuring instrument and short-range fire extinguishing water monitor, realizing real-time fire condition observation, hazard distance measurement and emergency fire suppression.
Equipped with 4×4 all-terrain drive, it can rapidly access mountain, chemical plant and urban complex fire sites to complete early reconnaissance and risk assessment tasks for fire rescue command.
Main Specification
|
Full Load Mass | ≤13.5T |
Rated Occupants | 2 drivers + 2 inspectors (4 persons total) |
Overall Dimension(L×W×H) | Length ≤6800mm; Width ≤2700mm; Height ≤2550mm (to roof platform) / ≤3350mm (to camera equipment top) |
| Engine Rated Power | 210kW |
| Maximum Speed | ≥120km/h |
| Vertical Obstacle Crossing Height | ≥400mm |
| Max Lateral Tilt Driving Gradient | ≥17° |
| Braking Distance | ≤10m (from 30km/h to 0km/h) |
| Minimum Turning Diameter | ≤18.5m |
| Steering Mode | Automatic Transmission |
| Superstructure Equipment Performance |
| Cabin Positive Pressure | ≥140Pa (isolates CO, H₂S, O₂, methane, LPG, CO₂) |
| Multi-Spectrum Observation Camera | White light lamp: irradiation distance ≥100m Halogen lamp: irradiation distance ≥100m Infrared lamp: irradiation distance ≥50m |
| Laser Ranging Range | 10m ~ 300m |
| Fire Water Monitor Range | ≥40m |
