PXYPHZ-15B/30B 1.5/3 Ton Explosion-Proof Laser-Guided Stacker AGV

Products
1.5 Ton Explosion-Proof Laser-Guided Stacker AGV Automated High-Level Pallet Handling Vehicle

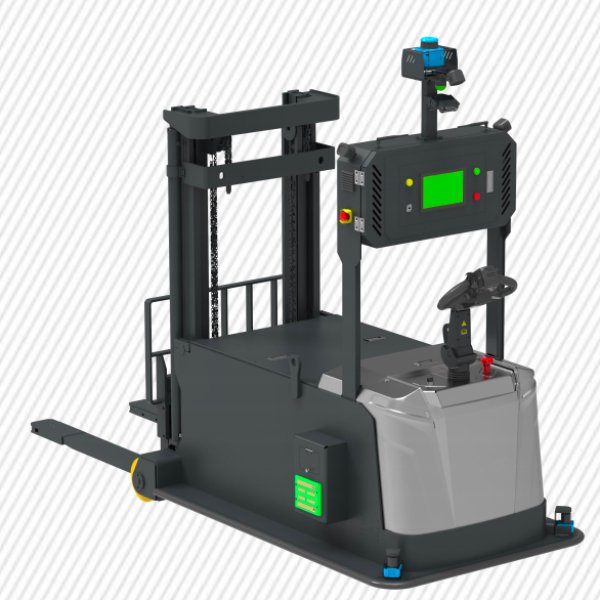

3 Ton Explosion-Proof Laser-Guided Stacker AGV Automated High-Level Pallet Handling Vehicle
1.5 Ton Explosion-Proof Laser-Guided Stacker AGV Automated High-Level Pallet Handling Vehicle
3 Ton Explosion-Proof Laser-Guided Stacker AGV Automated High-Level Pallet Handling Vehicle

1.5/3 Ton Explosion-Proof Laser-Guided Stacker AGV Automated High-Level Pallet Handling Vehicle

  • Dual Capacity Options (1.5T/3T): Ideal for medium-duty material handling and high-level stacking.

  • Laser Navigation: Reliable, marker-free positioning for flexible route planning in large warehouses.

  • Dual Explosion-Proof Certification: Compliant with both gas (IIB) and dust (IIIB) hazardous area standards.

  • Versatile Pallet Compatibility: Handles Chuanjiao-style, Tian-style pallets and material racks.

  • Optional Pallet Offset Adjustment: Automatically corrects vehicle posture during pallet picking for higher accuracy.

  • Fully Customizable: Fork length and lifting height can be tailored to specific applications.

  • High-Level Stacking Capability: Designed for warehouse and production line stacking operations.

Main Specification

Model

PXYPHZ-15B(Explosion-proof)

PXYPHZ-30B(Explosion-proof)

Overall Dimensions

2725mm (L)  × 1295mm (W) × 2500mm (H)

3380mm (L)  × 1370mm (W) × 250mm (H)

Maximum Speed

5.4km/h

5.4km/h

Maximum Gradeability

3°, fully loaded

3°, fully loaded

Maximum Load

1.5T

3T

Minimum Turning Radius

3100mm

3900mm

Superstructure Type

Forklift Stacker Mechanism

Forklift Stacker Mechanism

Navigation Method

Laser

Laser

Battery Capacity

4.8kWh

9.6kWh
Explosion-proof RatingEx IIB T5 Gb / Ex IIIB T95°C DbEx IIB T5 Gb / Ex IIIB T95°C Db
