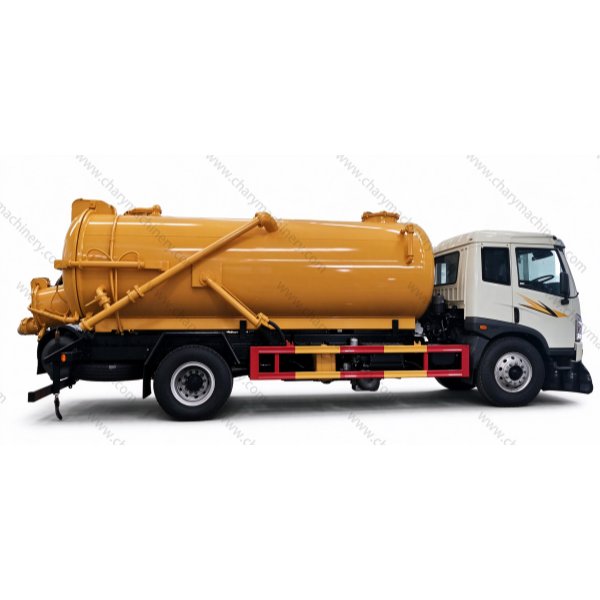

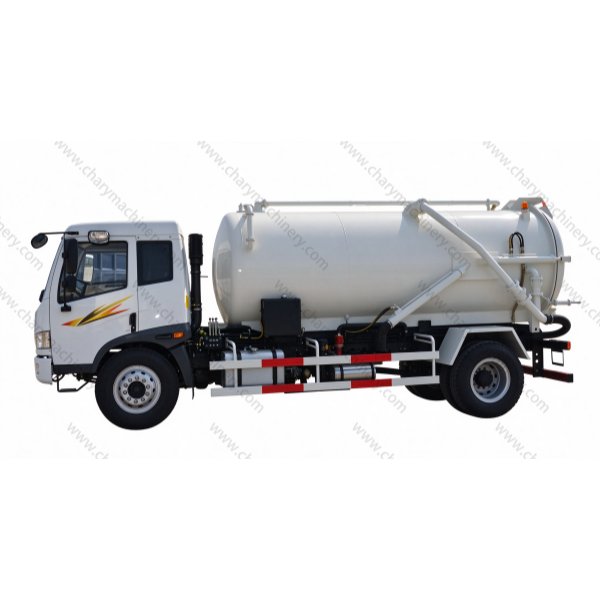

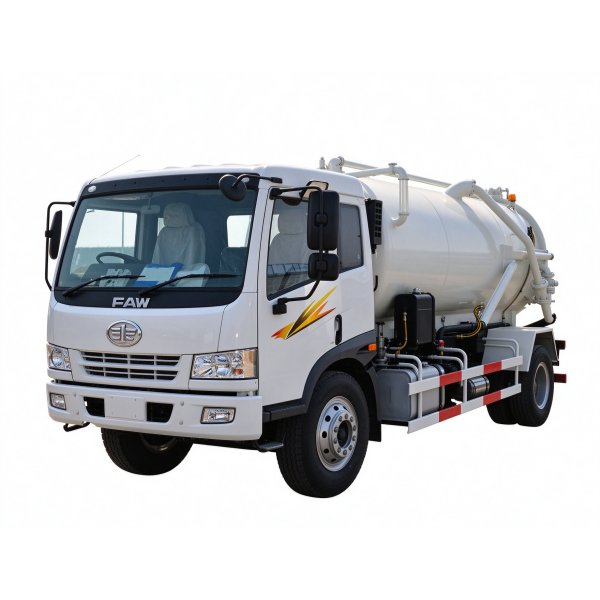

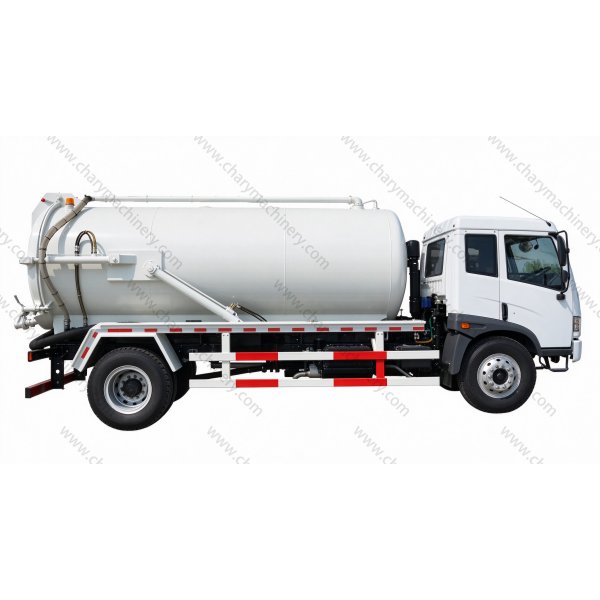

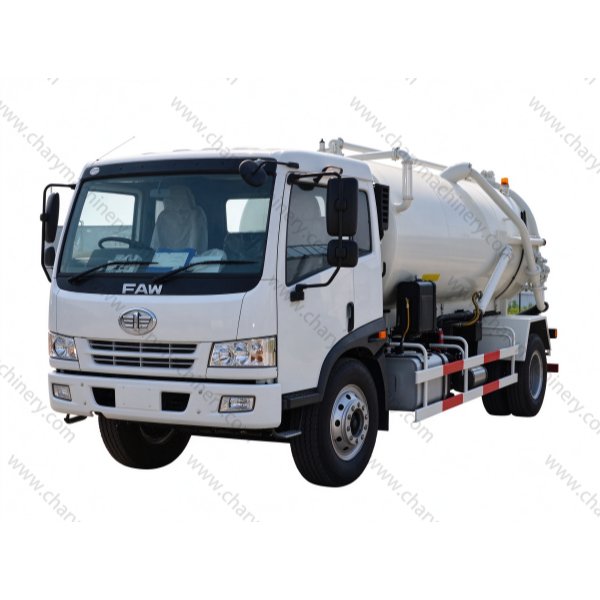

FAW J5K 4X2 10-12m³ Vacuum Sewage Suction Tank Truck
FAW J5K 4×2 vacuum sewage truck: 10–12m³ sealed Q235 steel tank, PTO vacuum pump fills in ≤5min with 5m head and 8m reach; clean suction and controlled discharge for septic, sewer and manure; 185HP diesel, simple easy-service 4×2, 9.00R20 tires, A/C and tank volume customizable, , 30-day delivery.
Products
FAW J5K 4X2 10-12m³ Vacuum Sewage Suction Tank TruckFAW J5K 4×2 vacuum sewage truck: 10–12m³ sealed Q235 steel tank, PTO vacuum pump fills in ≤5min with 5m head and 8m reach; clean suction and controlled discharge for septic, sewer and manure; 185HP diesel, simple easy-service 4×2, 9.00R20 tires, A/C and tank volume customizable, , 30-day delivery.
The FAW J5K 4×2 vacuum sewage truck removes septic sludge, liquid waste and manure quickly and cleanly for municipal sanitation departments, septic service companies and farms. The PTO-driven vacuum pump fills the 10–12m³ sealed carbon-steel tank in under 5 minutes with a suction head of at least 5m and an 8m effective reach, so each job finishes fast and the truck can serve more stops in a day.
| Item | Specification |
|---|---|
| Chassis Model | FAW J5K, 4×2 |
| Vehicle Type | Vacuum Sewage / Septic Suction Tank Truck |
| Emission Standard | Euro 3 (customizable) |
| Engine | CA6DE3-18E3, 6-cyl Inline Turbo Intercooler Diesel, 185HP / 650N.m, 6.618L |
| Gearbox | Manual (model per factory) |
| Axles | Front 6T / Driving 10T |
| Wheelbase | 4500mm |
| Overall Dimensions | 7860×2495×3250mm |
| GVW / Payload / Curb | 16,000kg / 7,500kg / 8,305kg |
| Vacuum Tank | Round Q235A Carbon Steel, ~6mm, 4800×1870mm, 10m³ / 12m³ |
| Vacuum System | PTO + Driveshaft + Vacuum Pump + Hydraulic & Pipework; Full Load ≤5min, Suction Head ≥5m, Effective Reach 8m |
| Tire | 9.00R20 Radial + Spare (std); 9.00-20 Nylon optional |
| Max Speed | 85km/h |
| Cabin | Standard 3-seat, A/C Optional; Paint Customizable |
| Certification | 30-day Delivery; 1-year Warranty |
