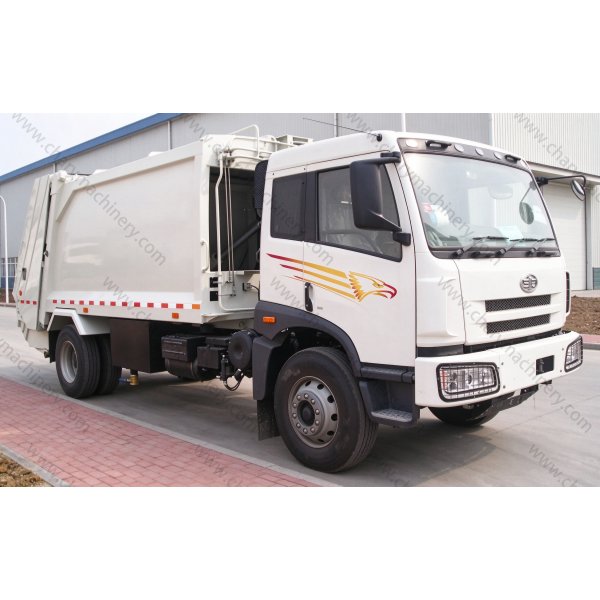

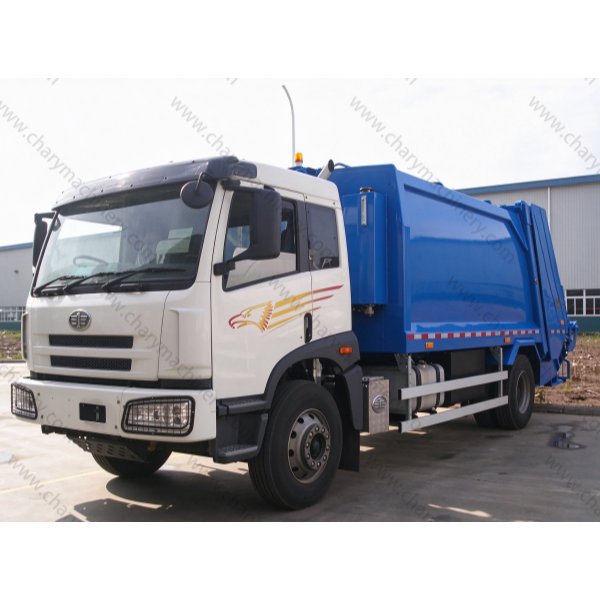

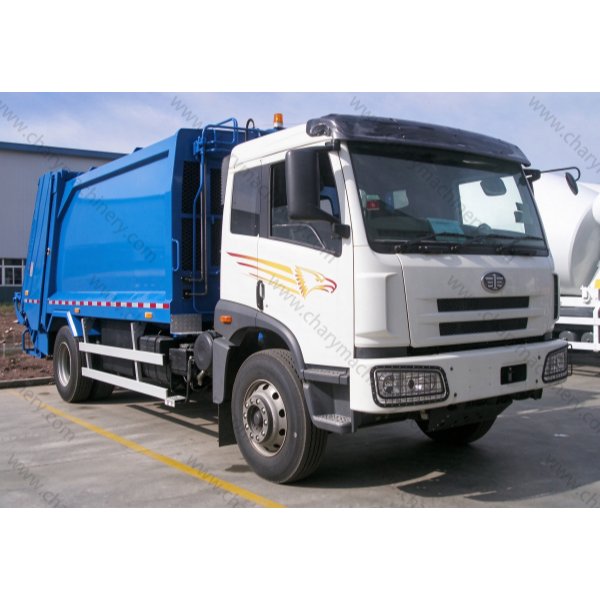

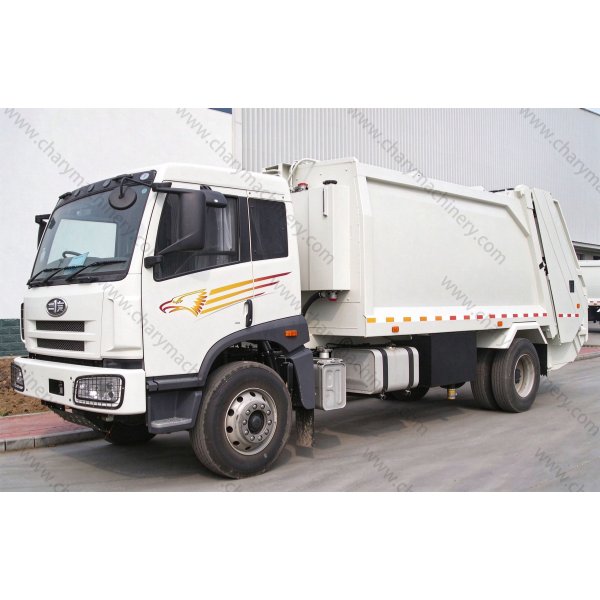

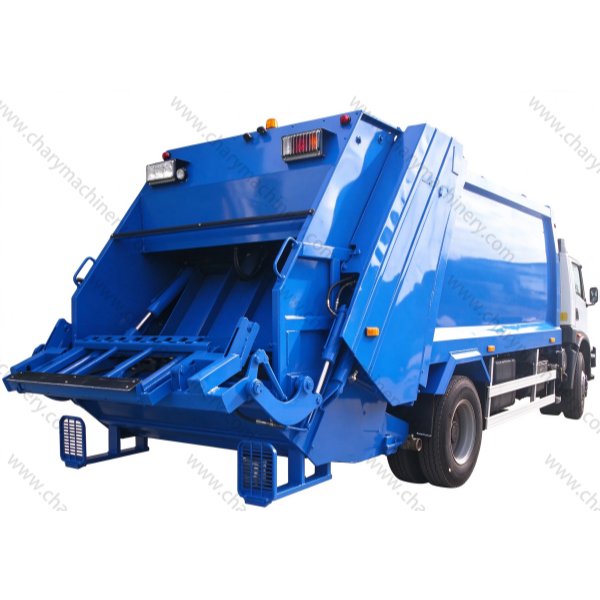

FAW J5M 4×2 Compactor Garbage Truck
he FAW J5M 4x2 compactor garbage truck moves more waste in fewer trips: a 10–18 CBM sealed body compresses rubbish by up to 1:3, with 12–30s loading and under-30s discharge to keep routes fast. Powered by a proven 180HP FAWDE engine with a comfortable A/C floating cab, it is custom-built with your colour and RHD/LHD choice, and backed by a 1-year warranty and overseas service.
Built on the trusted FAW J5M chassis, this 4x2 compactor garbage truck is the reliable choice for municipalities and waste contractors. Its sealed compression body packs 10–18 CBM of waste at up to 1:3 compression, so every trip carries far more rubbish and saves fuel, labour and time on the route.
Item Specification Brand FAW Model FAW J5M Type Compactor garbage truck Drive type 4x2 Driving type RHD / LHD Driver's cab J5M convex floor flat-roofed fully floating cab, with A/C, electric windows and doors Wheel base 3800 mm Overall size (L x W x H) 6935 x 2495 x 3430 mm Engine brand FAWDE Engine model YC6J180-30 Engine type 6 cylinders in-line, pressurized cooling Horsepower / Torque 180 HP / 650 N.m Displacement 6.494 L Emission standard Euro 2(customizable) Engine brake Exhaust valve brake Clutch 430 mm diaphragm type Gearbox Manual, 6 gears Steering Power-assisted steering Tyre brand Double Coin or similar Tyre model 11.00R20 (18PR) Frame 280 x 80 x (8+5) mm Fuel tank 300 L Box volume 10-18 CBM Loading circulation time 12-30 s Rubbish discharging time <= 30 s Oil pressure 19.6 MPa Compressed proportion 1:3 / 1:2 Payload 30 T Usage Dump, swing arm, sealed, hang barrel, compression types Volume (platform attribute) 1000-3000 L Color Customers' optional
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
