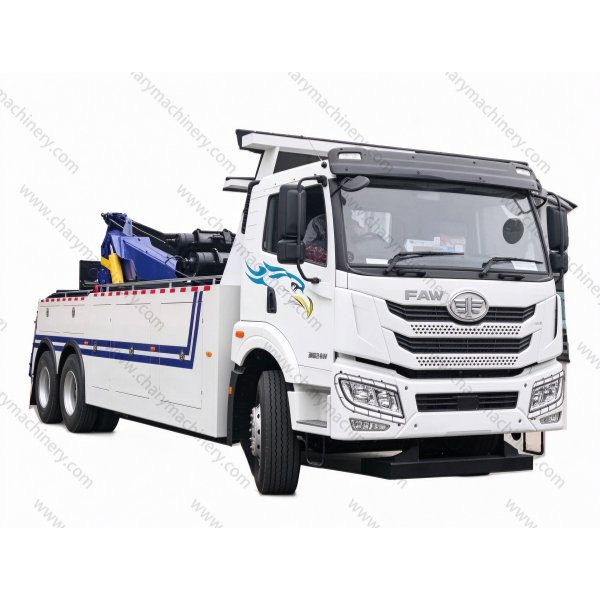

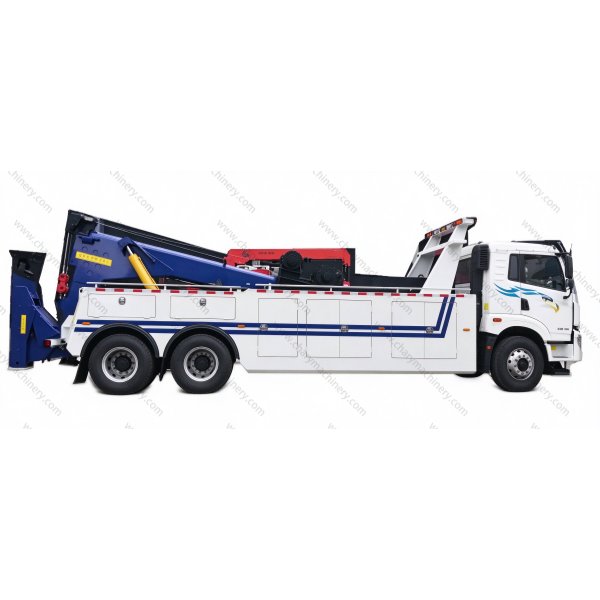

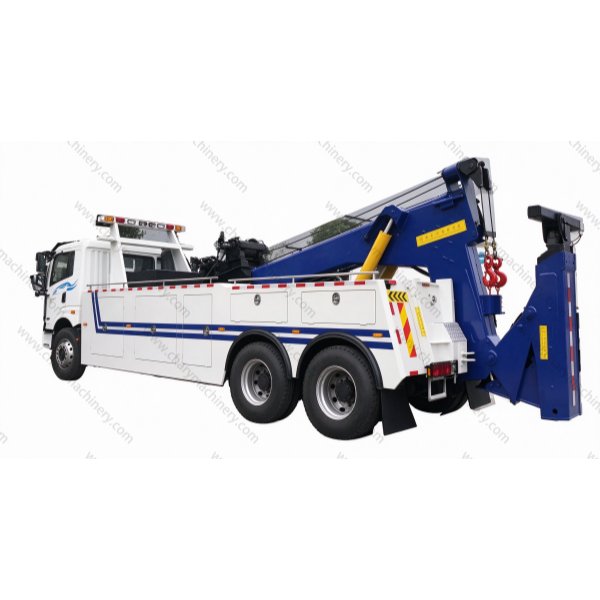

FAW J5M-V 6X4 340HP Heavy Duty Wrecker Tow Truck

FAW J5M-V 6×4 340HP heavy wrecker: lifts and tows heavy trucks and buses with strong boom, 11t underlift and twin 100kN winches; 24t rated towing, stable outriggers for lifting on site; 6×4 chassis handles slopes and rough rescue roads; proven Weichai driveline, easy overseas maintenance; capacity and body layout customizable;MOQ 1, 1-year warranty, overseas service.

Linnea

18663074927

+8618663074927

linnea@charymachinery.com

Inquiry List Add To Inquire Vehicle

The FAW J5M-V 6×4 wrecker is built for heavy vehicle recovery on highways, mining roads, construction sites and fleet yards. Its strong boom and under-lift lift loaded trucks, buses and broken-down heavy vehicles clear of the road, while the twin hydraulic winches pull stalled or overturned vehicles onto the platform smoothly and steadily, so rescue crews can clear an incident quickly and keep traffic moving.

Item	Specification
Vehicle Type	FAW J5M-V 6×4 Heavy-Duty Wrecker Truck, LHD/RHD
Engine	Weichai WP10.340E32, 340HP, Diesel, Euro 2 (Customizable)
Transmission	Fast 9JSD135T, 9-Speed Manual
Wheelbase	5865+1350mm
Frame	300×80×(8+5)mm
Tire	295/80R22.5-18PR
GVW	23,580kg; Fitted Weight 17,450kg
Overall Dimensions	10430×2496×3600mm
Approach / Departure Angle	22° / 20°
Boom Max Lifting	18,000kg; Extension 3300mm; Max Height 6000mm; Max Inclination 40°
Under Lift	Original 11,000kg; Max 6,600kg; Fully Extended 4,200kg; Effective Length 2980mm
Outriggers	Rear Transverse Span 1440mm
Rated Towing Mass	24,000kg
Pulling Force	2×100kN Twin Winch; Cable 40m
