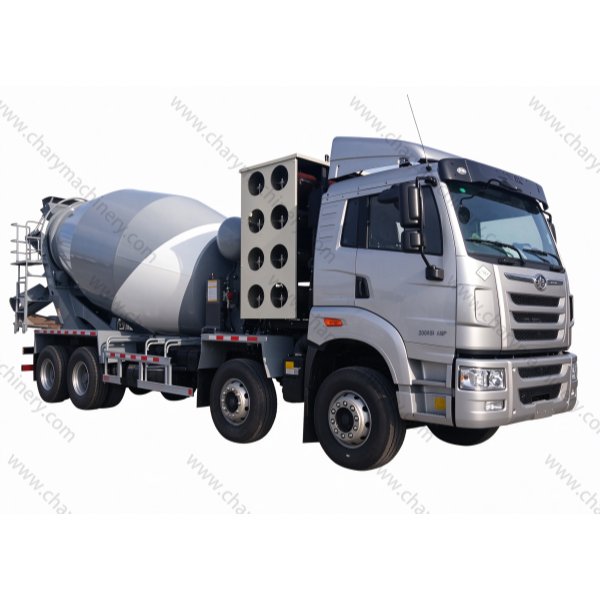

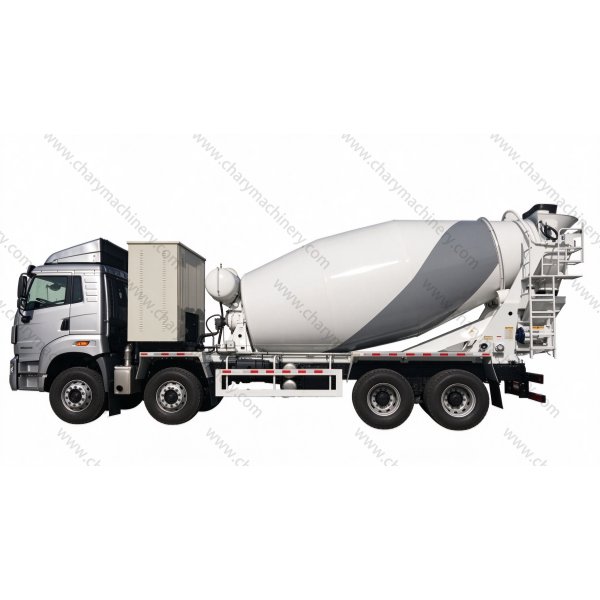

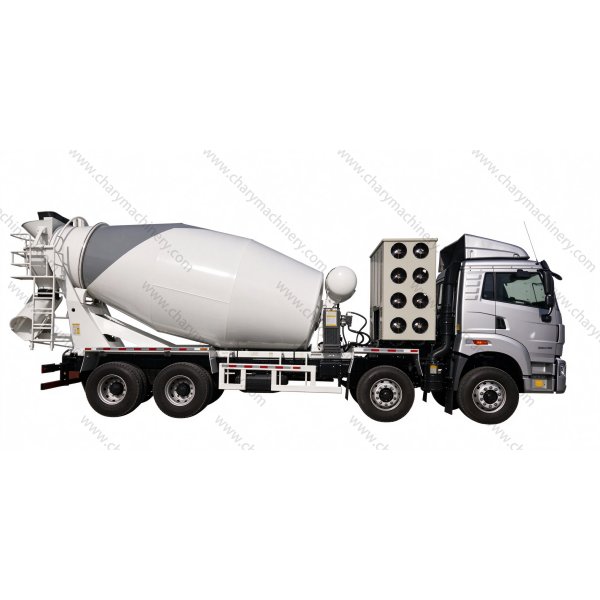

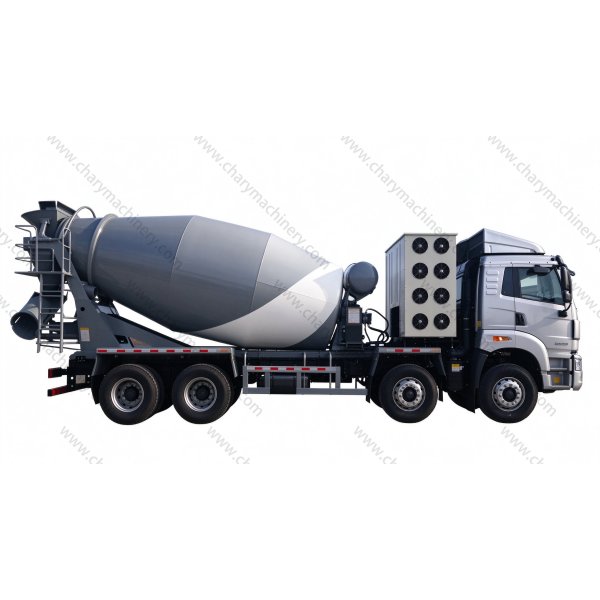

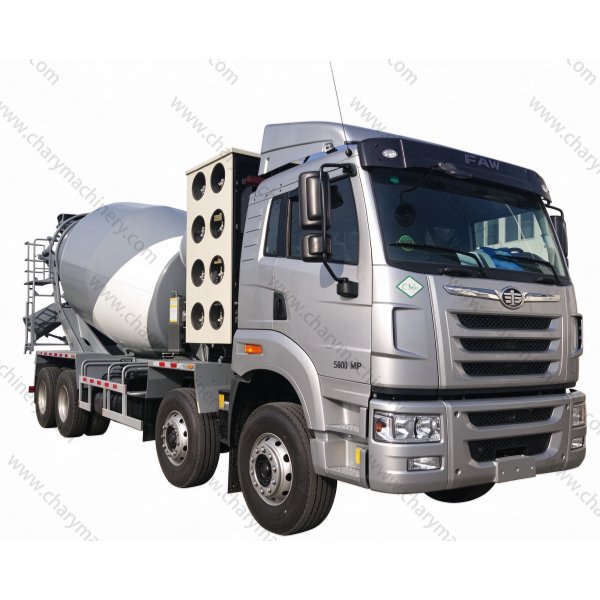

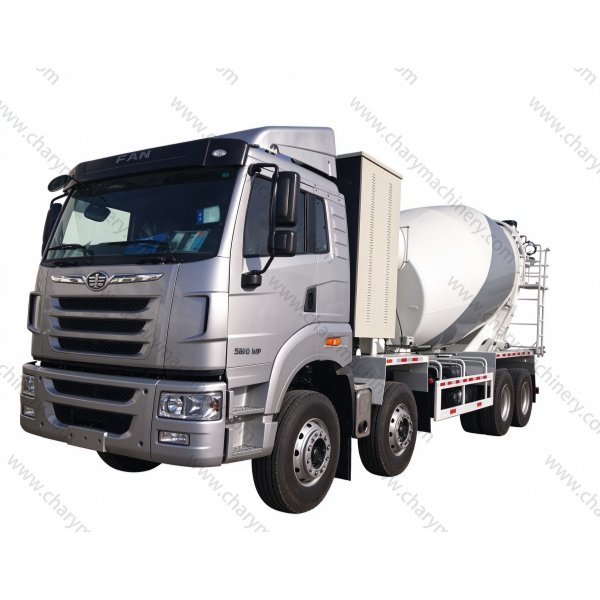

FAW J5P-V 8X4 CNG 380HP Concrete Mixer Truck 1200L Gas

FAW J5P-V 8×4 CNG mixer: 380HP Weichai WP12NG Euro5 with 1200L gas tank for low fuel cost and long range; FAST 12-speed, twin 16T hub-reduction axles for rough site ramps; reinforced frame for steady full-drum carry; long cab with A/C, sleeper and electric lift; CNG, customizable drum, 35-day delivery.

Linnea

18663074927

+8618663074927

linnea@charymachinery.com

Inquiry List Add To Inquire Vehicle

The FAW J5P-V 8×4 CNG concrete mixer cuts running cost on high-volume ready-mix jobs. Running on compressed natural gas instead of diesel, the 380HP Weichai WP12NG engine delivers steady, clean power for repeated mixing cycles and site loops, while the 1200L onboard CNG bank removes range anxiety between gas stations on long mixing routes.

Item	Specification
Vehicle Type	CNG Concrete Mixer / Transit Mixer Truck, 8×4, LHD
Emission / Fuel	Euro 5（customizable） / CNG Natural Gas
Engine	Weichai WP12NG380E51, 6-cyl Inline CNG, 380HP / 1700N.m, 11.596L, Single-point Injection + Oxidation Catalysis
Clutch	Φ430mm Eaton
Gearbox	FAST 12JSD180TA, 12 Forward / 2 Reverse, 1800N.m Input
Front Axle	A1H, 7T×2
Rear Axle	457 Hub-reduction, 16T×2, Drum Brake, Ratio 4.875
Frame	320×90×(8+8), FEA Reinforced
Suspension	Leaf Spring 10/13
CNG Tank	150L×8 = 1200L
Wheelbase	1860+3960+1350mm
Overall Dimensions	12800×2550×3990mm
Tire	315/80R22.5-20PR
Cabin	J5P V Long Cab, Auto A/C, 1 Sleeper Bunk, Electric Cabin Lift
Color	Customizable
