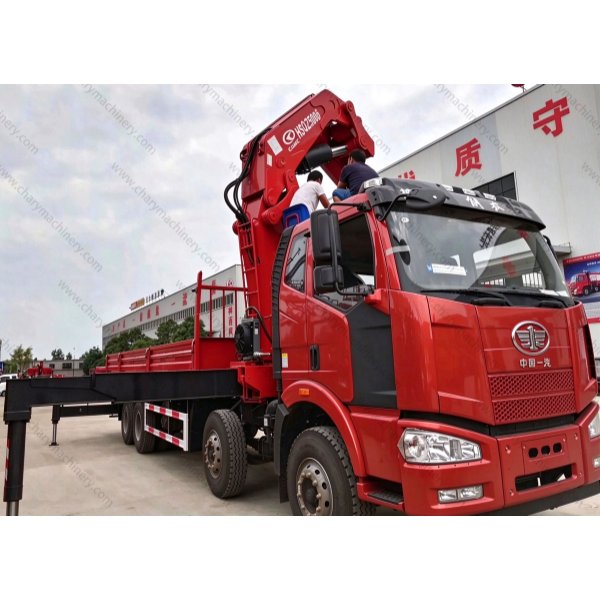

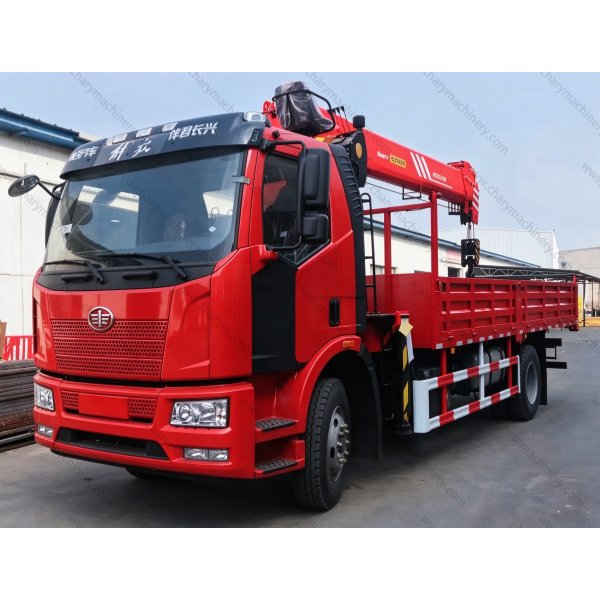

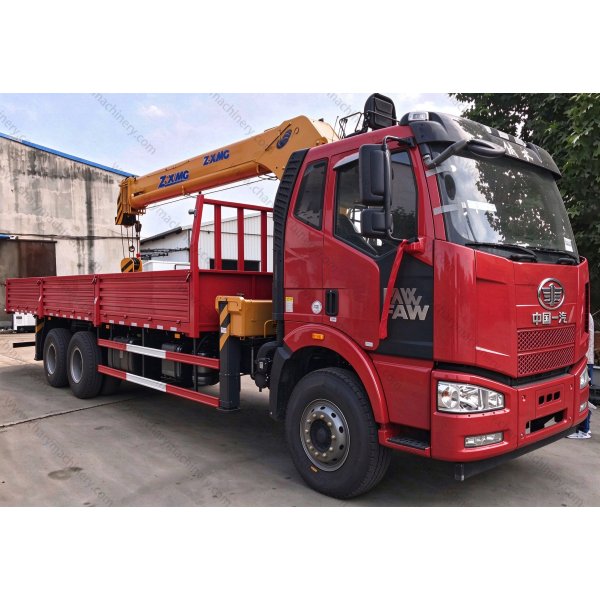

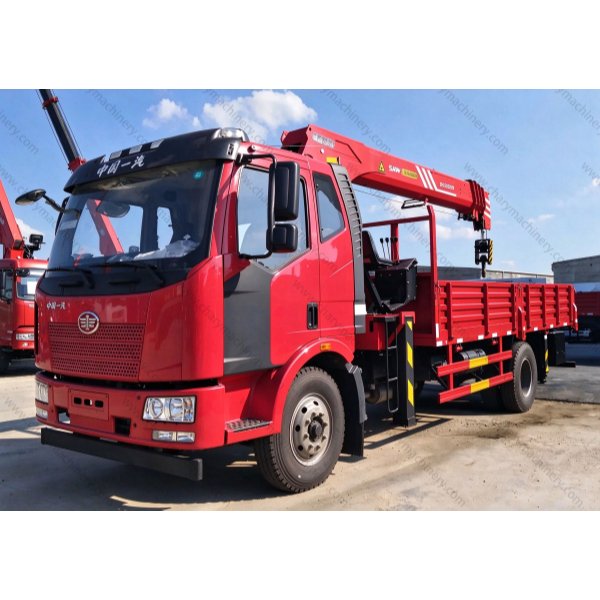

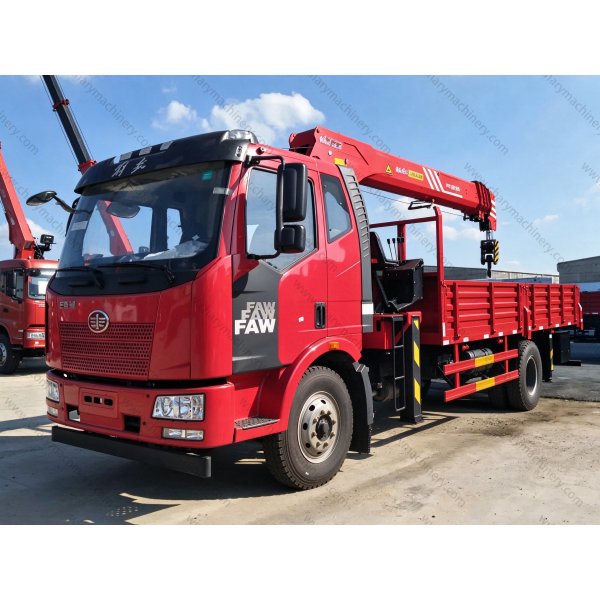

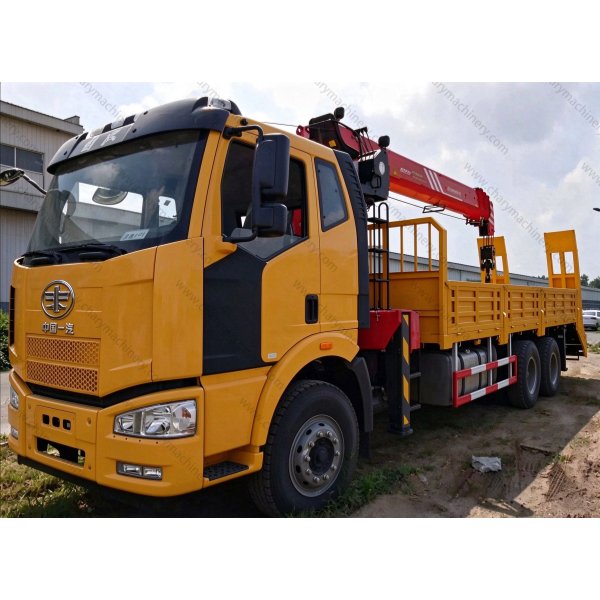

FAW J6P 6X4 350HP 12 Ton Truck Mounted Crane Boom Truck
FAW J6P 6×4 truck-mounted crane: one truck transports and lifts; 12t capacity, 30t·m torque, 4-section boom + jib, 360° rotation, 21m reach; 350HP Euro5 diesel, 6×4 chassis stable for site lifting and rough roads; comfortable J6P cab, proven low-maintenance driveline; crane and bed customizable;MOQ 1, 1-year warranty, overseas service.
Products
FAW J6P 6X4 350HP 12 Ton Truck Mounted Crane Boom TruckFAW J6P 6×4 truck-mounted crane: one truck transports and lifts; 12t capacity, 30t·m torque, 4-section boom + jib, 360° rotation, 21m reach; 350HP Euro5 diesel, 6×4 chassis stable for site lifting and rough roads; comfortable J6P cab, proven low-maintenance driveline; crane and bed customizable;MOQ 1, 1-year warranty, overseas service.
The FAW J6P 6×4 truck-mounted crane combines transport and lifting in one vehicle, so crews can carry materials to a site, lift and place them, then move to the next job without a separate crane or helper truck. The four-section telescopic boom with jib reaches wide working areas and rotates a full 360°, letting one operator load, unload, stack and install steel, precast parts, containers, poles and construction materials efficiently from a single position.
| Item | Specification |
|---|---|
| Vehicle Type | FAW J6P 6×4 Truck-Mounted Crane (Boom Truck), LHD/RHD |
| Cabin | FAW J6P |
| Engine | Dachai CA6DL2-35E5, 350HP (1500N·m), Euro V, Diesel |
| Fuel Tank | 400L |
| Suspension | Leaf Spring 12/11+10 |
| Crane Model | SQS300V Telescopic Crane |
| Max Lifting Capacity | 12,000kg |
| Max Lifting Torque | 30t·m |
| Crane Self Weight | 4,450kg |
| Boom | 4-Section Boom + 1 Jib; 360° Full Rotation |
| Max Working Radius | 21m |
| Chassis Loading Capacity | 32t |
| Overall Dimensions | 12500×2500×3750mm |
