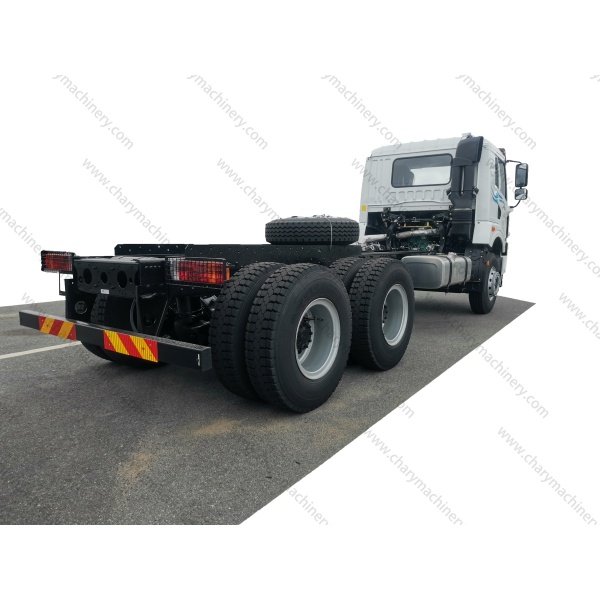

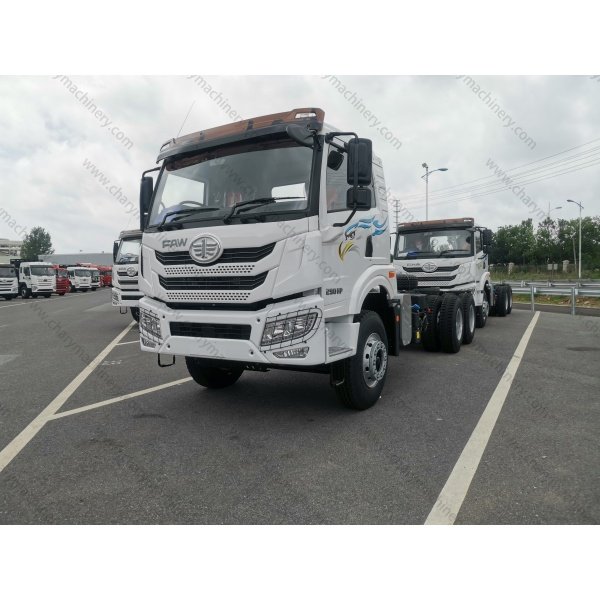

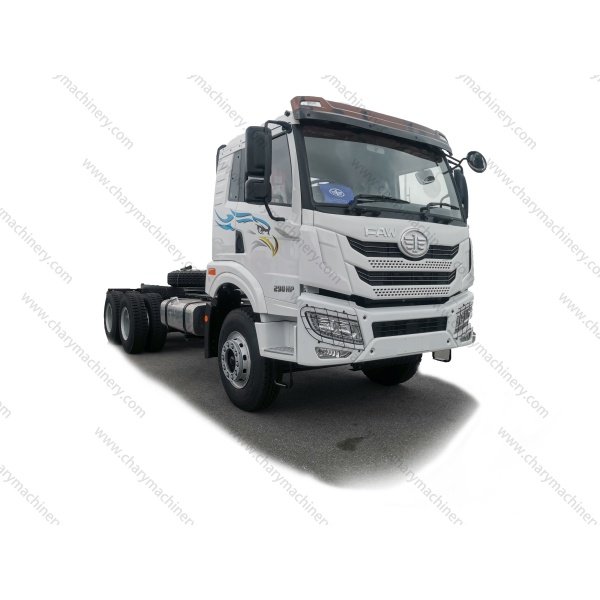

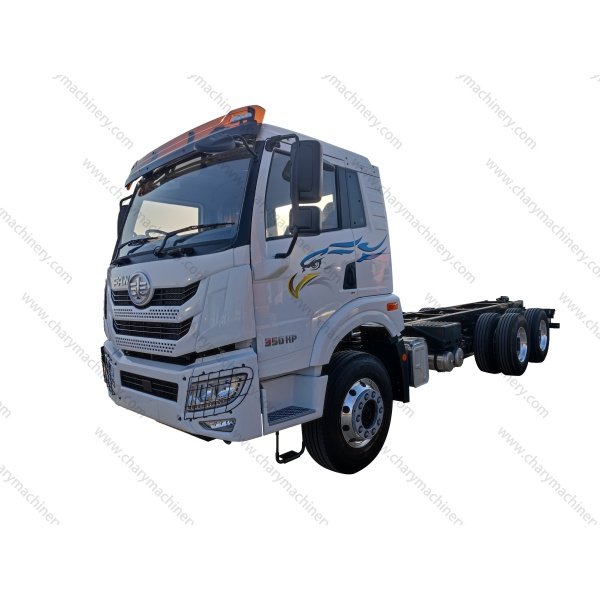

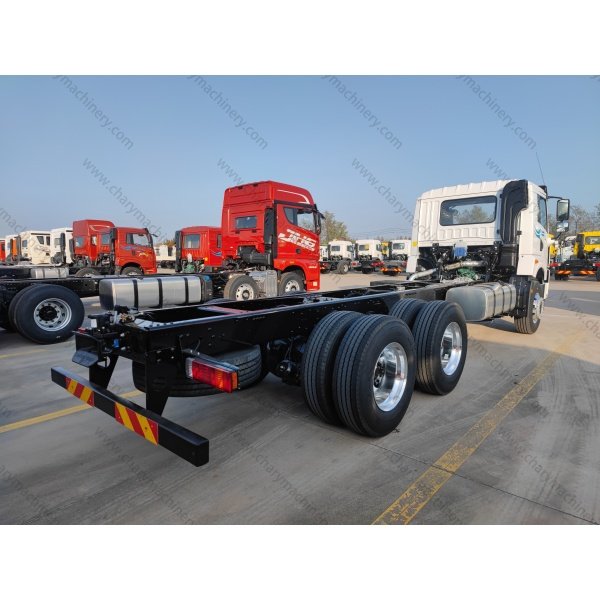

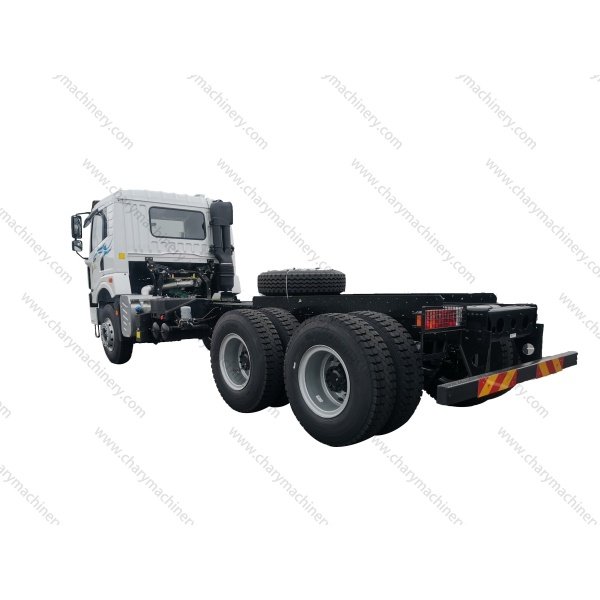

FAW JH5 6X4 Dump Truck 290HP
FAW JH5 6×4 dump truck, 290HP Weichai WP10 engine for affordable construction hauling. Inter-wheel differential lock and 5.571 rear axle ratio deliver strong traction on muddy, uneven sites. PTO-ready Fast gearbox for reliable tipper operation. Leather ventilated seat with lumbar support keeps drivers comfortable on rough shifts. LHD/RHD optional, emission selectable.
Products
FAW JH5 6X4 Dump Truck 290HPFAW JH5 6×4 dump truck, 290HP Weichai WP10 engine for affordable construction hauling. Inter-wheel differential lock and 5.571 rear axle ratio deliver strong traction on muddy, uneven sites. PTO-ready Fast gearbox for reliable tipper operation. Leather ventilated seat with lumbar support keeps drivers comfortable on rough shifts. LHD/RHD optional, emission selectable.
| Item | Specification |
|---|---|
| Vehicle Type | JH5 Dump Truck, 6×4 |
| Steering | LHD / RHD Optional |
| Emission Standard | Optional / Customizable |
| Engine | Weichai WP10.290E32, 290PS |
| Clutch | Φ430 Clutch |
| Gearbox | Shaanxi Fast 9JS119, With Spline PTO |
| Front Axle | 6.5T Rated Load |
| Rear Axle | 11.5T, Inter-wheel Differential Lock, Ratio 5.571 |
| Frame | 280×80×(8+5) |
| Cabin | Han V2.0 Flat Roof, Sleeper, Medium Body, Full Floating Cabin, Four-point Coil Spring Suspension |
| Cabin Features | Manual Window Lifter, Manual Rearview Mirror, Leather Ventilated Driver Seat with Lumbar Support & Armrest, Manual Hydraulic Lift, Radio |
| Exterior | DV Marking, Standard Front Logo |
| Tire | 12R22.5, 18PR Tubeless, Mixed Pattern, Steel Rim |
| Wheelbase | 3200+1350mm |
