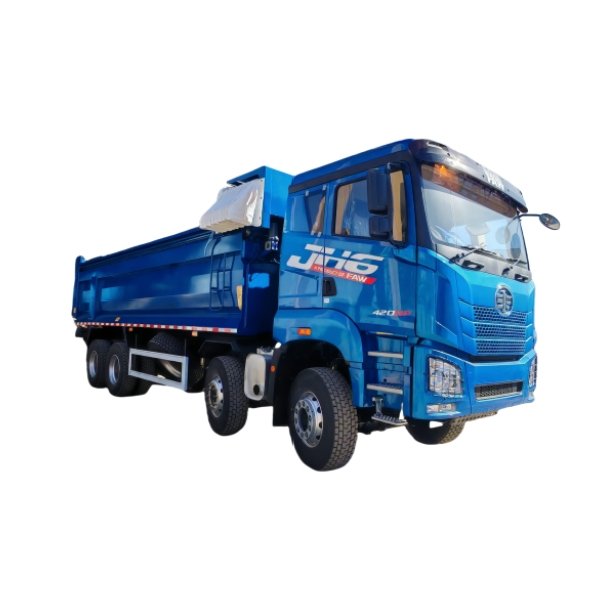

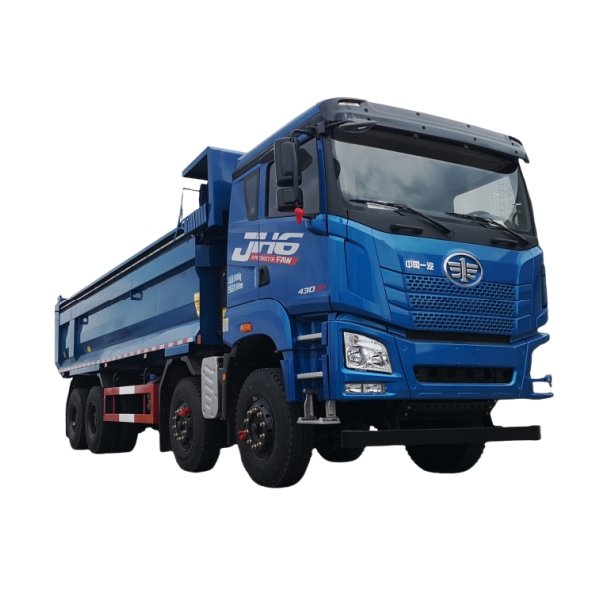

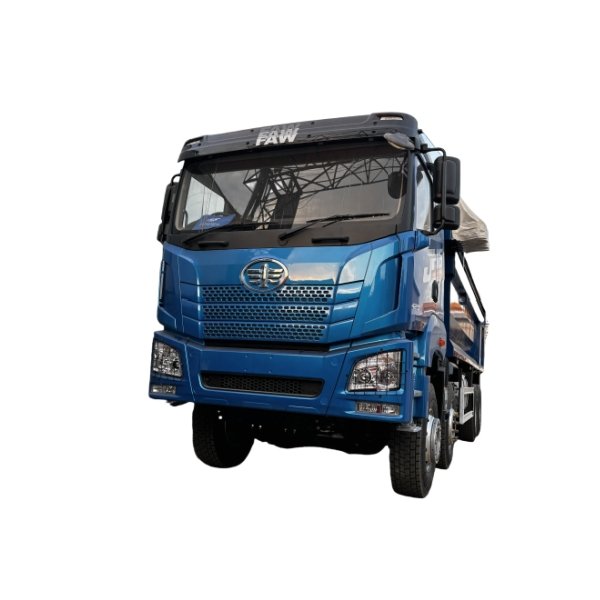

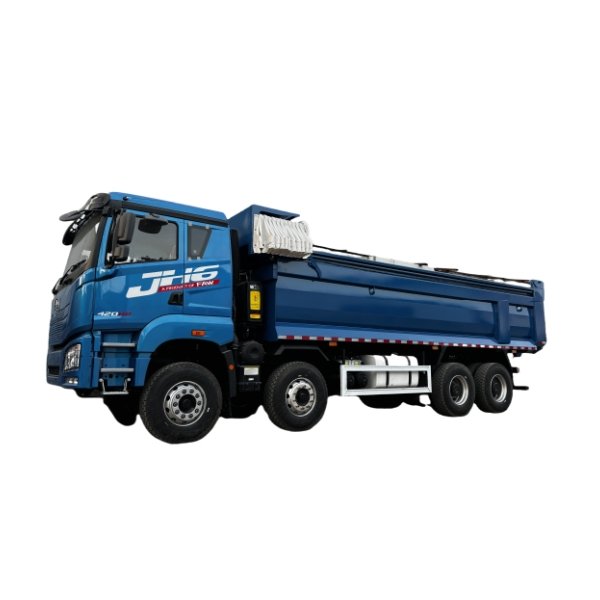

FAW JH6 420HP Dump Truck

Drive System

8X4

Steering wheel

RHD

Cabin

JH6 Right-mounted raised floor, flat-top, fully floating cab, electric lift, electric mirrors, electric windows and doors, automatic air conditioning,

Engine

WEICHAI 6cylinders, diesel, water-cooling &turbocharging

Model: CA6DM2-42L, Euro2

Power: 309kw (420HP)

Gearbox

FAW GEAR

Model: CA12TA210M

Manual, 12 forward speeds, 2 reverse speed.

Clutch

Ф430mm

cargo box dimension (mm)

7800*2300*1500mm

Thickness of Cargo box (mm)

7800*2300*1500mm, 8mm bottom, 6mm sides, high-strength version, U-shaped box, domestically made front top.

Wheel base(mm)

1900+3800+1350mm

Front axle

2055 front axle,9T loading capacity

Rear axle

300 wheel reduction axle (speed ratio 5.921)

Frame

300*80*(8+8+5)

Tire

315/80R22.5-20PR, 12+1pcs

Spring suspension

Leaf spring F11/13/R13, 4-leaf rear springs, reinforced rear spring (28mm),

Fuel tank (L)

400L

Overall dimensions(mm)

10800*2550*3700mm

Others

180AH battery, imported clutch, WABCO clutch booster, PTO with internal spline and control mechanism, imported valve, front axle stabilizer bar, Camel brand battery, oil filter, double I-bar rear balance suspension, 4U bolts, reinforced steel wheels, small bumper with front and rear light guards, mixed tread tires, long-maintenance coarse filter, cast axle housing, double transition arms.

Color

Red, blue, white, yellow, etc
