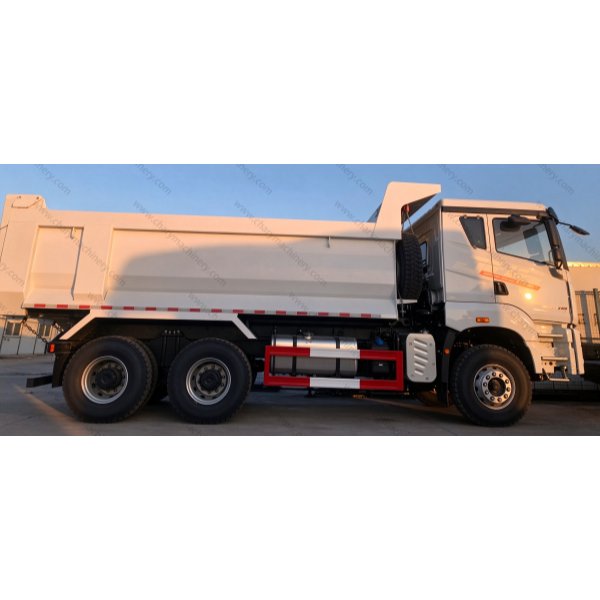

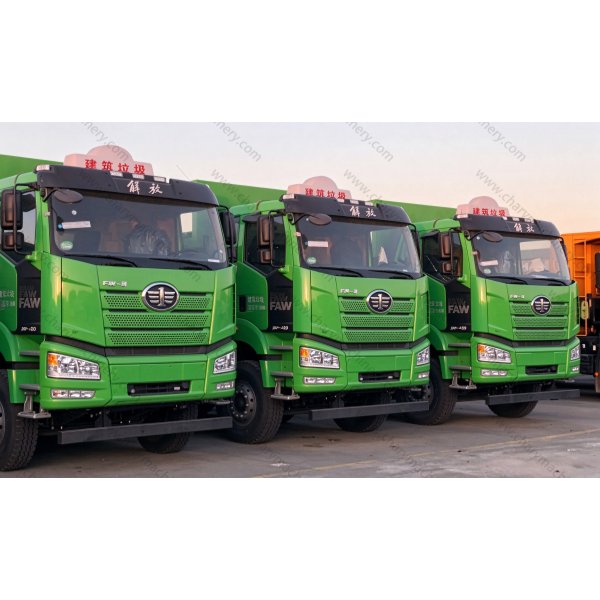

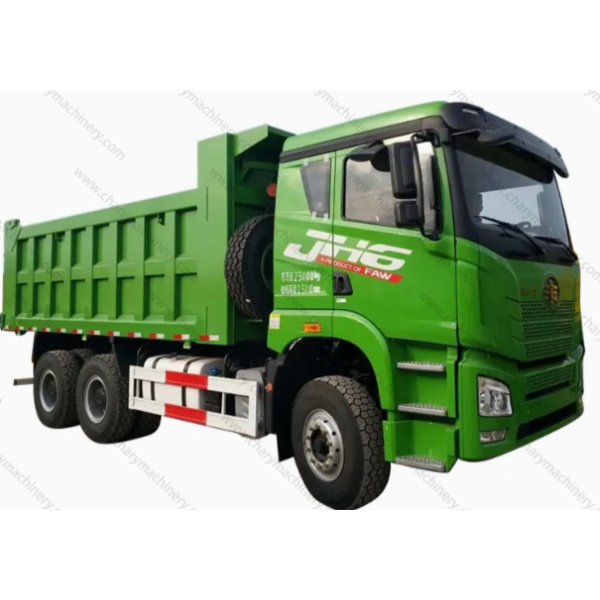

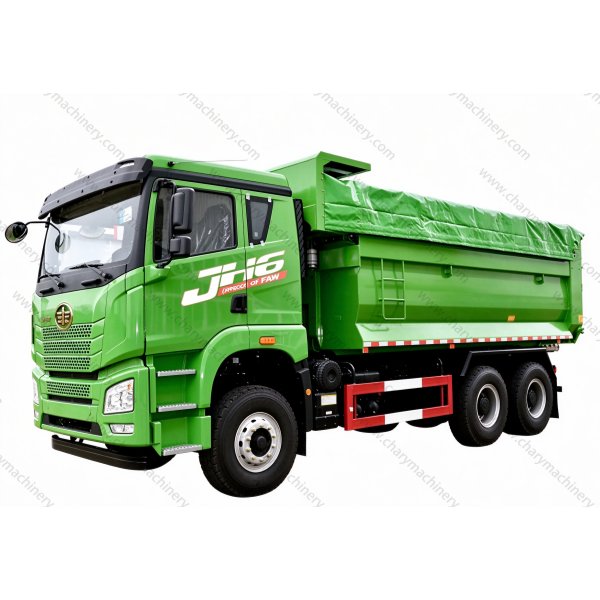

FAW JH6 6X4 390HP Heavy Duty Dump Truck
FAW JH6 6×4 390HP dump truck: heavy 8mm/6mm steel body with front-lift cylinder, handles rock, ore and rubble; 390HP for loaded pit climbs; φ457 axle, parabolic suspension with V/I-rods for rough roads; air brake with exhaust brake, ABS/ESC for safety; comfortable JH6 cab; body and emission customizable; MOQ 1, 1-year warranty, overseas service.
Products
FAW JH6 6X4 390HP Heavy Duty Dump TruckFAW JH6 6×4 390HP dump truck: heavy 8mm/6mm steel body with front-lift cylinder, handles rock, ore and rubble; 390HP for loaded pit climbs; φ457 axle, parabolic suspension with V/I-rods for rough roads; air brake with exhaust brake, ABS/ESC for safety; comfortable JH6 cab; body and emission customizable; MOQ 1, 1-year warranty, overseas service.
The FAW JH6 6×4 dump truck is built for high-load engineering and mining work. The thick 8mm-bottom / 6mm-side steel body stands up to repeated dumping of rock, ore, gravel and construction rubble, while the front-lift hydraulic cylinder tips heavy loads steadily and completely. The 390HP engine pulls fully loaded trucks up long grades and out of pits, and the φ457 rear axle with its proven final-drive ratio gives strong, reliable torque delivery on rough haul roads.
| Item | Specification |
|---|---|
| Vehicle Type | FAW JH6 6×4 Dump Truck, LHD/RHD |
| Drive | 6×4 |
| Engine Power | 390HP, Diesel, Euro 3 (Customizable) |
| Transmission | Manual |
| Rear Axle | FAW φ457, Ratio 4.875 |
| Tire | 12.00R20 Radial, 1 Spare |
| Dump Body | 5600×2300×1500mm; Bottom 8mm / Side 6mm; #180 Front Lifting Cylinder |
| Load Capacity | 41–50t Class |
| Suspension | Parabolic Springs Front (with Shocks); Rear Parabolic Springs, 2 V-Rods + 4 I-Rods |
| Brake | Dual-Circuit Air Brake; Spring Parking; Engine Exhaust Brake |
| Electric | 24V, 2×12V 165Ah Batteries, ABS, ESC, Touch Screen |
| Fuel Tank | 400L |
| Overall Dimensions | 8500×2500×3500mm |
