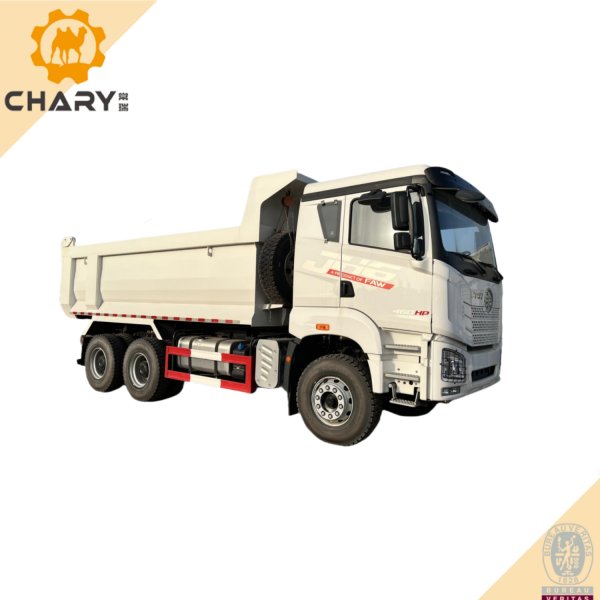

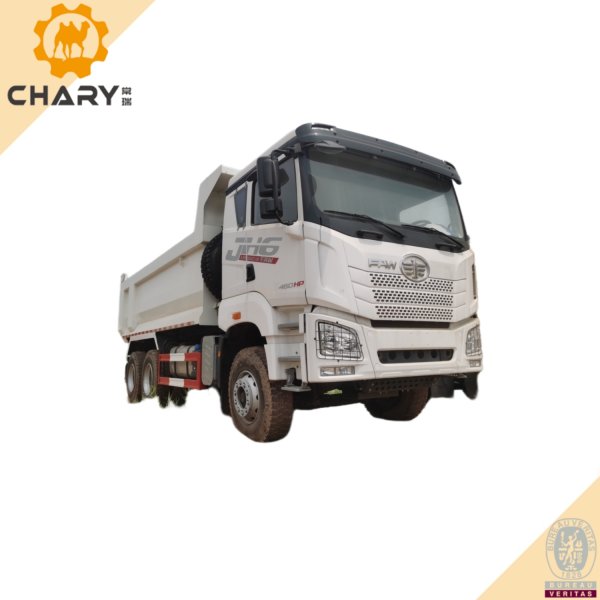

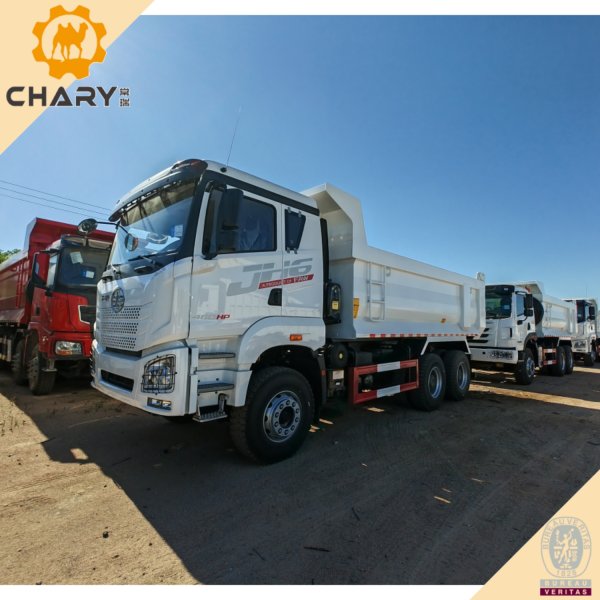

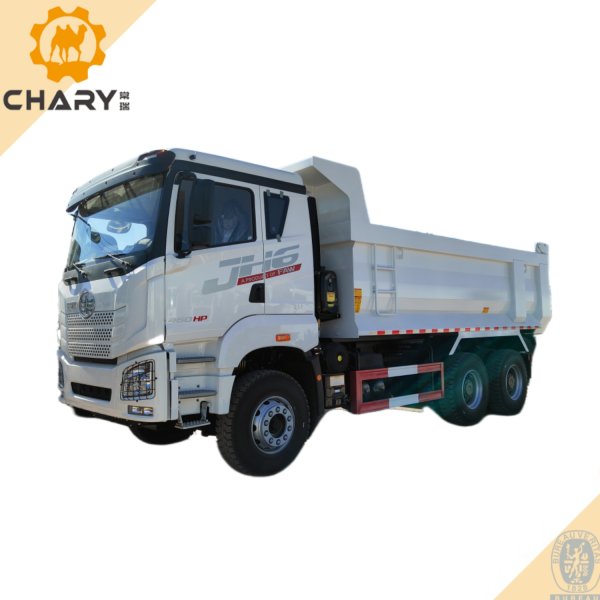

FAW JH6 6X4 U-BODY DUMP TRUCK

Drive System

6X4

Cabin

JH6 raised floor flat roof full floating cab, automatic air conditioning

Engine

FAW DE; 6cylinders, diesel, water-cooling &turbocharging

Model: FAW CA6DM2-42, Euro2

Power: 309kw (420HP)

Gearbox

FAW GEAR

Model: FAWCA10TA190F

Manual, 10 forward speeds, 2 reverse speed.

Clutch

Ф430mm

Dumper box dimension (mm)

5600*2300*1500mm

Thickness of Cargo box (mm)

5600*2300*1500mm dump truck top, 8 bottom and 6 side, domestically produced middle top, manganese plate, rectangular box

Wheel base(mm)

4500+1350mm

Front axle

2055 Front axle, 9 ton

Rear axle

300 wheel reduction axle

Speed ratio: 5.921

Frame

300*80*(8+8+5)

Tire

12.00R2018PR

Spring suspension

Leaf spring F11/R13

Fuel tank (L)

400L

Overall dimensions(mm)

8600*2550*3750mm

Others

Imported clutch, WABCO clutch booster, 180AH battery, electric doors and windows, front axle anti-roll bar, Camel battery, double I-bar rear balancing suspension, 4U bolts, 8.8 steel rims, small bumper, engineering pattern tires, 4 main springs front and rear, reinforced rear spring (28mm), radiator guard, front and rear light guard, engine guard, long-maintenance coarse filter, internal spline power take-off and control mechanism, overseas vehicle
