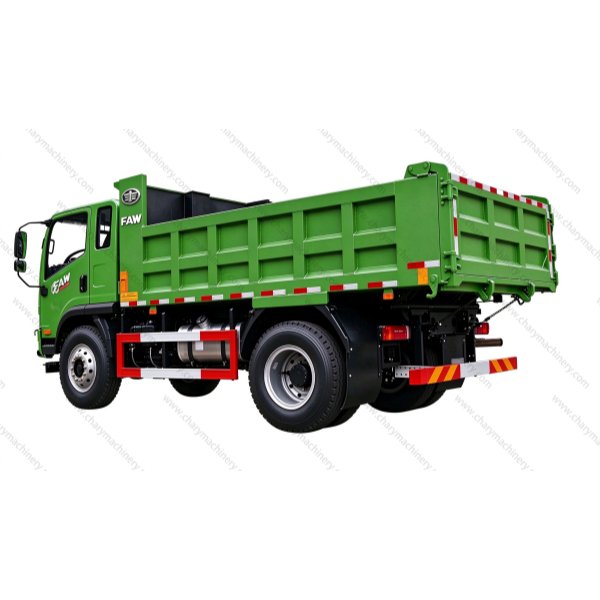

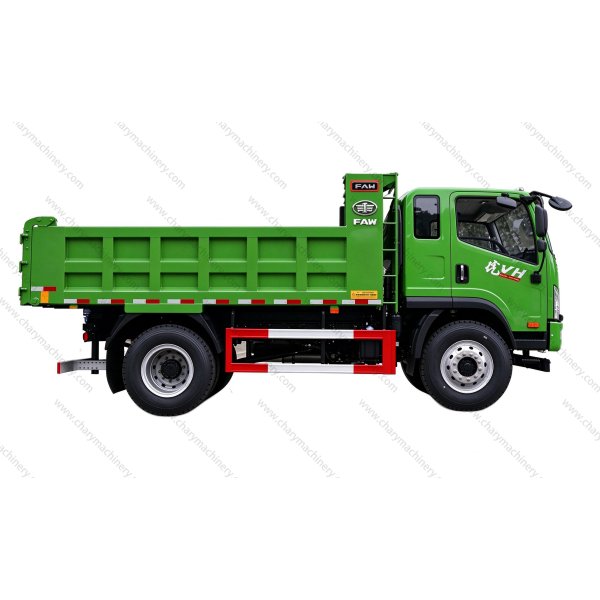

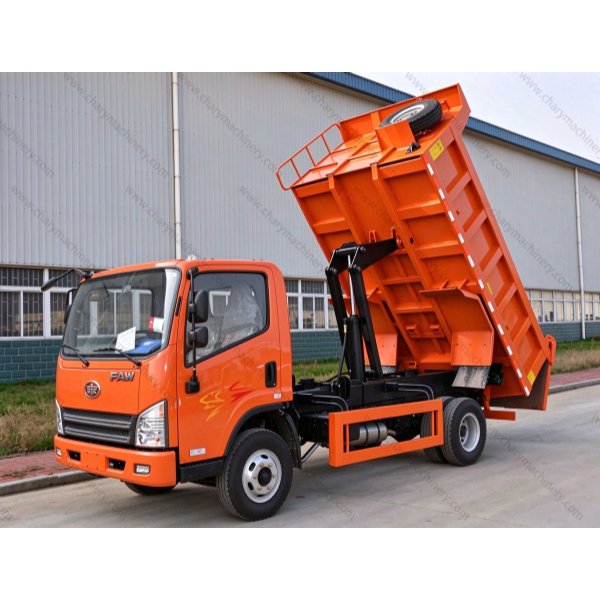

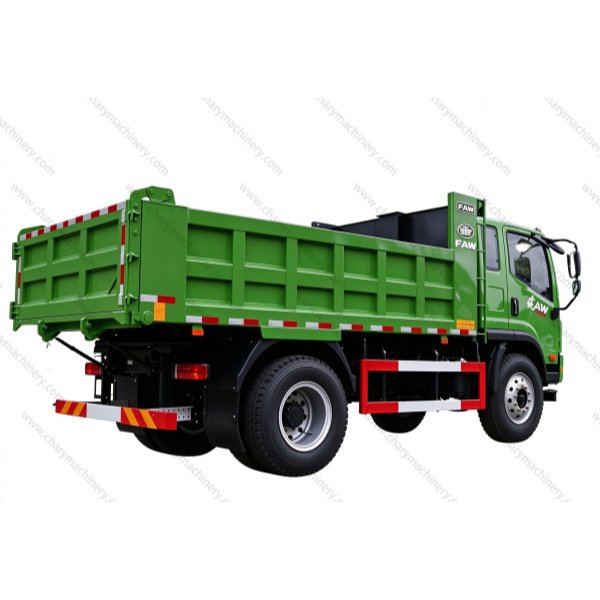

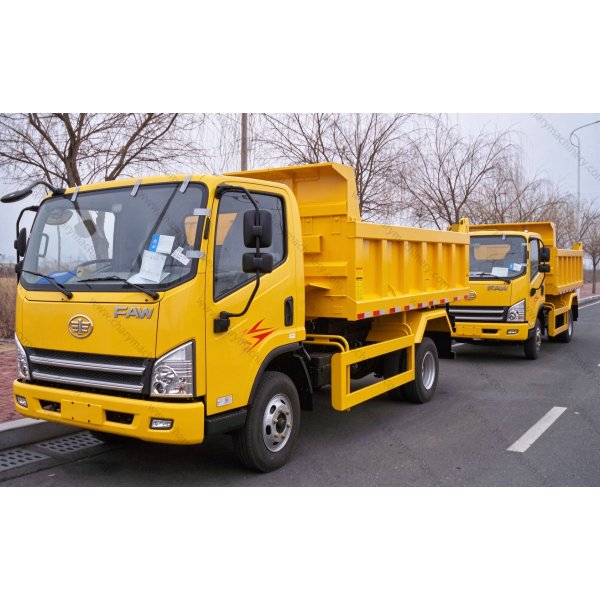

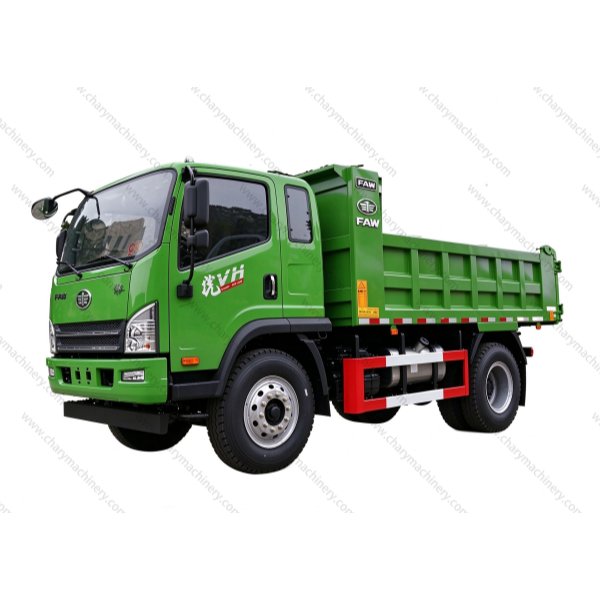

FAW Tiger VH 4X2 10 Ton Tipper Dump Truck
FAW Tiger VH 4×2 10t tipper: 7.6m³ heavy-steel dump box with middle hydraulic lift, unloads sand, gravel and rubble fast; Yuchai 130HP diesel, strong rear axle, off-road tires for rough site roads; compact and maneuverable on narrow access routes; comfortable A/C cabin; box size and thickness customizable;MOQ 1, 1-year warranty, overseas service.
The FAW Tiger VH 4×2 tipper is a compact, hard-working dump truck for small construction sites, quarry hauling, road maintenance and farm transport. Its strong steel dump box and middle underbody lifting system tip sand, gravel, soil, rubble and harvested loads quickly, so crews finish loading and unloading in minutes instead of hours. The 4mm-bottom / 3mm-side box stands up to repeated dumping against rocks and rough aggregates, and the short, maneuverable truck works well on narrow site access roads and village lanes where large 6×4 dumpers cannot enter.
| Item | Specification |
|---|---|
| Vehicle Type | FAW Tiger VH 4×2 Dump Truck, LHD/RHD |
| Drive | 4×2 |
| Engine | Yuchai YC4D130-33, 96kW (130HP), 420N·m, Euro 3 (Customizable) |
| Gearbox | Wanliyang WLY 10H46, 5 Forward / 1 Reverse, Manual |
| Wheelbase | 3650mm |
| Front Axle | DR289 Haitong |
| Rear Axle | 435 Steel Casting Axle, Ratio 6.833 |
| Dump Box | 3800×2000×1000mm, 7.6m³; Bottom 4mm / Side 3mm |
| Load Capacity | 10,000kg |
| Lifting System | Middle Lifting (Underbody Hydraulic) |
| Tire | 9.00R20-16PR, Off-Road Pattern, 6+1 Spare |
| Fuel Tank | 130L |
| Suspension | Leaf Spring 10/10+9 |
| Cabin | Tiger VH Flat Cabin, LHD, Single-and-Half Row, with A/C |
| Overall Dimensions | 6200×2300×2600mm |
