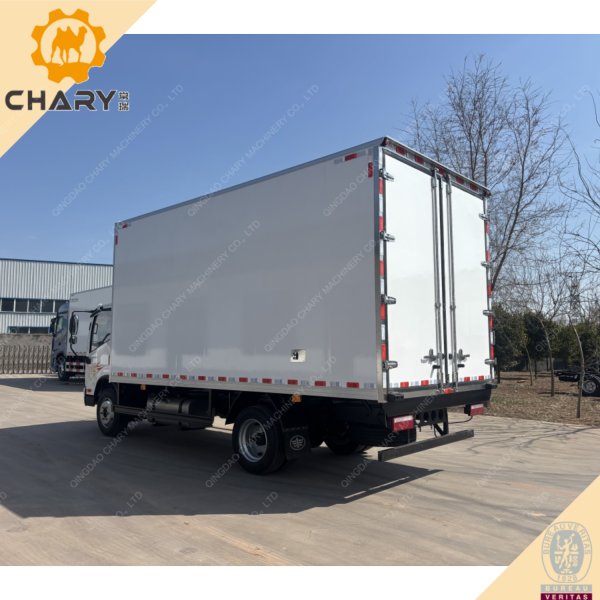

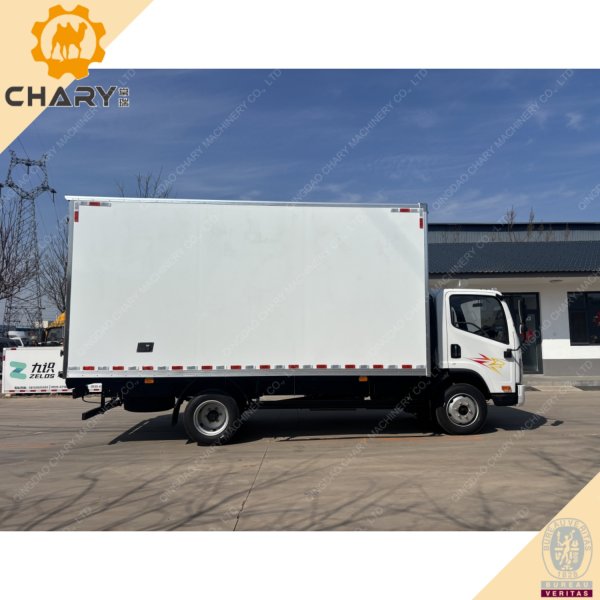

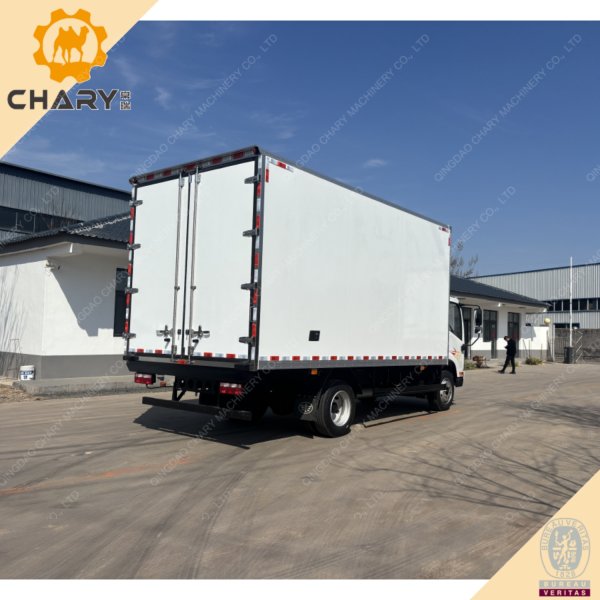

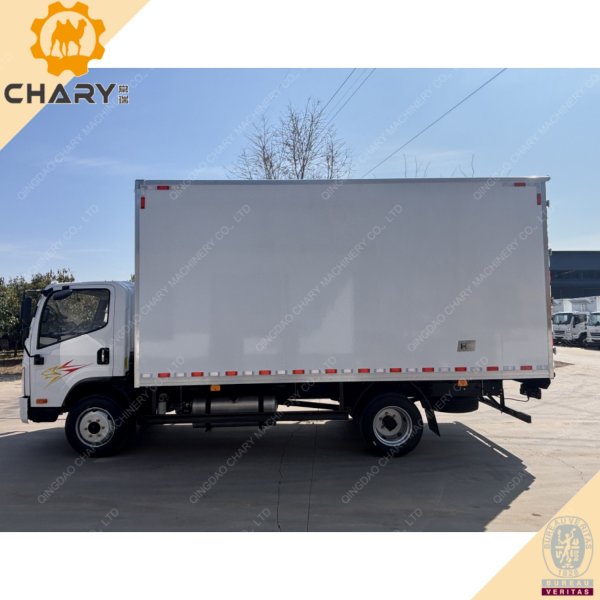

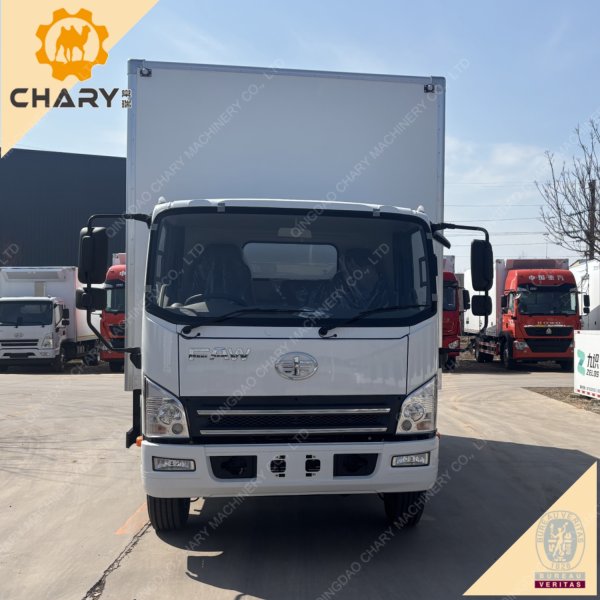

FAW TIGER VH 4X2 CARGO TRUCK

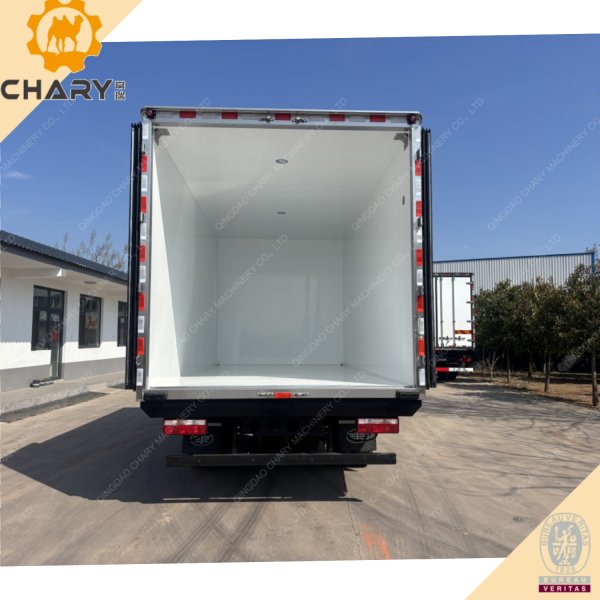

The standut feature of the isulatced refer van s tstate-of the ar iulaton system wih nures that the interior temperature remains consistent throughou the ouney tiscapabityis essential for preserning the quality andsafety of perishablegoods,phamaceutical, and other temperature senstive carg. Whetherit's fresh produce frozenfods orvacines, thisreefer van offers the peace of mind that your cargo will arrive at its destination in optimal condition.
Light Duty Truck
FAW TIGER VH 4X2 CARGO TRUCKThe standut feature of the isulatced refer van s tstate-of the ar iulaton system wih nures that the interior temperature remains consistent throughou the ouney tiscapabityis essential for preserning the quality andsafety of perishablegoods,phamaceutical, and other temperature senstive carg. Whetherit's fresh produce frozenfods orvacines, thisreefer van offers the peace of mind that your cargo will arrive at its destination in optimal condition.
FAW 4x2 5 ton Cargo Truck | |
Drive System | 4×2 |
Steering wheel | RHD |
Cabin | Tiger VR Single Row Right-Handed Cab, Air conditioning, |
Engine | WEICHAI; 4 cylinders, diesel, water-cooling &turbocharging |
Model: WP2.3NQ110E20, Euro2 | |
Power: 81kw (110HP) | |
Gearbox | WLY GEAR Model: WLY MG85B Manual, 5 forward speeds, 1 reverse speed. |
Clutch | Ф275mm |
cargo box dimension (mm) | 4200*2100*2100, |
Thickness of Cargo box (mm) | The bottom edge is 2.5mm thick, and the side edge is 1.2mm thick, totaling three baffles. |
Loading capacity (kg) | 5000KG |
Wheel base(mm) | 3300mm |
Front axle | DR061, HONGGUANG axle, 2T loading capacity |
Rear axle | 1058 punch welding axle, 5T loading capacity speed ratio: 5.571, wheelbase: 1475 |
Tire | 7.00R16 14PR, 6+1pcs |
Spring suspension | Leaf spring F5/R7+6 |
Fuel tank (L) | 80L |
Overall dimensions(mm) | 6000*2300*2800mm |
Others | without rear protection, air conditioning, air brakes, emergency air brakes, dual rear tires, 1350mm rear overhang. |
Color | Red, blue, white, yellow, etc |
