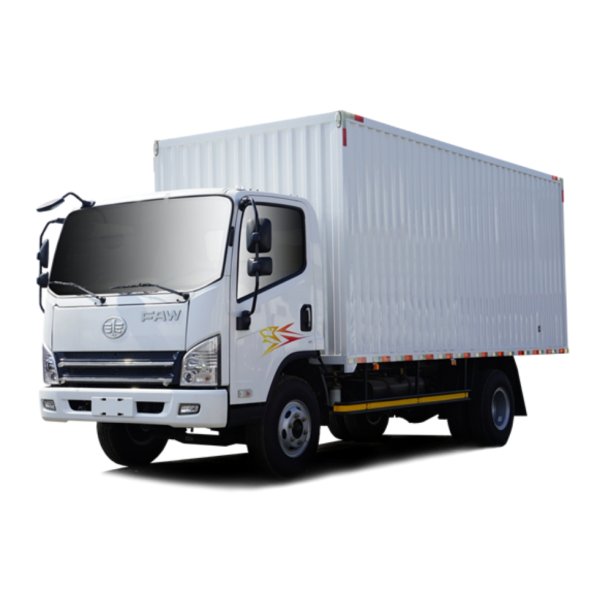

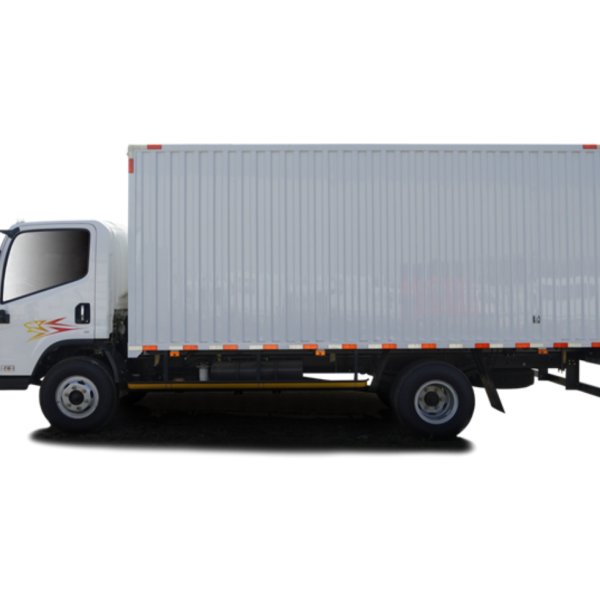

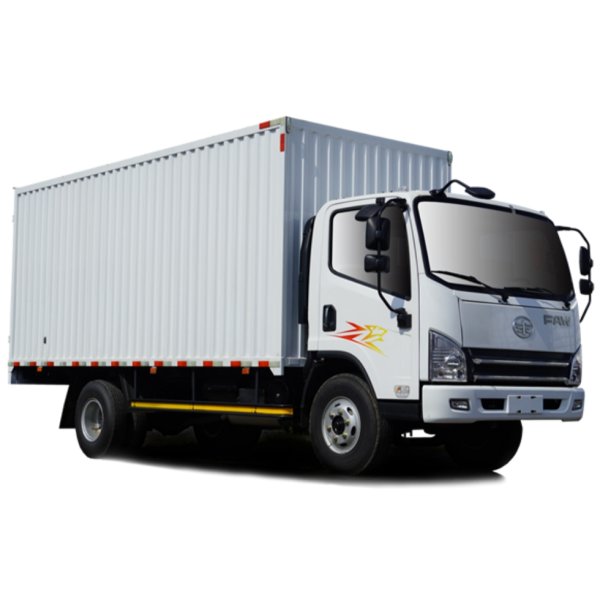

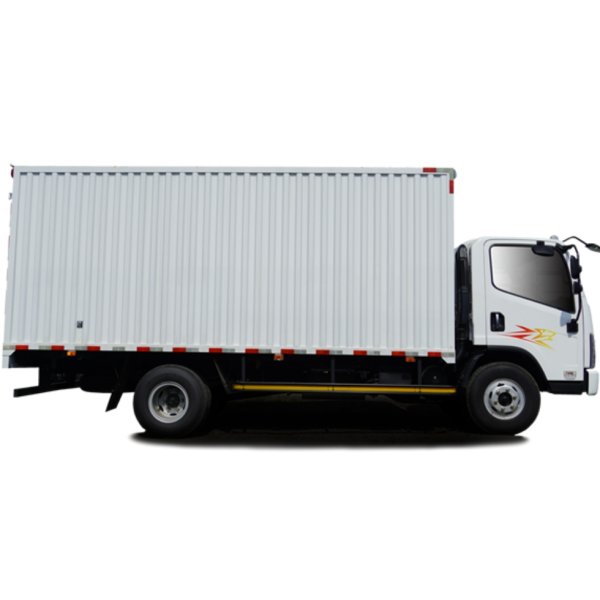

FAW Tiger VR 4x2 closed box truck
FAW light closed box truck, is widly used for urban and town logistics field.Different load capacity models for worldwide customers. Left hand driving, righthand driving.Euro ll emission engine, Euro V emission engine, new energy trucks3 tons, 5 tons, 8 tons trucks. More details, feel free to contact us please.
Light Duty Truck
FAW Tiger VR 4x2 closed box truckFAW light closed box truck, is widly used for urban and town logistics field.Different load capacity models for worldwide customers. Left hand driving, righthand driving.Euro ll emission engine, Euro V emission engine, new energy trucks3 tons, 5 tons, 8 tons trucks. More details, feel free to contact us please.
FAW 4x2 cargo Truck | |
Drive System | 4×2 |
Cabin | Tiger VR single row cab, Air conditioning, electric doors and windows + central locking |
Engine | WEICHAI 4 cylinders, diesel, water-cooling, direct injection |
Model: | WP2.3NQ110E20, EURO2 |
Power: | 96kw (110HP); |
Gearbox | WLY GEAR Model: WLY MG85B Manual; 5 forward speeds, 1 reverse speed. |
Clutch | Ф275mm |
Cargo box dimension (mm) | 4200*1910*2100 |
Thickness of cargo box (mm) | The bottom 3 sides 1.2mm, the carriage is corrugated board, with double doors on the right and double doors on the rear, 2K paint |
Loading capacity (kg) | 3000KG |
Maximum Gross weight(KG) | 7500KG |
Wheel base(mm) | 3300mm |
Front axle | DR061-HONGGUANG axle |
Rear axle | 1058 punch welding bridge speed ratio: 5.571, wheelbase: 1475 |
Frame | 760*150*60*(4+4) |
Tire | 7.00R1614PR |
Spring suspension | Leaf spring 5/7+6 |
Fuel tank (L) | 80L |
Overall dimensions(mm) | 5700x2450x2850 |
Others | Air brake, air brake, rear twin tires, rear suspension 1350mmm |
