​This KA-certified explosion-proof mine hazardous goods utility vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive, equipped with hydraulic wet brake to meet strict safety standards for transporting mining explosives.

Products

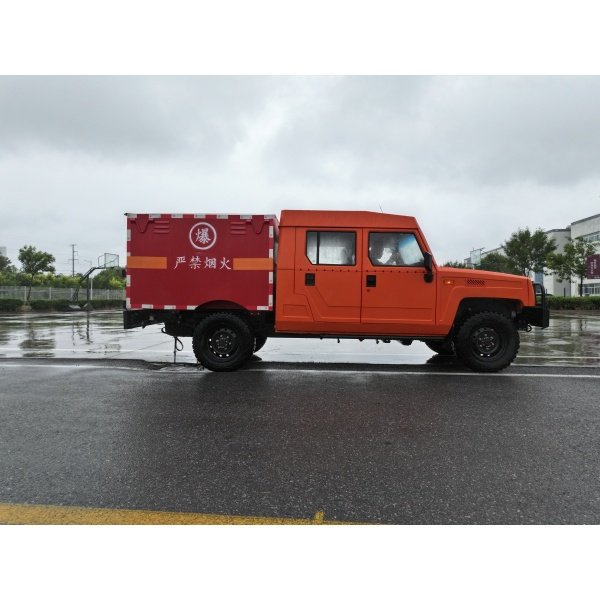

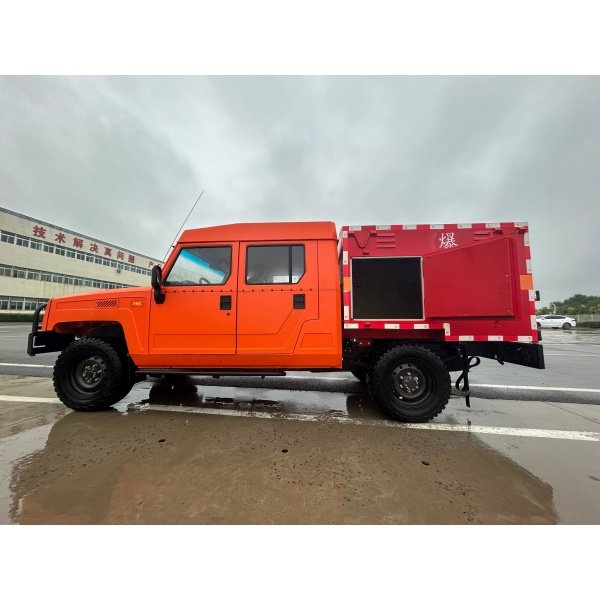

FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle
FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle
FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle
FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle
FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle
FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle

FCB-2/1.5(F) Single & Double Row Integrated Blasting Materials Transport Vehicle

    This KA-certified explosion-proof mine hazardous goods utility vehicle adopts an Isuzu turbocharged diesel engine and part-time four-wheel drive, equipped with hydraulic wet brake to meet strict safety standards for transporting mining explosives.

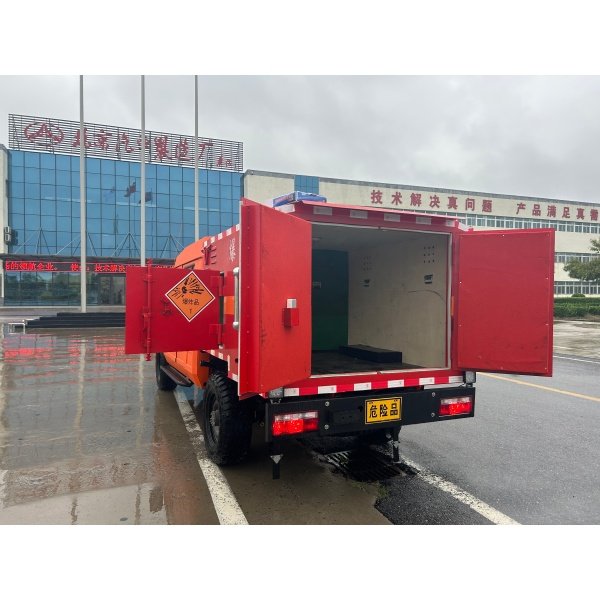

    Available in single-row and double-row integrated cargo compartment designs, this blasting equipment transport truck realizes safe transportation of detonators and explosives in both open-pit and underground mines, with customizable safety protection configurations.

Main Specification

Overall Dimensions

5210/5530mm(L) × 1950mm(W) × 2070mm(H)

Wheelbase

3035/3350 mm

Front/Rear Track

1540 mm

Number of Doors

2/4

Seating Capacity

2/4 seats

Fuel Tank Capacity

75 L

Curb Mass

3140 / 3260 kg

Gross Vehicle Mass

5140 / 4760 kg

Maximum Gradeability

14°

Maximum Traction Force

≥25 kN
Minimum Turning Radius (Outer Edge)7.55/8.3 m
Minimum Ground Clearance210 mm
Tire SpecificationLT265/70R17
Engine Model4KH1-TCF40
Engine ManufacturerISUZU (China) Engine Co., Ltd.
Displacement2999 mL
Intake ModeTurbocharged
Transmission3-speed Manual
Rated Power/Speed95kW/2900r/min
Max. Torque/Speed320Nm/1700-2800r/min
Fuel TypeDiesel
4WD ModePart-time Four-wheel Drive
Front/Rear SuspensionLeaf Spring Non-independent Suspension
Steering SystemHydraulic Power Steering
Front/Rear Brake TypeHydraulic Wet Brake
Parking Brake TypeSpring Brake with Hydraulic Release
Note: Other configurations can be CUSTOMIZED according to customer requirements.
