4 Ton Fire Water Tanker|Off-Road Forest Fire Fighting Water Carrier Truck
Part-time 4WD off-road chassis adapts to rugged mountain forest road conditions
Large 4.2m³ water tank, equipped with rotary fire monitor for long-distance fire attack
Turbo diesel engine provides sufficient power, max speed up to 90km/h
Complete professional fire-fighting standard fittings for forest fire emergency missions
Optional warning light, megaphone and wire reel to enrich rescue configurations
Products
4 Ton Fire Water Tanker|Off-Road Forest Fire Fighting Water Carrier TruckPart-time 4WD off-road chassis adapts to rugged mountain forest road conditions
Large 4.2m³ water tank, equipped with rotary fire monitor for long-distance fire attack
Turbo diesel engine provides sufficient power, max speed up to 90km/h
Complete professional fire-fighting standard fittings for forest fire emergency missions
Optional warning light, megaphone and wire reel to enrich rescue configurations

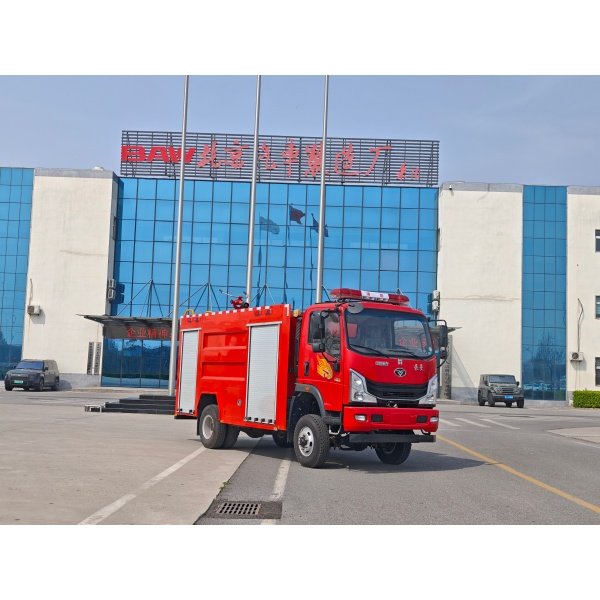

This 4-ton 4×4 fire water tanker is developed for mountain forest wildfire emergency suppression.
Equipped with part-time four-wheel drive, it has good cross-country performance for complex mountain terrain. The 4.2 cubic meter water tank matches a 360° rotatable horizontal fire monitor with a jet range over 58 meters, pump flow reaches 30L/s, and full tank drainage can be finished within 7 minutes.
Turbo diesel power meets National VI emission standard. It is pre-installed with fire hoses, fire valves and other standard firefighting accessories, suitable for daily forest fire patrol and sudden wildfire rescue operations.
Main Specification | |
Overall Dimension | 6420×2180×2218mm |
Wheelbase | 3360mm |
Front/Rear Track | 1650/1640mm |
| Curb Weight | 6625kg |
| Gross Weight | 10680kg |
| Seating Capacity | 2 persons |
| Transmission | 5-speed manual gearbox |
| Drive Mode | Part-time 4WD |
| Suspension | Front coil spring, rear leaf spring (9/11+8 pieces) |
| Tire Spec | 9.25R20LT 16PR |
| Max Speed | 90km/h |
| Fuel Type | Diesel |
| Engine Model | WP20Q160E61 |
| Displacement | 2970mL |
| Max Power / RPM | 118kW / 2950rpm |
| Max Torque / RPM | 480N·m / 1400-2400rpm |
| Intake Type | Turbocharged |
| Emission Standard | Euro VI |
| Fuel Tank Capacity | 120L |
Special Equipment

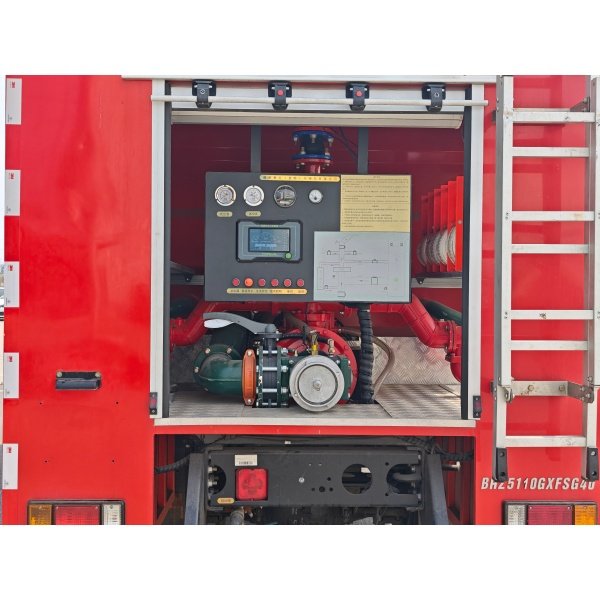

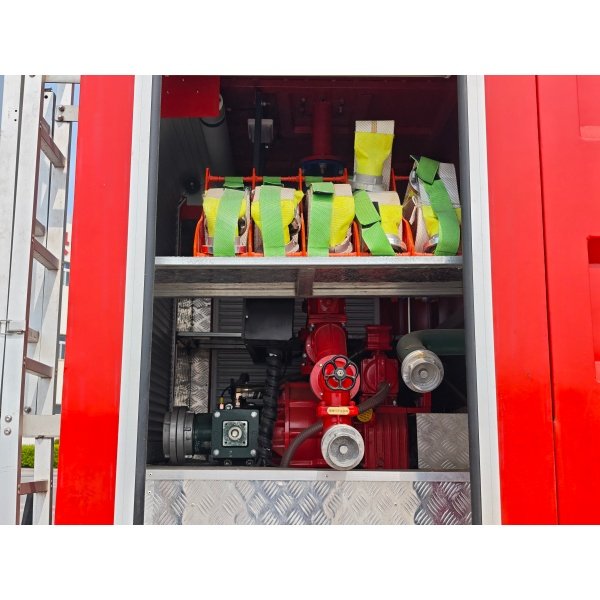

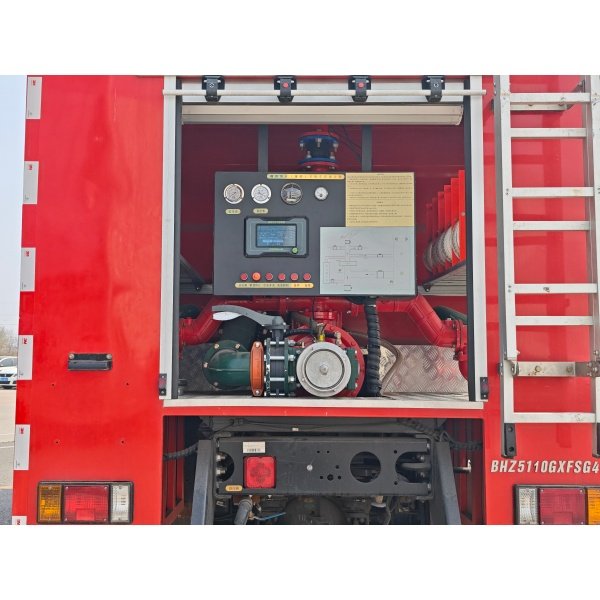

Water tank volume: 4.2m³; fire monitor range ≥58m, pump flow 30L/s, 360° horizontal rotation, working pressure 0.8MPa; full tank draining time ≤7min

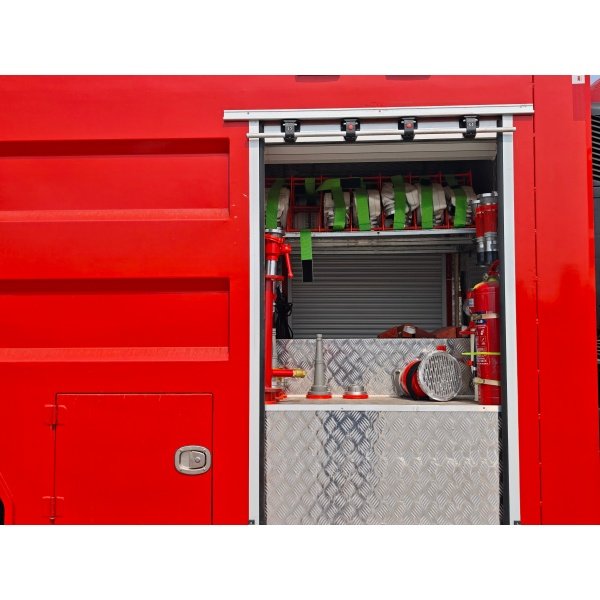

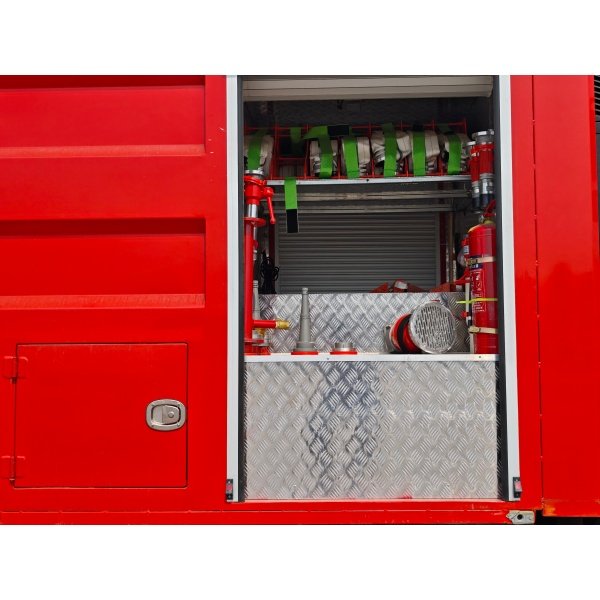

Standard equipped with fire hoses, fire valves and dedicated firefighting fittings; optional warning light, megaphone, wire reel and other devices
