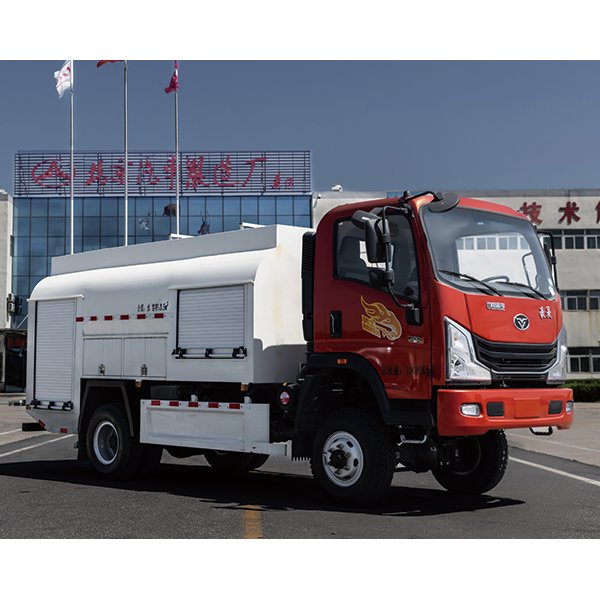

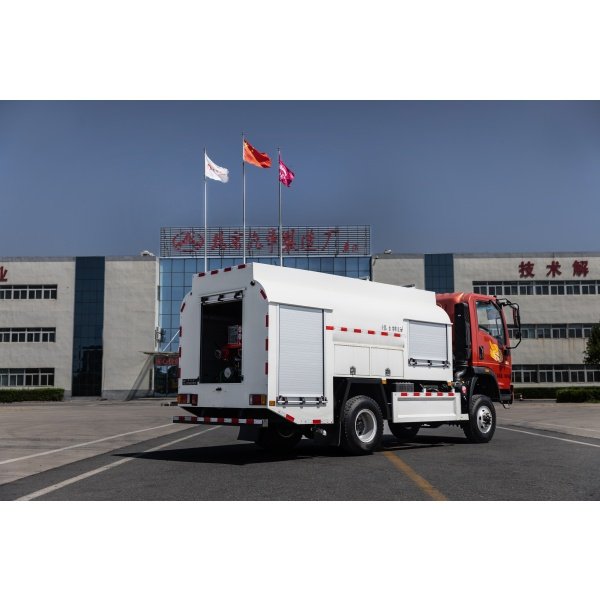

3.5/5 Ton Four-Wheel Drive Forest & Grassland Fire Prevention Water Supply Truck

Products
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle
4WD Forest & Grassland Fire Water Supply Truck | Wildfire Prevention Emergency Vehicle

4WD Forest Grassland Fire Water Supply Truck | Mountain Wildfire Prevention Vehicle

  • Powerful part-time four-wheel drive chassis delivers outstanding off-road performance, adapting to mountain, muddy and rugged grassland terrain for wildfire patrol and rescue.

  • Dual optional 3.5m³ / 5m³ large-capacity water tank matches different fire extinguishing and long-distance water delivery demands in remote wild areas.

  • Equipped with high-flow fire water cannon, 30L/s flow rate and over 50m shooting range, vertical angle adjustable from -70° to +30° for flexible fire suppression.

  • Weichai National VI turbocharged diesel engine outputs strong low-speed torque, stable power supply and meets global mainstream emission standards.

  • Fully customizable auxiliary configurations including warning lights, loudspeakers and rescue winches to satisfy diversified forest emergency operation requirements.

Main Specification

Overall Dimension

6505×2140×2825 mm

Wheelbase

3360mm

Front/Rear Track

1650/1640mm

Curb Weight6460/6200 kg
Gross Weight

10080/11200 kg
Seating Capacity2-3 persons
TransmissionManual 8-speed Gearbox
Drive ModePart-time 4WD
SuspensionFront & Rear Leaf Spring(9/11+8)
Tire Spec8.25R16LT 18PR
Max Speed90km/h

Fuel TypeDiesel
Engine ModelWP3NQ160E61
Displacement2970mL
Max Power / RPM118kW/3000r/min
Max Torque / RPM480N·m/1400-2300r/min
Intake TypeTurbocharged
Emission StandardEuro VI
Fuel Tank Capacity120L
Max Speed

85/90km/h

Engine ManufacturerWeichai Power Co., Ltd.

Special Equipment

  • Water tank volume optional: 3.5m³ / 5m³; Water cannon flow rate:30L/s; Shooting range ≥50m; Pump lift 1300m; Vertical swing angle: -70° ~ +30°

  • Optional accessories: warning light, loudspeaker, rescue winch.
