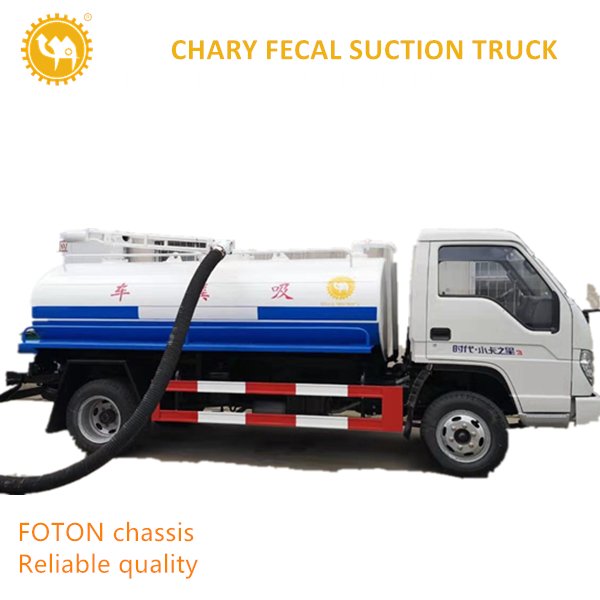

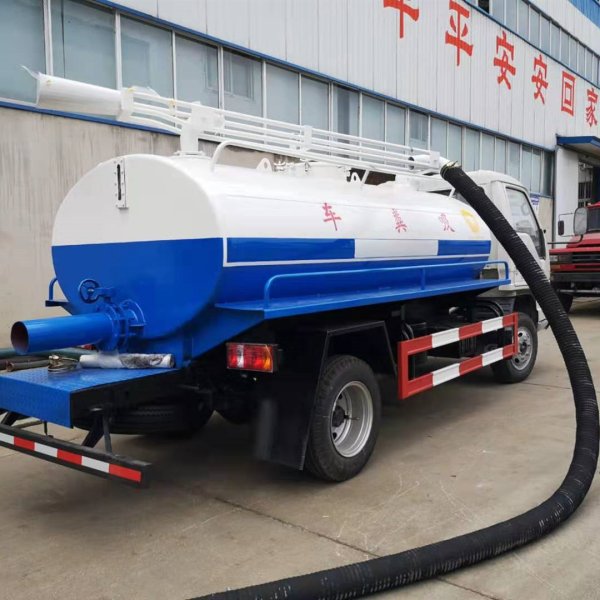

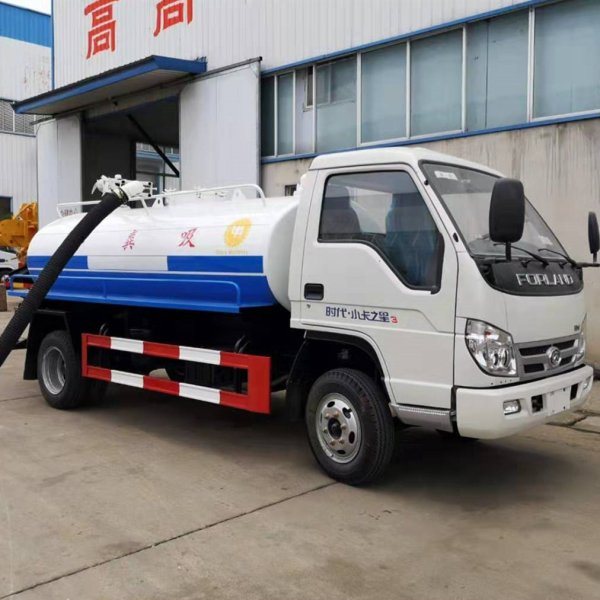

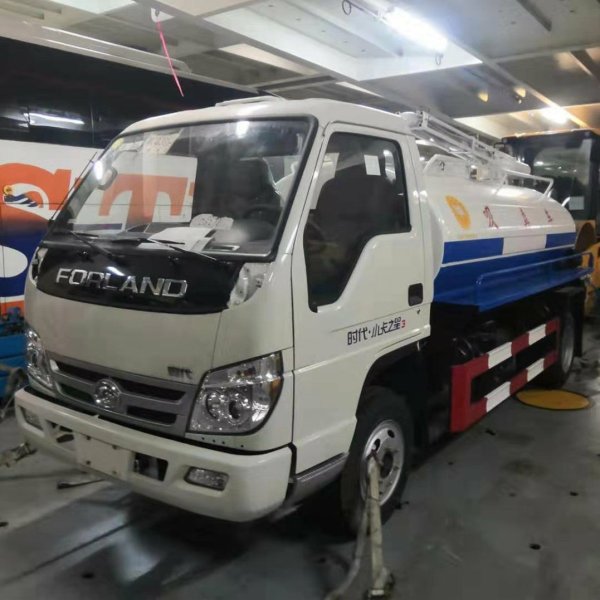

Foton 4000L Fecal Suction Truck
Manager: George
WhatsApp: +86 15053289929
VEHICLE MAIN TECHNICAL INFORMATION Foton 4000L Fecal Suction Truck | |
| ITEM | DESCRIPTION |
| Product Name | Foton sewer cleaning truck |
| Product Model | CLW5040GXWB5 |
| Overall Size(mm) | 5000×1750×2100 |
| Sewage suction tank volume | 2CBM |
| Gross Weight(kg) | 4294 |
| Curb Weight(kg) | 2904 |
| Approaching/Departure Angle(°) | 18/15(°) |
| Front/Rear suspension(mm) | 1115/1285 |
| Max.speed(km/h) | 90 |
| Standard Configuration | 1. Hydraulic lifting sewage tank,sewage suction tank volume is 2m3. 2. Sewage tank material:high quality carbon steel,round shape. 3. Sewage tank has looking sewage window,self flow exit, and a sewage suction pipe 5m. 4.Equiped with cleaning device,vacuum pump,oil water separator and overflow valve. |
| Chassis Parameters | |
| Chassis Brand | Foton |
| Chassis Model | BJ1042V9JB5-A1 |
| Drive Type | 4*2 Right hand drive or left hand drive |
| Transmission | 5-speed, manual |
| Cab | Sing row cab, 2 passengers |
| Fuel Type | Diesel |
| Tire Specification | 6.00-15LT 10PR |
| Tire No. | 6 |
| Wheelbase(mm) | 2850 |
| Alex No. | 2 |
| Leaf Spring No. | 7/5+3 |
| Front Trend/Rear Trend(mm) | 1345/1240 |
| Axle Loading(kg) | 1650/2644 |
| Engine Parameters | |
| Engine Brand | Quanchai |
| Engine Model | 4A2-68C50 |
| Horse Power(hp) | 68hp |
| Displacement/Power | 2270ml/50kw |
| Emission Standard | Euro 3 |
