10 Ton Enclosed Box Type Outdoor AGV

Products

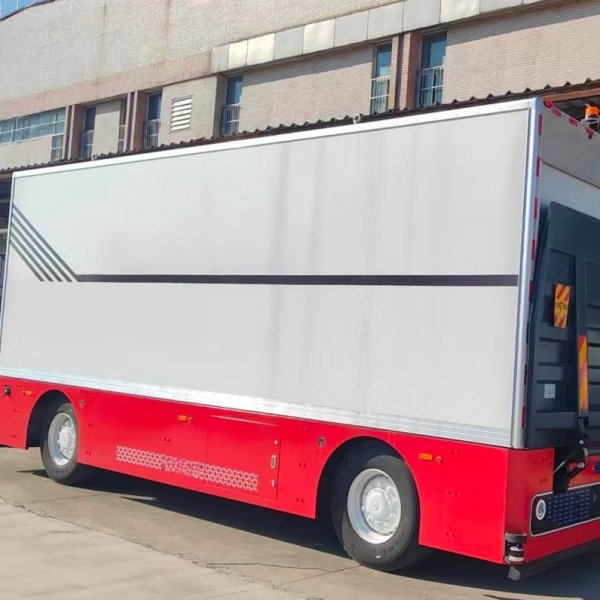

10 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Enclosed Box Automated Guided Vehicle with Lift Tailgate
10 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Enclosed Box Automated Guided Vehicle with Lift Tailgate

10 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Enclosed Box Automated Guided Vehicle with Lift Tailgate

  • 10 Ton Heavy Load Capacity: Designed for factory-to-factory, port and logistics park enclosed material transport.

  • Enclosed Cargo Box with Roller Shutter & Lift Tailgate: Keeps goods safe from dust and rain; easy loading/unloading.

  • GNSS+IMU Hybrid Navigation: No magnetic tape required, works reliably in large open outdoor areas.

  • High Performance: Max speed 10km/h, 7° climbing ability, and 7m turning radius for smooth operation.

  • Long Endurance: 90kWh battery delivers up to 50km range on a single charge, ideal for multi-shift work.

Main Specification

Model

PXAGV10E

Overall Dimensions

8000mm (L)  × 2800mm (W) × 3700mm (H)

Maximum Speed

10km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

10T

Minimum Turning Radius

7m

Superstructure Type

Enclosed Cargo Box with Automatic Roller Shutter Door + Automatic Lifting Tailgate

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

90kWh

Operating Range

50km
