10 Ton Heavy-Duty Outdoor Flatbed AGV

Products

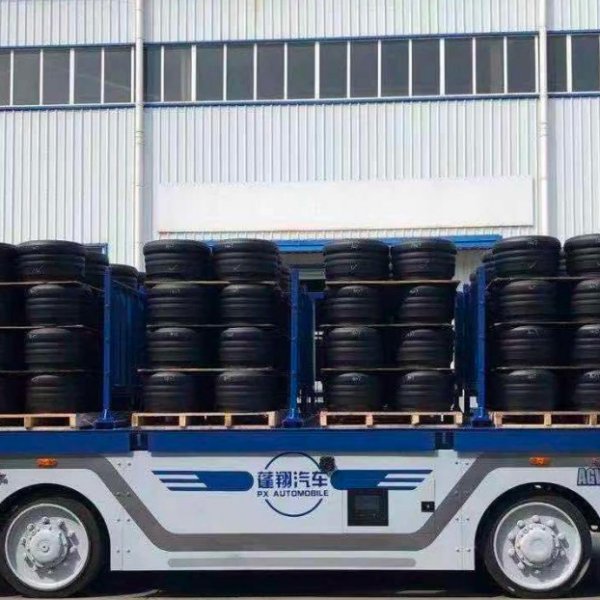

10 Ton Heavy-Duty Outdoor AGV GNSS+IMU Guided Flatbed Automated Guided Vehicle
10 Ton Heavy-Duty Outdoor AGV GNSS+IMU Guided Flatbed Automated Guided Vehicle

10 Ton Heavy-Duty Outdoor AGV GNSS+IMU Guided Flatbed Automated Guided Vehicle

  • 10 Ton Heavy Load Capacity: Designed for heavy-duty material handling in industrial parks, ports, and logistics yards;

  • GNSS+IMU Hybrid Navigation: No magnetic tape or QR codes required, ideal for large open outdoor areas;

  • Stable & Efficient Operation: Max speed 5.4 km/h, 7° climbing ability, and 5m turning radius for safe, smooth movement;

  • Long Endurance: 46kWh battery delivers up to 30km range on a single charge, suitable for multi-shift work;

  • Rugged & Cost-Effective: Low-maintenance flatbed design, reliable for harsh environments.

Main Specification

Model

PXAGV10C

Overall Dimensions

4980mm (L)  × 2470mm (W) × 1200mm (H)

Maximum Speed

5.4km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

10T

Minimum Turning Radius

5m

Superstructure Type

Flatbed

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

46kWh

Operating Range

30km
