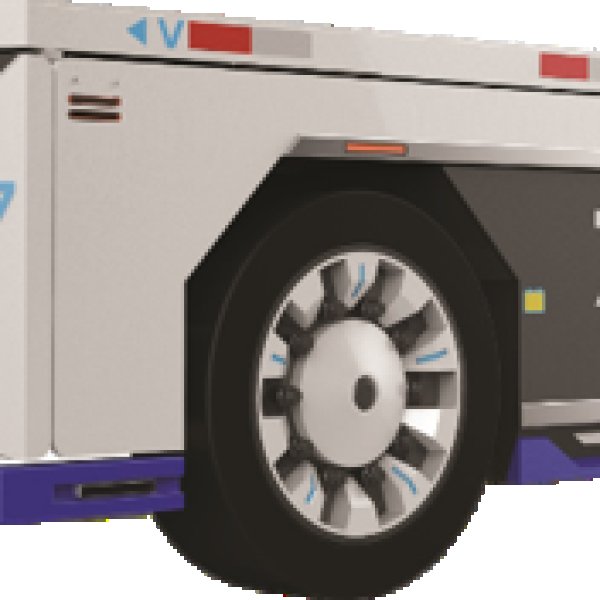

10 Ton (Max 15 Ton) Heavy-Duty Outdoor 4x4 Driven Flatbed Automated Guided Vehicle

Adopt solid rubber tires, great off-road performance, suitable for long-distance transportation on complex outdoor road conditions.
Equipped with automobile chassis, high-density lithium battery and high-power permanent magnet synchronous motor, max speed up to 20km/h with strong power.
Adopt self-developed electric drive axle and steering drive axle platform, support 0-50 ton load customized AGV vehicles.
Complete safety protection: position loss, communication fault, path deviation, contact & non-contact anti-collision, emergency stop, fit manned and unmanned indoor & outdoor work.
Support multi navigation modes; Customizable superstructure with manipulator, roller table, conveyor belt and sealed box.

Liorah

Main Specification
Model	PXAGV10
Overall Dimensions	4200mm (L) × 2230mm (W) × 1060mm (H) (Customizable)
Drive Type	4x4
Rated Load / Curb Weight	10-15/6t
Load Distribution under Full Load	Front 50%, Rear 50%
Wheelbase	2500(Customizable)
Track Width	1950mm (Customizable)
Ground Clearance	120mm
Maximum Speed	10km/h (Automatic operation)
Maximum Gradeability	7°/12%, fully loaded
Maximum Load	3T
Minimum Turning Radius	5m
Superstructure Type	Roller track automatic loading/unloading + automatic roller shutter cargo box
Navigation Method	GNSS + IMU + Inertial Navigation
Battery Capacity	46kWh
Operating Range	40km
Motor Type	AC Permanent Magnet Synchronous Motor
Rated Power	50KW(Customizable)
Peak Power	95 kW(Customizable)
Rated Torque	160N·m (Customizable)
Peak Torque	350N·m (Customizable)
Battery Type	Lithium Iron Phosphate (LFP), DC
Battery Voltage	540V
Battery Capacity	46kWh (Customizable)
Tire Size	780×240×540mm
Brake System	Air Brake / Hydraulic Brake
Parking Brake	Spring-actuated Brake
Braking Distance	2m (At maximum speed under full load)
Steering System	Electronically Controlled Full-hydraulic Steering
