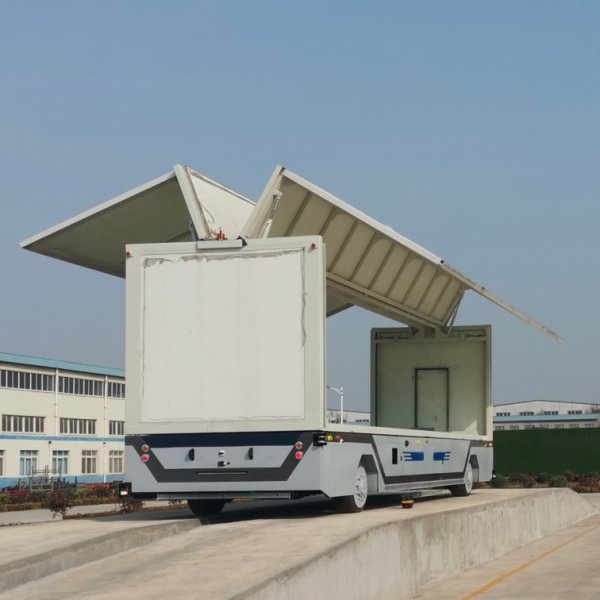

PXAGV15 15 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Automatic Wing Opening Box AGV
PXAGV15 15 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Automatic Wing Opening Box AGV

15 Ton Heavy-Duty Outdoor AGV | GNSS+IMU Guided Automatic Wing Opening Box AGV

  • 15 Ton Heavy Load Capacity: Designed for high-volume material handling in ports, factories and logistics yards.

  • Automatic Wing Opening Box: Hydraulic side-opening structure for fast, convenient loading and unloading.

  • GNSS+IMU Hybrid Navigation: No magnetic tape required, ideal for large open outdoor environments.

  • Stable Performance: Max speed 5.4 km/h, 7° climbing ability, and 10m turning radius for reliable operation.

  • Long Endurance: 46kWh battery delivers up to 30km range on a single charge, suitable for multi-shift work.

Main Specification

Model

PXAGV15

Overall Dimensions

9810mm (L)  × 2740mm (W) × 3650mm (H)

Maximum Speed

5.4km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

15T

Minimum Turning Radius

10m

Superstructure Type

Automatic Wing Opening Box

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

46kWh

Operating Range

30km
