PXAGV16B 16 Ton Heavy-Duty Self-Loading AGV

Products

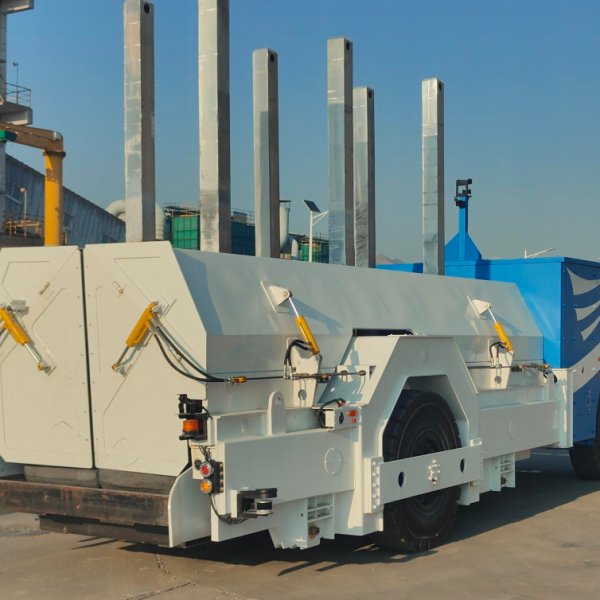

16 Ton Heavy-Duty Self-Loading AGV | GNSS+IMU Guided Automated Guided Vehicle with Blind Compensation
16 Ton Heavy-Duty Self-Loading AGV | GNSS+IMU Guided Automated Guided Vehicle with Blind Compensation

16 Ton Heavy-Duty Self-Loading AGV | GNSS+IMU Guided Automated Guided Vehicle with Blind Compensation

  • 16 Ton Heavy Load Capacity: Built for heavy-duty material handling in ports, steel plants, and industrial yards.

  • Integrated Self-Loading & Lifting System: Eliminates the need for external loading/unloading equipment.

  • Enhanced Navigation with Blind Compensation: GNSS+IMU+inertial navigation with blind spot compensation for stable operation.

  • High Efficiency & Durability: Max speed 10 km/h, 7° climbing ability, and a large 141kWh battery for up to 50km range.

  • Rugged Design: Built for long shifts and continuous operation in harsh industrial environments.

Main Specification

Model

PXAGV16B

Overall Dimensions

9172mm (L)  × 3010mm (W) × 3600mm (H)

Maximum Speed

10km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

16T

Minimum Turning Radius

10m

Superstructure Type

Self-Loading & Lifting Mechanism

Navigation Method

GNSS + IMU + Inertial Navigation + Blind Compensation

Battery Capacity

141kWh

Operating Range

50km
