PXAGV20 20 Ton Heavy-Duty Flatbed AGV with Retractable Guards

Products

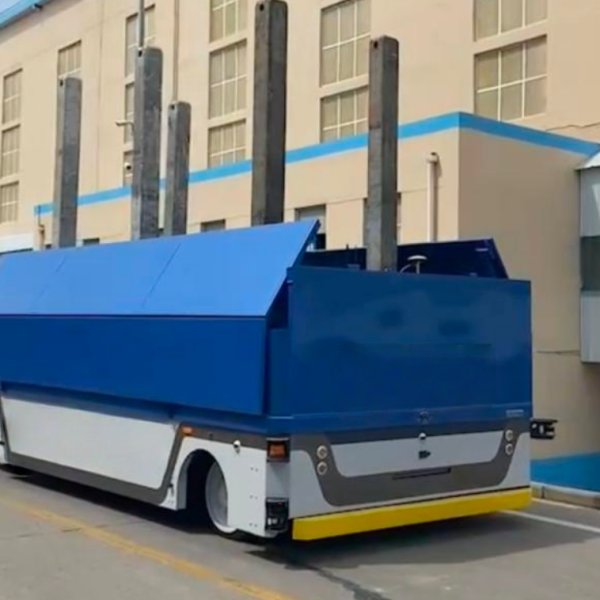

20 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle
20 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

20 Ton Heavy-Duty Outdoor Flatbed AGV | GNSS+IMU Guided Automated Guided Vehicle

  • 20 Ton Heavy Load Capacity: Designed for transporting ultra-heavy industrial materials in factories and yards.

  • Retractable Side Guards: Flatbed design with extendable/retractable railings for flexible cargo securing.

  • GNSS+IMU Hybrid Navigation: No magnetic tape required, ideal for large open outdoor areas.

  • Stable & Rugged Performance: Max speed 5.4 km/h, 7° climbing ability, and 8m turning radius for reliable operation.

  • Balanced Endurance: 56kWh battery delivers up to 30km range on a single charge, suitable for multi-shift work.

Main Specification

Model

PXAGV20

Overall Dimensions

6500mm (L)  × 3000mm (W) × 1200mm (H)

Maximum Speed

5.4km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

20T

Minimum Turning Radius

8m

Superstructure Type

Flatbed with Retractable Side Guards

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

56kWh

Operating Range

30km
