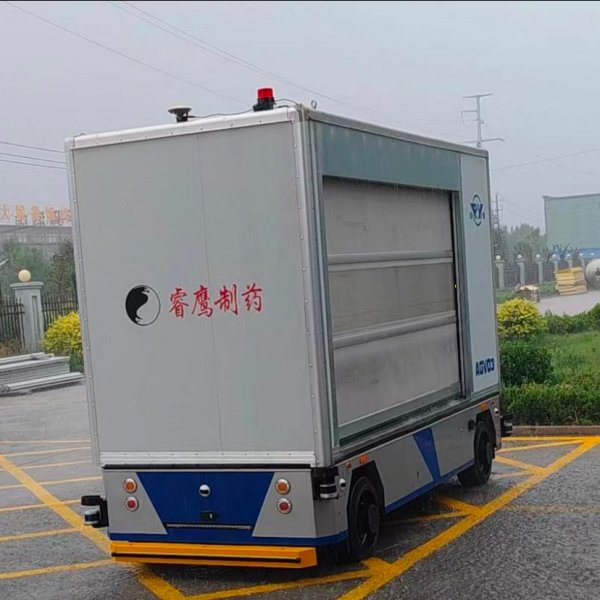

3 Ton Heavy-Duty Outdoor Smart Logistics Automated Guided Vehicle
Heavy Payload: 3000kg load capacity, ideal for heavy material transport;
Outdoor & Harsh Environment: Dustproof, high-temperature resistant;
GNSS+IMU Navigation: No floor markers, easy deployment in large open areas;
24/7 Operation: Reliable for multi-shift use in ports, factories and logistics parks;
Low Maintenance: Rugged design, minimal downtime, cost-effective.
Products
3 Ton Heavy-Duty Outdoor Smart Logistics Automated Guided VehicleHeavy Payload: 3000kg load capacity, ideal for heavy material transport;
Outdoor & Harsh Environment: Dustproof, high-temperature resistant;
GNSS+IMU Navigation: No floor markers, easy deployment in large open areas;
24/7 Operation: Reliable for multi-shift use in ports, factories and logistics parks;
Low Maintenance: Rugged design, minimal downtime, cost-effective.
Main Specification | |
Model | PXAGV03 |
Overall Dimensions | 4130mm (L) × 1870mm (W) × 3000mm (H) |
Maximum Speed | 10km/h (Automatic operation) |
Maximum Gradeability | 7°, fully loaded |
Maximum Load | 3T |
Minimum Turning Radius | 5m |
Superstructure Type | Roller track automatic loading/unloading + automatic roller shutter cargo box |
Navigation Method | GNSS + IMU + Inertial Navigation |
Battery Capacity | 46kWh |
Operating Range | 40km |
