PXAGV30B 30 Ton Heavy-Duty Automatic Wing Opening Box AGV

Products

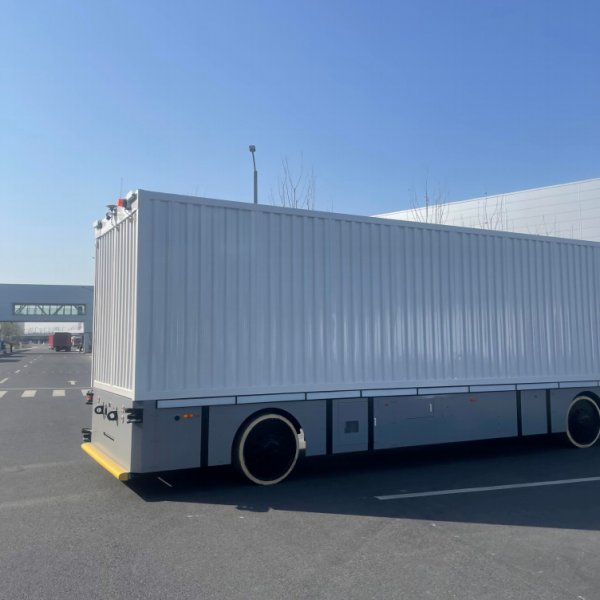

30 Ton Heavy-Duty Wing Opening AGV | GNSS+IMU Guided Enclosed Automated Guided Vehicle
30 Ton Heavy-Duty Wing Opening AGV | GNSS+IMU Guided Enclosed Automated Guided Vehicle

30 Ton Heavy-Duty Wing Opening AGV | GNSS+IMU Guided Enclosed Automated Guided Vehicle

  • 30 Ton Ultra-Heavy Load Capacity: Designed for transporting high-volume, heavy cargo in logistics yards and factories.

  • Automatic Wing Opening Box: Hydraulic side-opening design for fast, convenient loading and unloading of large goods.

  • GNSS+IMU Hybrid Navigation: Works reliably in large open outdoor environments, no magnetic tape required.

  • Stable Performance: Max speed 5.4 km/h, 7° climbing ability, and 10m turning radius for controlled operation.

  • Reliable Endurance: 81kWh battery delivers up to 35km range on a single charge, suitable for multi-shift work.

Main Specification

Model

PXAGV30B

Overall Dimensions

10000mm (L)  × 2850mm (W) × 3850mm (H)

Maximum Speed

5.4km/h (Automatic operation)

Maximum Gradeability

7°, fully loaded

Maximum Load

30T

Minimum Turning Radius

10m

Superstructure Type

Automatic Wing Opening Box

Navigation Method

GNSS + IMU + Inertial Navigation

Battery Capacity

81kWh

Operating Range

35km
