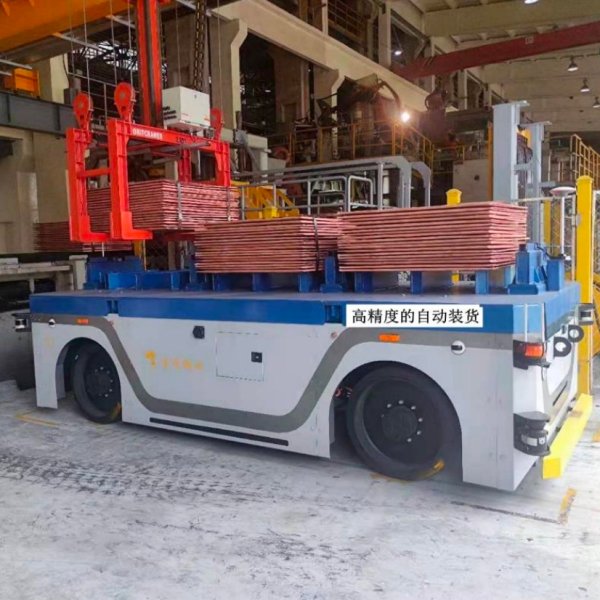

9 Ton Heavy-Duty Outdoor GNSS+IMU Guided Flatbed Automated Guided Vehicle
9 Ton Heavy Load Capacity: Designed for heavy-duty material handling in industrial parks, ports, and logistics yards;
GNSS+IMU Hybrid Navigation: No magnetic tape or QR codes required, ideal for large open outdoor areas;
Rugged & Durable Build: Flatbed design with 56kWh battery, delivering up to 40km range on a single charge;
Efficient Performance: Max speed 15km/h, 7° climbing ability, and 5m turning radius for smooth operation;
24/7 Ready: Low-maintenance, cost-effective.
Products
9 Ton Heavy-Duty Outdoor GNSS+IMU Guided Flatbed Automated Guided Vehicle9 Ton Heavy Load Capacity: Designed for heavy-duty material handling in industrial parks, ports, and logistics yards;
GNSS+IMU Hybrid Navigation: No magnetic tape or QR codes required, ideal for large open outdoor areas;
Rugged & Durable Build: Flatbed design with 56kWh battery, delivering up to 40km range on a single charge;
Efficient Performance: Max speed 15km/h, 7° climbing ability, and 5m turning radius for smooth operation;
24/7 Ready: Low-maintenance, cost-effective.
Main Specification | |
Model | PXAGV09 |
Overall Dimensions | 4590mm (L) × 2200mm (W) × 1200mm (H) |
Maximum Speed | 15km/h (Automatic operation) |
Maximum Gradeability | 7°, fully loaded |
Maximum Load | 9T |
Minimum Turning Radius | 5m |
Superstructure Type | Flatbed |
Navigation Method | GNSS + IMU + Inertial Navigation |
Battery Capacity | 56kWh |
Operating Range | 40km |
