4×4 Off-Road Long-Range Forest Fire Extinguishing Vehicle | High Mobility Dry Fire Suppression Cannon Truck
4×4 special off-road chassis fire suppression vehicle customized for steep mountain and dense forest wildfire emergency.
119mm caliber long-range fire gun delivers 2–6km effective range for precise remote dry powder fire agent delivery.
Fast firing rate of 6–8 rounds per minute with 24㎡ fire coverage per shell for efficient wildfire containment.
Cummins turbocharged engine provides 210kW rated power with strong 60% grade climbing and wide temperature adaptability.
Safe dry powder shell design without explosives and fragments ensures reliable low-temperature and high-altitude fire fighting.

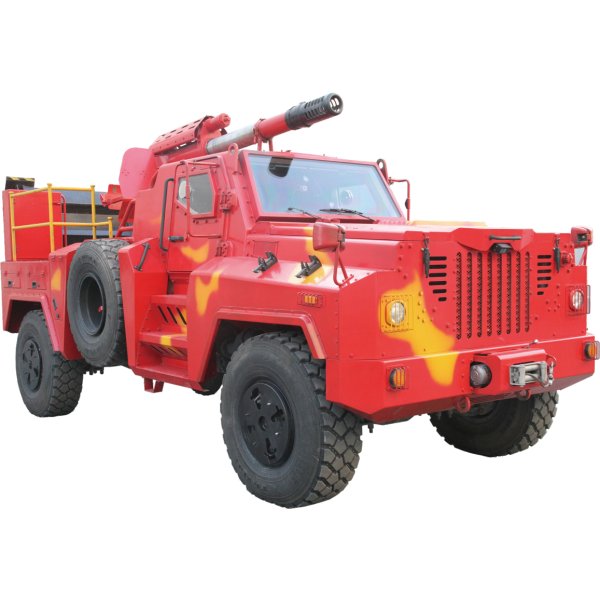

This dedicated forest fire fighting equipment is built on a 4×4 high-mobility special off-road chassis, fitted with a 119mm long-range fire extinguishing gun tailored for steep mountain and dense forest fire conditions. Based on pressure fire suppression principle, it can remotely and accurately launch fire extinguishing shells to put out wildfires.
It adopts a Cummins turbocharged engine with 210kW rated power, maximum speed of 140km/h, maximum climbing gradient of 60%, average road speed of 70km/h and average off-road speed of 40km/h. The vehicle supports cold start and high-altitude self-adaptation, operating normally within -43℃ to +46℃. The fire shells contain no explosives or fragments, with uniquely stable projectile launch structure for safe field fire suppression.
Main Specification |
Effective Range | 2–6 km |
Aiming Mode | Direct sight / indirect sight, ground burst / air burst |
Vertical Traverse Angle | 0° to +55° |
| Horizontal Traverse Angle | -17.5° to +17.5° |
| Firing Rate | 6–8 rounds/min |
| Recoil Force | ≤6.5 T |
| Caliber | 119 mm |
| Ammo Type | Dry powder fire extinguishing shell |
| Fuze Type | Instant trigger or electronic time fuze |
| Fire Coverage Area | 24 ㎡ per shell |
| Muzzle Velocity | 420 m/s |
