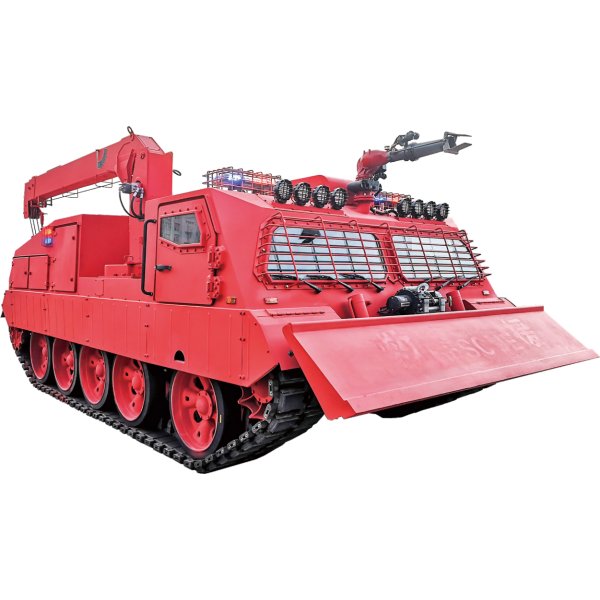

High Protection Tracked Urban Special Fire Truck | Armored All-Terrain Fire Rescue Vehicle With Bulldozer & Crane
Heavy-duty tracked armored fire vehicle built on military tank chassis with full anti-blast and anti-collision protection for dangerous fire scenes.
Multi-functional integrated design equipped with front bulldozer blade, 4-ton lifting crane and self-rescue traction winch.
High-performance fire suppression system delivers 70m water jet and 65m foam jet with large-capacity water & foam storage tanks.
Outstanding off-road mobility with 28° climbing angle, 2000mm trench crossing and low turning radius for collapsed complex terrain.
Fully enclosed armored cabin with explosion-proof observation windows and military-grade air conditioning protects two operators in harsh disaster environments.
Special Truck
High Protection Tracked Urban Special Fire Truck | Armored All-Terrain Fire Rescue Vehicle With Bulldozer & Crane
Heavy-duty tracked armored fire vehicle built on military tank chassis with full anti-blast and anti-collision protection for dangerous fire scenes.
Multi-functional integrated design equipped with front bulldozer blade, 4-ton lifting crane and self-rescue traction winch.
High-performance fire suppression system delivers 70m water jet and 65m foam jet with large-capacity water & foam storage tanks.
Outstanding off-road mobility with 28° climbing angle, 2000mm trench crossing and low turning radius for collapsed complex terrain.
Fully enclosed armored cabin with explosion-proof observation windows and military-grade air conditioning protects two operators in harsh disaster environments.
This high-protection tracked special fire vehicle adopts heavy armored tank chassis, integrating bulldozing, obstacle clearing, lifting traction and long-distance fire suppression functions. The fully enclosed armored driving cabin is equipped with explosion-proof observation windows to shield crew from impact and shock waves.
It carries large-capacity water and foam tanks matched with long-range fire monitors, capable of remote fire extinguishing. The off-road tracked structure realizes strong trafficability on collapsed roads, mountainous zones and muddy disaster sites, suitable for urban complex accident, chemical fire and post-disaster emergency fire rescue operations.
Main Specification |
Unladen Weight | ≤32T |
Full Load Weight | ≤36T |
Rated Crew | 2 persons |
| Overall Dimension | Length ≤7850±100mm; Width ≤3360±100mm; Height ≤2740±100mm |
| Approach Angle | ≥26° |
| Fuel Tank Capacity | ≥400L |
| Max Travel Speed | 40–50km/h |
| Average Speed (Pavement) | 30–33km/h |
| Average Speed (Unpaved Road) | 20–25km/h |
| Max Gradeability | ≥28° |
| Max Lateral Tilt Angle | ≥17° |
| Max Trench Crossing Width | ≥2000mm |
| Min Turning Radius | ≥4500mm |
| Chassis | Heavy-duty tracked tank chassis |
| Superstructure | Fixed armored cabin with anti-blast & anti-impact performance |
| Lifting Arm | 4-ton lifting crane |
| Winch | Power take-off traction winch |
| Water Monitor | Range: Water ≥70m, Foam ≥65m; Flow Rate ≥50 L/s |
| Water Pump | Flow ≥65 L/s, with external water suction function |
| Water Tank Volume | ≥1.5m³ |
| Foam Tank Volume | ≥1.2m³ |
| Bulldozer Blade | For debris clearing & road grading |
| Front Winch | Light traction winch, traction force 3T |
| Double-Layer Window | Explosion-proof & anti-impact observation glass |
| Air Conditioner | Military vehicle air conditioner |
