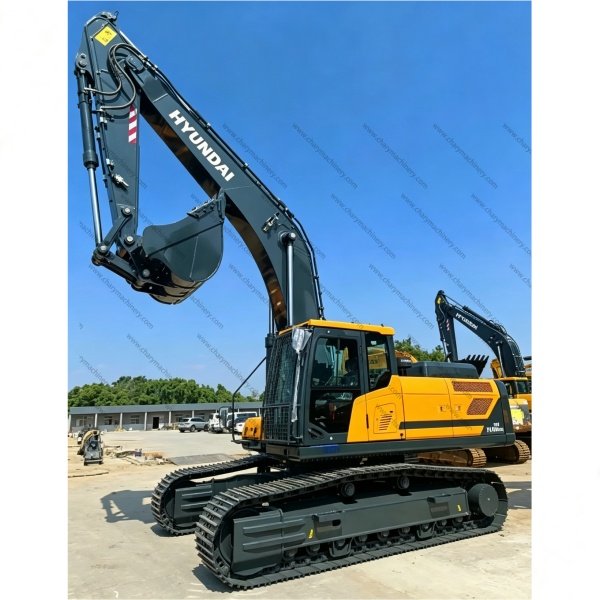

Hyundai HX 220HD 22 Ton Hydraulic Crawler Excavator
The Hyundai HX220HD is a 22-ton class medium hydraulic crawler excavator designed for earthmoving, trenching, digging and loading in general construction, road works, landscaping and quarry applications. Powered by a Tier 2 Hyundai QSB6.7 diesel engine delivering 136.2 kW (185.18 HP), it combines a 1.2 m³ bucket, 21,400 kg operating weight, strong digging force and fuel-efficient hydraulics — a reliable, cost-effective choice for contractors and fleet owners worldwide.
Hyundai HX220HD 22 Ton Hydraulic Crawler Excavator
The Hyundai HX220HD is a 22-ton medium hydraulic crawler excavator for construction, earthmoving and quarry work. Powered by a Hyundai QSB6.7 diesel engine delivering 136.2 kW (185.18 HP), it offers a 1.2 m³ bucket, 21,400 kg weight, strong digging force and fuel-efficient hydraulics — a reliable, cost-effective excavator worldwide.
| Hyundai HX220HD 22 Ton Hydraulic Crawler Excavator | ||
| Dimensions | Shipping Length Of Unit | 9650mm |
| Shipping Height Of Unit | 3200mm | |
| Max Cutting Height | 9140mm | |
| Max Loading Height | 6330mm | |
| Max Reach Along Ground | 8960mm | |
| Max Vertical Wall Digging Depth | 5280mm | |
| Max Digging Depth | 5820mm | |
| Ground Clearance | 480mm | |
| Height To Top Of Cab | 3000mm | |
| Width To Outside Of Tracks | 2740mm | |
| Length Of Track On Ground | 4440mm | |
| Tail Swing Radius | 2840mm | |
| Removal Counterweight Clearance | 1060mm | |
| Undercarriage | Track Gauge | 2390mm |
| Shoe Size | 900mm | |
| Number Of Carrier Rollers Per Side | 2 | |
| Max Travel Speed | 5.5km/h | |
| Ground Pressure | 33.38kPa | |
| Number Of Track Rollers Per Side | 9 | |
| Number Of Shoes Per Side | 49 | |
| Drawbar Pull | 198.08kN | |
| Engine | Engine Model | QSB6.7 |
| Net Power | 129.1kw | |
| Gross Power | 136.2kw | |
| Power Measured | 1950rpm | |
| Max Torque | 840.7Nm | |
| Aspiration | Turbocharged | |
| Displacement | 6.8L | |
| Torque Measured | 1500rpm | |
| Operational | Operating Weight | 23640kg |
| Fuel Capacity | 400L | |
| Cooling System Fluid Capacity | 40L | |
| Hydraulic System Fluid Capacity | 275L | |
| Operating Voltage | 24V | |
| Engine Oil Capacity | 23L | |
| Swing Drive Fluid Capacity | 6.2L | |
| Alternator Supplied Amperage | 95amps | |
| Hydraulic Pump Flow Capacity | 221.9L/min | |
| Swing Mechanism | Swing Speed | 10.8rpm |
| Buckets | Maximum Bucket Capacity | 1m3 |
